VGA Video Extender over CAT.x
EV-214
HDB15 VGA Extender Splitter over CAT5, Local View, EQ, EV-214

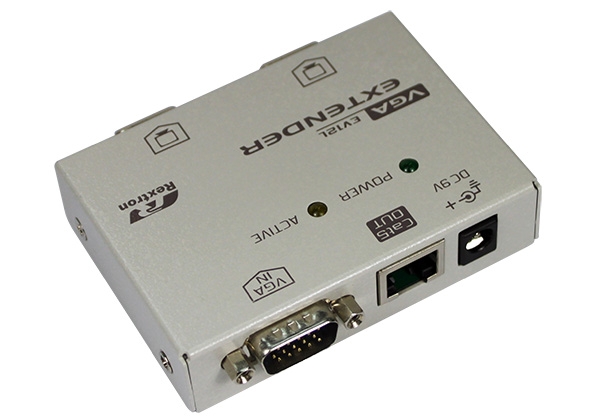

EV-214 = EV-12L (Transmitter) + EV-02R (Receiver)
HDB15 VGA Extender Splitter, the “VGA CAT5 Extender” pair, EV-214 enables you to transmit VGA signals with the resolution up to 1280 x 1024, featuring common mode noise suppression circuit for superb VGA quality via inexpensive unshielded twisted pair CAT5 cables. The Local Unit EV-12L duplicates the input signal for local use and transmits the VGA signals to a Remote Unit EV-02R.
Upon receiving the VGA signal via a CAT5 connection, the Remote Unit broadcasts the signal to two VGA outputs. EV-214, HDB15 VGA Extender Splitter, provides a convenient Gain (equalization) control selector on the Remote Unit which is designed for optimum signal clarity according to the length of the CAT5 cable. Better yet, using the Repeater unit in between can transmit the VGA signal up to 250 meters away!
- Connect the Extender pair via Category 5 / 5e / 6 UTP cable
- Consist of 1 Base unit for distributing 1/4 ports through Cat5 and 2 VGA ports for local display
- No software or drivers required and easy to install
- Supports VGA, SVGA, and Multisync monitors
- Transmit superb quality of VGA signals via CAT5 cables
- Gain (equalization) control selector designed for optimum signal clarity
- Extends video signal up to 150m
- Using repeaters along your path to connect additional displays or using a receiver to connect directly to a remote display
- The repeater unit can transmit the VGA signal up to 250 meters away
- Support the resolution of 1280 x 1024 with the high-quality CAT5 cable
- Ideal for public broadcasting, exhibits, retail stores, courtrooms, stock tickers, bus stations, etc.
Model Name |
EV-02R + EV-12L |
Video Resolution (max.) |
1280 X 1024 |
VGA Input / Output |
HDB15-M x1 / HDB15-F x2 |
Cable Between Units |
CAT5, CAT5e or CAT6 |
Max. Distance |
150 Meters |
Status Indicators |
Power (Green) x 1, Active (Yellow) x 1 |
Power Supply |
DC 9V, 600mA |
Dimensions H x W x D (mm) |
20 x 84 x 69 |
