USB 2.0 Extender US Decora Type Wall plate over CAT.x Cable (up to 100M)
USBX-MA215WW
Single Gang Wallplate USB 2.0 Extender over CATx, 100M, USBX-MA215WW
USBX-MA215WW = USBX-A215WL(Host)+ USBX-A215WR(Device)
USBX-MA215WW, Wallplate USB 2.0 Extender, extends 2 x USB 2.0 signals up to 100M over a single CAT.x cable. Wallplate USB 2.0 Extender is compatible with Windows, MAC and Linux OS. There is no need to install software or driver, just plug and play. Extender unit provides a durable, high quality connection, complies with USB 2.0 specifications, and is downward compatible with USB 1.1 and USB 1.0 devices, which ensures reliable data communication.
Wallplate USB 2.0 Extender, USBX-MA215WW, consists of a Local (USB Host) and a Remote (USB Device) unit and the Remote unit equips Terminal Block DC 12~48V which ensures steady and reliable long distance power supply. The Remote USBX-A215WR provides DC 5V, 500mA to each USB-A port and the power supply is not required on the Local side when the Local unit can draw sufficient power from the Host Device (PC/ Laptop).
Rextron offers a series of USB 2.0 extender family products, and the box type and wall plate type family products are interoperable which means that it allows a box type transmitter to be linked to a wall plate type receiver via CATx cable, and vice versa. The exquisite and compact design of Rextron Single Gang/ Dual Gang Wall plate Extender series provide an easy surface/wall mounting, allowing users to conceal the cable or other installed equipment and place the connected units easily.
- Allows Reliable and High-Speed USB 2.0 Remote Access over a 100M ( 330ft ) CAT.x Cable
- US Decora Wall Plate Design Features Small Outline and Decent Looking
- 2 USB-A Ports Provided on The Receiver
- USB Hubs May Be Applied to Increase Port
- Compatible with Keyboard, Mouse, Touch Panel, and Wireless HID Devices
- Interoperability among U.K/US/Germany Wall Plates and Box-Type
- Suitable for USB Storage and Other Devices
- Support Most USB Cameras Up to 1080P
- Plug-and-Play, No Software or Driver Required
- Ideal for Office, Education, Government, House of Worship, Home Entertainment
|
Model Name |
Local Unit |
Remote Unit |
|
USBX-A215WL |
USBX-A215WR |
|
|
Input Port |
USB-B x 1 (Host) |
RJ-45 x 1 |
|
Output Port |
RJ-45 x 1 |
USB-A x 2 (Device) |
|
LED Indicator |
1 |
1 |
|
Extension Distance (Max.) |
100 M |
100 M |
|
Enclosure |
Metal / Plastic |
Metal / Plastic |
|
Power Supply |
DC 5V (From Computer) |
DC 12~48V ( Terminal Block) |
|

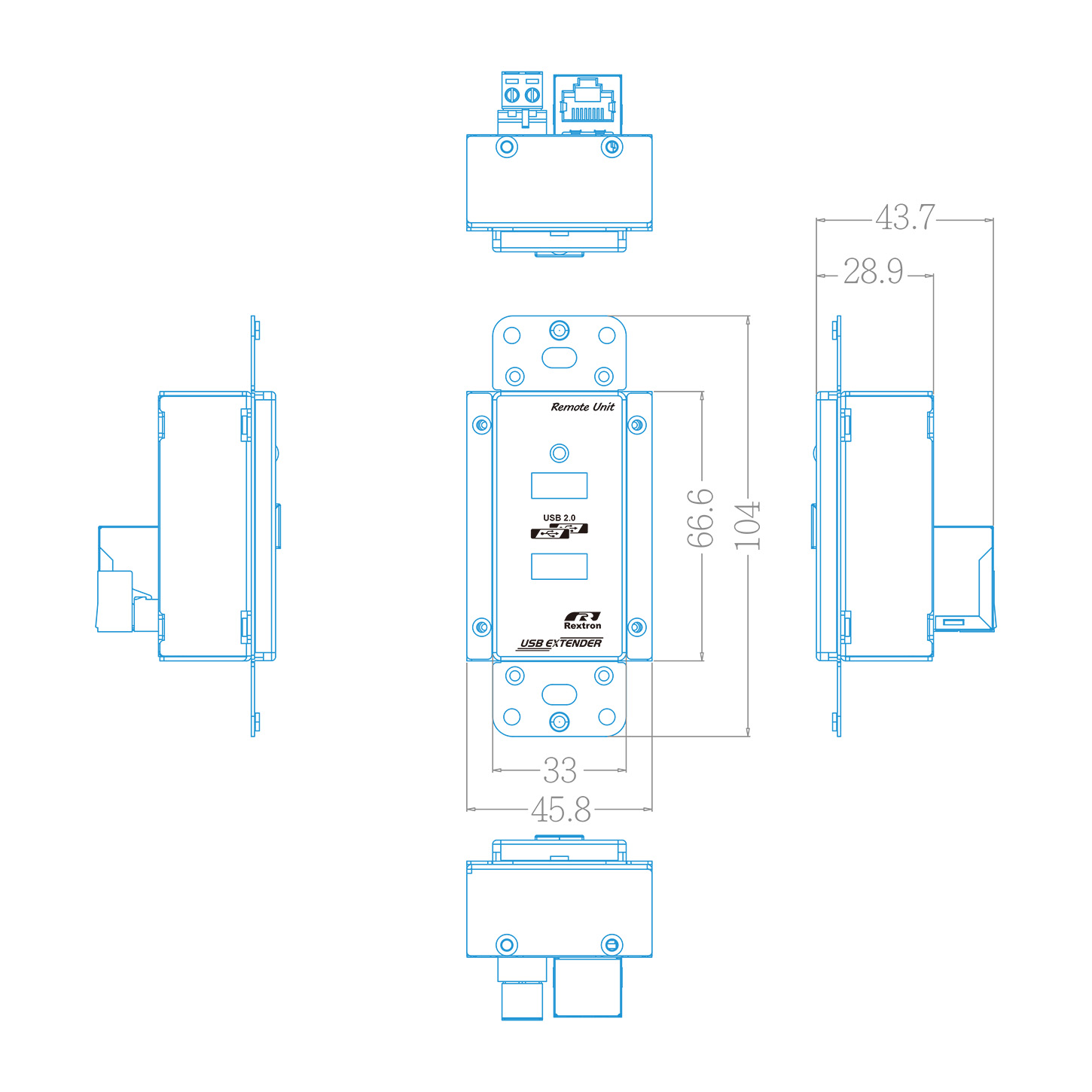

H x W x D (mm) |
105 x 45 x 46 | 105 x 45 x 46 |
|
Weight (g) |
94 ~ 104 |
|
