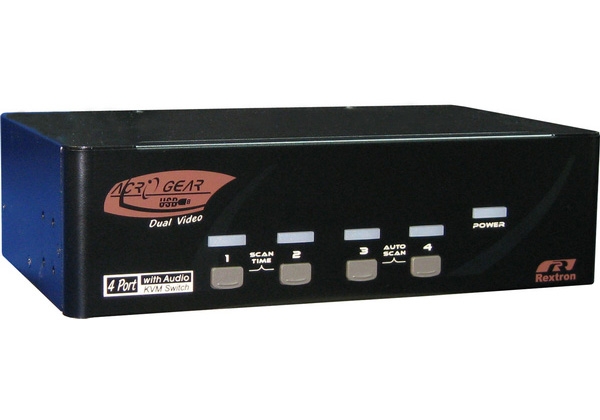

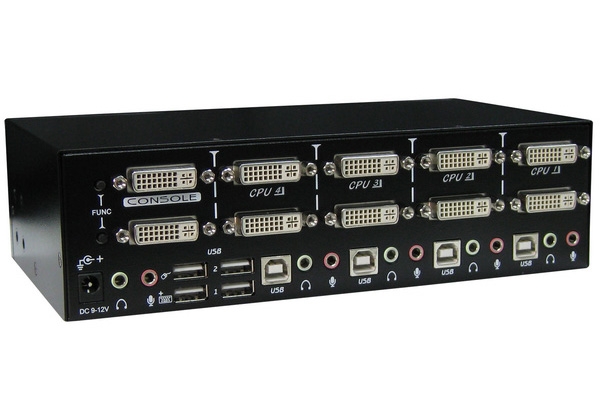

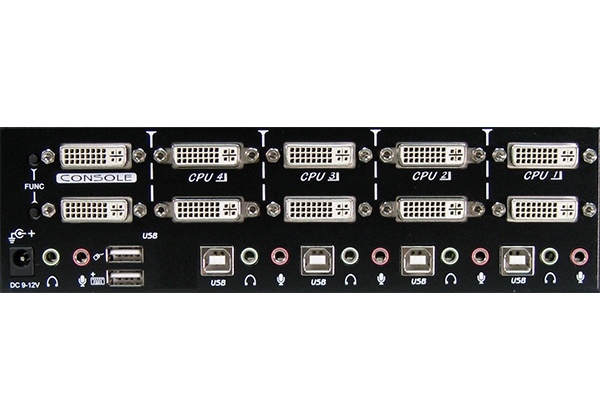

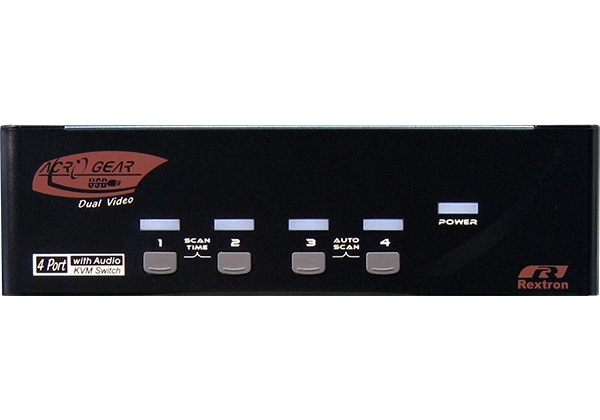

4 Ports Dual Video DVI KVM Switch with USB 2.0, Audio, Hotkey Control
DADG-124
Leading OEM/ODM DisplayPort 1.4 KVM Manufacturer
For years, we kept pace with and provided various design houses and OEM customers with quick and reliable manufacturing and serving. These favorable products including KVM extender, Video extender and USB KVM switch have gained international acclaim and are now widely used in businesses, factories, industrial operations, militaries, government installations, schools and private residences. As an ISO9001:2015 registered company, quality assurance is our first priority. Rextron keeps strict manufacturing process constantly and source more RoHS and REACH compliant materials from all over the world.
What is KVM Switch ?
KVM stands for “Keyboard, Video, and Mouse”. KVM allows you to access multiple computers or servers via only one set of Keyboard, Mouse and Monitor. Computers may be selected by pressing the KVM push button directly, by issuing hotkey commands or by activating OSD window. KVM switch is a compact size pure hardware solution plug-and-play system without any driver or software installation. It simply reduces redundant cables and encourages a neat and tidy working environment, saving you space, time, equipment, and money.
- Support 2 monitor displays excellent for Gamers and CAD/CAM designers
- Support USB Console
- Support high resolution video up to UXGA (1600 x 1200) / Full HD (1920 x 1080) / WUXGA (1920 x 1200)
- 4 computers share the different USB peripherals (KB + MS + USB Devices)
- Unique Tracking System enables the USB (or Audio) devices to operate independently
- Front panel pushbuttons and hotkey functions for easy computer selection
- Support keyboard and mouse plug-n-play
- Buzzer sound for computer switching confirmation
- Selectable Scan Time interval
- No software required
- Support Windows and Mac host systems
- Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, Full HD, WQXGA system
Model Name |
DADG-124 |
Input Port |
DVI x 8 (Dual-View x 4 PCs) |
Output Port |
DVI x 2 (Dual-View) |
Video Resolution (Max.) |
1920 X 1200 |
Push Buttons |
Port Selection x 4 |
LED Indicator (Power / Status) |
Computer Ready x 2 (Green) |
Automatic scan interval |
3, 8, 15, 30 seconds |
Enclosure |
Metal |
Power Supply |
DC 9~12V |
H x W x D (mm) |
X |
Weight (g) |
X |
