Product Name : 4 Ports KM Switch with USB 3.2 Gen 1, Mouse Roaming Function, Hotkey Control
Product No : USW-KM304
Read More
Product Description

USW-KM304 KM Switch is pure hardware design, built-in 4 preset screen layout, no software or driver required, compatible with Windows and Mac system.

  • Allow 4 Computers to Share USB Peripherals ( USB HID x 3 + USB 3.2 Gen 1 x 2 )
  • Mouse Roaming functionality makes perfect operation experience by simply moving the mouse cursor across screen border selecting the previous /next PC
  • Flexible Preset Screen Layout of 1 x 4, 2 x 2, 1 + 3 or 4 x 1.
  • Mouse Absolute Coordinate Technology Enables Seamless Switch among PCs and Adapts to All Kinds of Mouse Sensitivity


  • USB 3.2 GEN 1
  • USB2.0
  • USB HID
  • Roaming Mouse

KM Switcher, USB Switch with USB HID, USB 3.0, Audio, and Hotkey Switching, Mouse Roaming function, USW-KM304

KM Switcher, USW-KM304, allows user to share one set of keyboard, mouse, Audio, and USB peripherals among 4 USB Computers. Simply press one button or issuing hotkey commands to select your desired PC for access control.



A unique tracking system enables the USB devices to be operated independently or concurrently. For example, USB tracking function allows KM switcher (USB Switch) users to decide whether or not the USB devices (USB Flash Drive, Printer, and Scanner) switching follows the PC ports switching. Dedicated USB 3.0 ports designed on the front and rear side of the KM switcher unit suitable for both long-term and temporary USB peripherals access allows users to attach or detach USB devices with ease. It is useful if you want to have files transferring from one particular computer while operating another computer. USW-KM304, KM Switcher, The Real-time USB HID ports give you amazing switching experience and the USB 3.0 ports provide excellent I/O speed.



Audio function allows KM Switcher (USB Switch) users to decide whether or not the audio ports switching follows the USB Computer ports switching. It is useful if you want to listen to audio signals from one particular audio port while operating another computer.

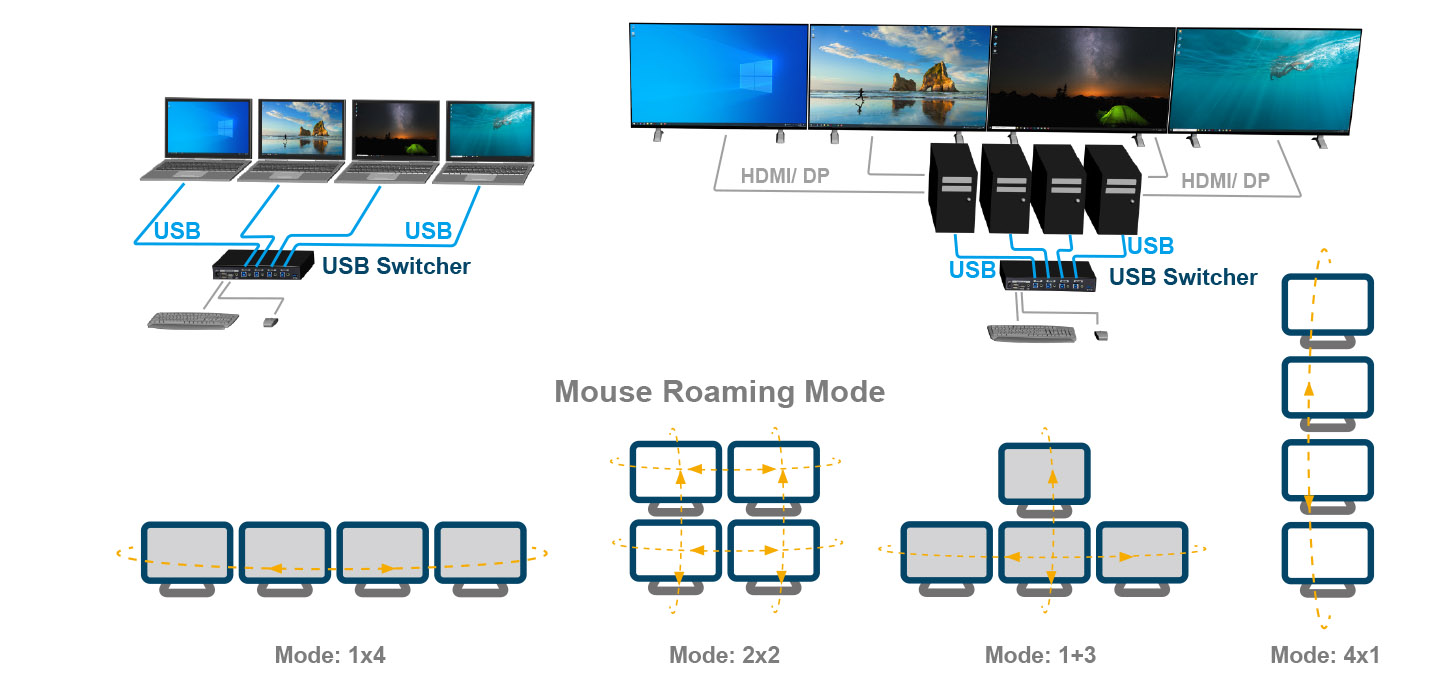

Mouse Roaming Functionality with Flexible Preset Screen Layout
The Mouse Roaming Switching Function allows users to switch among computers by moving the mouse cursor across the screen borders which is a more effective and modern way of computer switching. Users can easily switch the PC ports by moving the mouse cursor crossing the border of monitors smoothly and seamlessly, which allows users to switch the Keyboard, Mouse, Audio, and USB devices to another PC without hotkey or button pressing.
NOTE: 4 preset screen layouts are available for 1 x 4, 2 x 2, 4 x 1 or 1+3 Video Wall setup.

USB Switch-Mouse Roaming

Rextron KM switch with USB Hub supports not only keyboard mouse operation but also USB 3.0 peripherals sharing. USB HID ports support Mouse Absolute Coordinate Technology enables seamless switch among PCs and adapts to all kinds of Mouse Resolution. The 4 Ports USB Switcher is a compact size pure hardware solution plug-and-play system without any driver or software installation supporting most of the mainstream operating systems, such as Windows, Mac, and Linux. It simply reduces redundant cables and encourages a neat working environment.

  • Allow 4 Computers to Share USB Peripherals( USB HID x 3 + USB 3.2 Gen 1 x 2 )
  • Mouse Roaming functionality makes perfect operation experience by simply moving mouse cursor across screen border selecting the previous /next PC
  • Flexible Preset Screen Layout of 1 x 4, 2 x 2, 1 + 3 or 4 x 1.
  • Support Keyboard and Mouse Plug-n-play without Drivers
  • Multiple Control Methods Enable Smooth Switch
  1. Front Panel Push Button Control
  2. Mouse Roaming Control
  3. Hotkey Control
  • Support Windows, No Software Required
  • Allow Usage of Different Versions of Windows Simultaneously
  • Grant Access to Full Processing Power of 4 PCs Simultaneously ( Perfect For Massive Calculations )
  • Front USB Port Design for Easy Access
  • Mouse Absolute Coordinate Technology Enables Seamless Switch among PCs and Adapts to All Kinds of Mouse Sensitivity

Model Name

USW-KM304

  Computer/Server Ports (input)

  USB 3.2 Gen 1 Type B x 4
  Audio in x 4

  Console Ports (output)

  USB 3.2 Gen 1 Type A x 2 (Front & Rear)
  USB Type A x 3 (USB HID)
  Audio out x 1

  Push Buttons

  4 (For Selection)

  LED Indicator
  (Power / Status)

  4 Computer Selected LED, (Red)
  4 Computer Ready LED, (Blue)

  Compatibility

  USB 3.2 Gen 1/ USB 2.0 / 1.1

  Enclosure

  Metal

  Power Supply

  DC 9~12V

  H x W x D (mm)

  34 x 220 x 130

  Weight (g)

  820



proimages/Connection_/USB_KM_Switch/CP-USW-KM304.jpg

proimages/Tech/Mouse_Roaming_Presets_4-Port.jpg
