4 Ports 4K@60 HDMI Seamless KVM Switch with Audio, USB 3.2 Sharing, EDID Management, Virtual Com, Serial and Keypad Control, QSSM-3114

Product Name : 4 Ports True 4K HDMI 2.0 KVM Switch with Seamless Switching, Serial Control, Scaler, Hotkey Control

Product No : QSSM-3114

Allows 4 Computers Sharing 1 Set of KVM Console
Most Popular Resolution Supported Up to 4K@60Hz & 16:9 / 21:9 / 32:9 Aspect Ratios
Seamless Switching Grants the Best Productivity
HDCP 2.2 / 1.4 Compliance Ensures Uninterrupted Video Playback
HDR10 Compliance Gives the Best Visual Experience
Continuous & Unified Video Output Minimizes the Start-Up Procedure
Serial Control Facilitates Industrial Control Purposes (8-Bands Baud Rate Selectable )
Keypad-IN Supports Wired & Wireless USB Keypad, and Allows Controlling the KVM Remotely

Add to Compare

Q'ty :

Inquiry

4 Ports 4K@60 HDMI Seamless KVM Switch with Audio, USB 3.2 Sharing, EDID Management, Virtual Com, Serial and Keypad Control, QSSM-3114

Seamless KVM Switch, QSSM-3114, allows users to monitor and manage 4 computers, and enables asynchronous audio switching and USB 3.2 peripherals sharing. You can easily switch 4 computers via front panel push buttons, hotkey control, keypad control, and serial control. The best zero latency KVM switcher QSSM-3114 combines HDMI video stream, 3.5mm Audio, and USB 3.0 Hub in a compact design to keep your desk clutter free and allows you to be more productive.

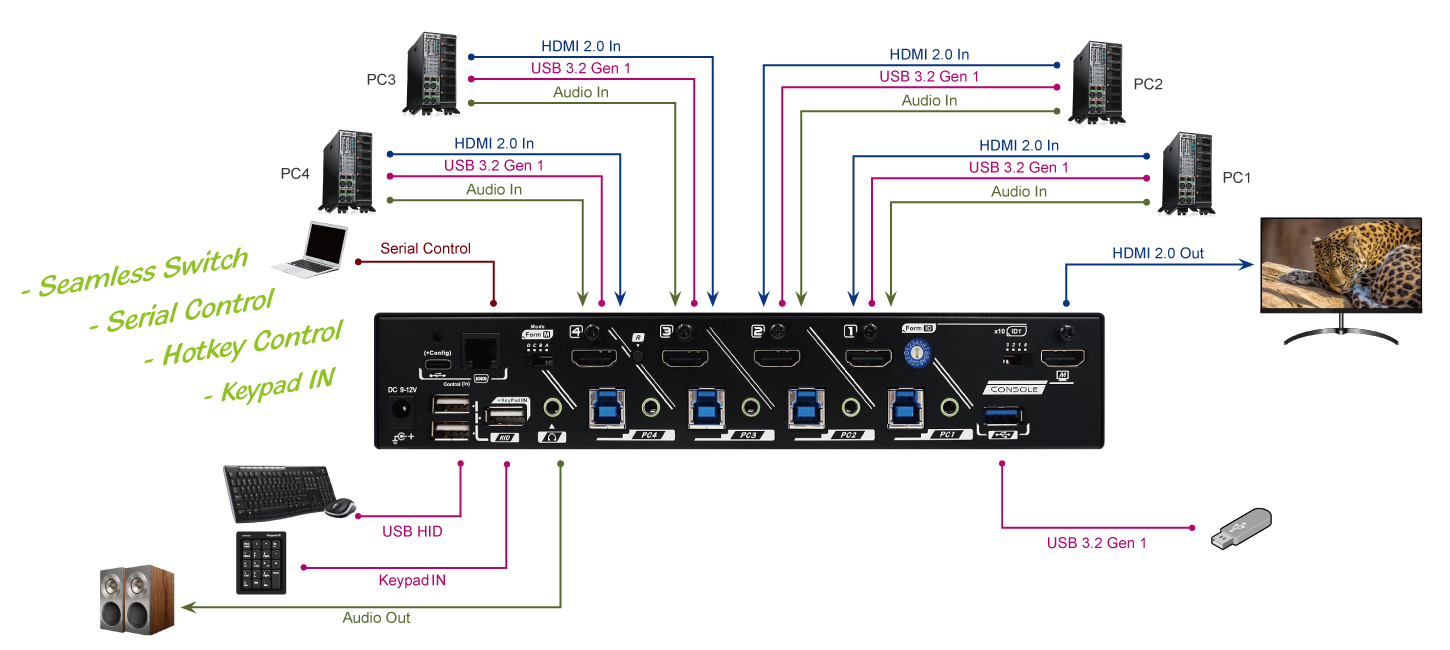

Seamless KVM Switch-IO

Features a built-in USB HID & USB 3.0 Hub

Rextron KVM USB Hub supports USB peripherals sharing without any software or driver installation. The Real-time USB HID ports give you an amazing seamless HID switching experience and the USB 3.2 Gen 1 port provide excellent 5 Gbps I/O speed. USB 3.0 Hub is Mac, Linux, Chrome, and Windows 8 (or later version) supported.

Audio Function

A unique tracking system enables the Audio devices to be operated independently or concurrently. For example, Audio tracking function allows Seamless KVM Switch users to decide whether or not the audio switching follows the computer switching. It is useful for users to enjoy the wonderful music of another PC while working on the current computer.

Auto Scan & Manual Scan

To monitor the real-time computer status of each PC port, Rextron Seamless KVM switch supports Auto Scan function with selectable scan rate adjustment to automatically scan power-on computers sequentially at a fixed time interval, and also provides Manual Scan function, via keyboard clicking, to manually select the computer one after another.

Enables stable EDID transmission and provides enormous preset EDIDs in memory bank

Rextron Seamless KVM switch QSSM-3114 provides 1 auto + 63 EDID preset settings and supports monitors with 16:9 / 21:9 / 32:9 aspect ratios, and the unique EDID configuration technology supports unified and continuous video streaming, which ensures the optimized video output and prevents video flickering or black-screening issues when switching KVM Host Ports.
Seamless KVM Switch-EDID Scaler

Unique Video Scaling Function

QSSM-3114 provides 4-stage image scaler settings to select and ensure the image is output in native resolution, customized resolution, or a resolution limited to 4K/1080p. With the aid of Hotkey, it also provides support and compatibility for 16:9, 21:9, and 32:9 screen resolutions.

Serial Control (RS-232 & Virtual Com)

Built-in RJ-11 serial interface (for DB9 to RJ11 cable) and USB-C Virtual Com port provide users easy and friendly serial connection. KVM Switch’s built-in serial interface allows users to control the unit through a PC, serial controller devices or home theater system. Function of switching via serial command on Rextron Seamless KVM switch QSSM-3114 is especially designed for industrial control and communication purposes to enhance the functionality of KVM Switch and serial devices management.
Seamless KVM Switch-Control Function

Keypad-IN Function

The latest KVM maneuvering functionality, Keypad-IN function, is the most cost-effective and user-friendly way to perform KVM Control via wired or wireless Keypad. Just plugging the inexpensive easily bought wireless Keypad into the specific USB hub port of the KVM switch users can enjoy all the KVM control function remotely.

No Software or driver required for operation
KVM PC port switching via Standard Numeric Keypad
Every KEY of the keypad can be customized with specific command line (Contact Rextron for Customization)

Allows 4 Computers Sharing 1 Set of KVM Console
Most Popular Resolution Supported Up to 4K@60Hz & 16:9 / 21:9 / 32:9 Aspect Ratios
Seamless Switching Grants the Best Productivity
HDCP 2.2 / 1.4 Compliance Ensures Uninterrupted Video Playback
HDR10 Compliance Gives the Best Visual Experience
Continuous & Unified Video Output Minimizes the Start-Up Procedure
Flexible Control Methods Suits Variable Scenarios :

Push Button
Keyboard Hotkey
Serial Control
Keypad-IN Control

Serial Control Facilitates Industrial Control Purposes (8-Bands Baud Rate Selectable )
Keypad-IN Supports Wired & Wireless USB Keypad, and Allows Controlling the KVM Remotely
DP Model Equiped with an Extra HDMI Output ( QSSP-3114 )
Output Scaling Function Facilitates Connection to Projector / KVM Extender / Video Extender

Model Name	QSSM-3114
Computer/Server Ports (input)	HDMI 2.0 x 4 (Single Video x 4 PCs) USB 3.2 Gen 1 Type B x 4 3.5mm Speaker Jack x 4
Console Ports (output)	HDMI 2.0 x 1 USB 3.2 Gen 1 Type A x 1 (Rear) USB HID Type A x 2 (Rear) USB HID Type A x 1 (Rear) ( Dedicated interface for KeyPad ) 3.5mm Speaker Jack x 1
Video Resolution (Max.)	3840 x 2160@60Hz ( 4:4:4 ) ( 16:9 ) 2560 x 1440@60Hz ( 4:4:4 ) ( 16:9 ) 1920 x 1080@60Hz ( 4:4:4 ) ( 16:9 ) 3840 x 1600@60Hz ( 4:4:4 ) ( 21:9 ) 3440 x 1440@60Hz ( 4:4:4 ) ( 21:9 ) 2560 x 1080@60Hz ( 4:4:4 ) ( 21:9 ) 3840x1080@60Hz (4:4:4 ) ( 32:9 ) 2048 x 2048@60Hz ( 4:4:4 ) ( 1:1 ) 1536 x 2048@60Hz ( 4:4:4 ) ( 4:3 )
Serial Control	RJ-11 x 1 ( 19200bps ) ( 8-Selections, 9600~115200bps ) USB-C x 1
Push Buttons	Port Selection x 4 Status Function x 1
Control Methods	Keypad-IN / Hotkey / Push Button / Serial
LED Indicator (Power / Status)	PC-Ready / PC- Select x 4 System Status x 1
Unique Functions	Instant switching via standard KeyPad Seamless Switching ( Zero Latency ) Support 16:9, 21:9, 32:9 Displays
HDCP Compliance	HDCP 2.2 & 1.4
HDCP Engine	Yes
Power Supply	DC 9~12V
Operation Environment	0~40°C, Humidity<80%
Storage Temperature	-20~60°C
Enclosure	Metal
H x W x D (mm)	44 x 240 x 160
Weight (g)	1250
