8 Ports VGA Video Extender over CAT.x with Two Local Out
EV-128L
8 Port VGA Extender Transmitter Unit, VGA over CAT5, Splitter, Multi-Drop, Local View, EV-128L

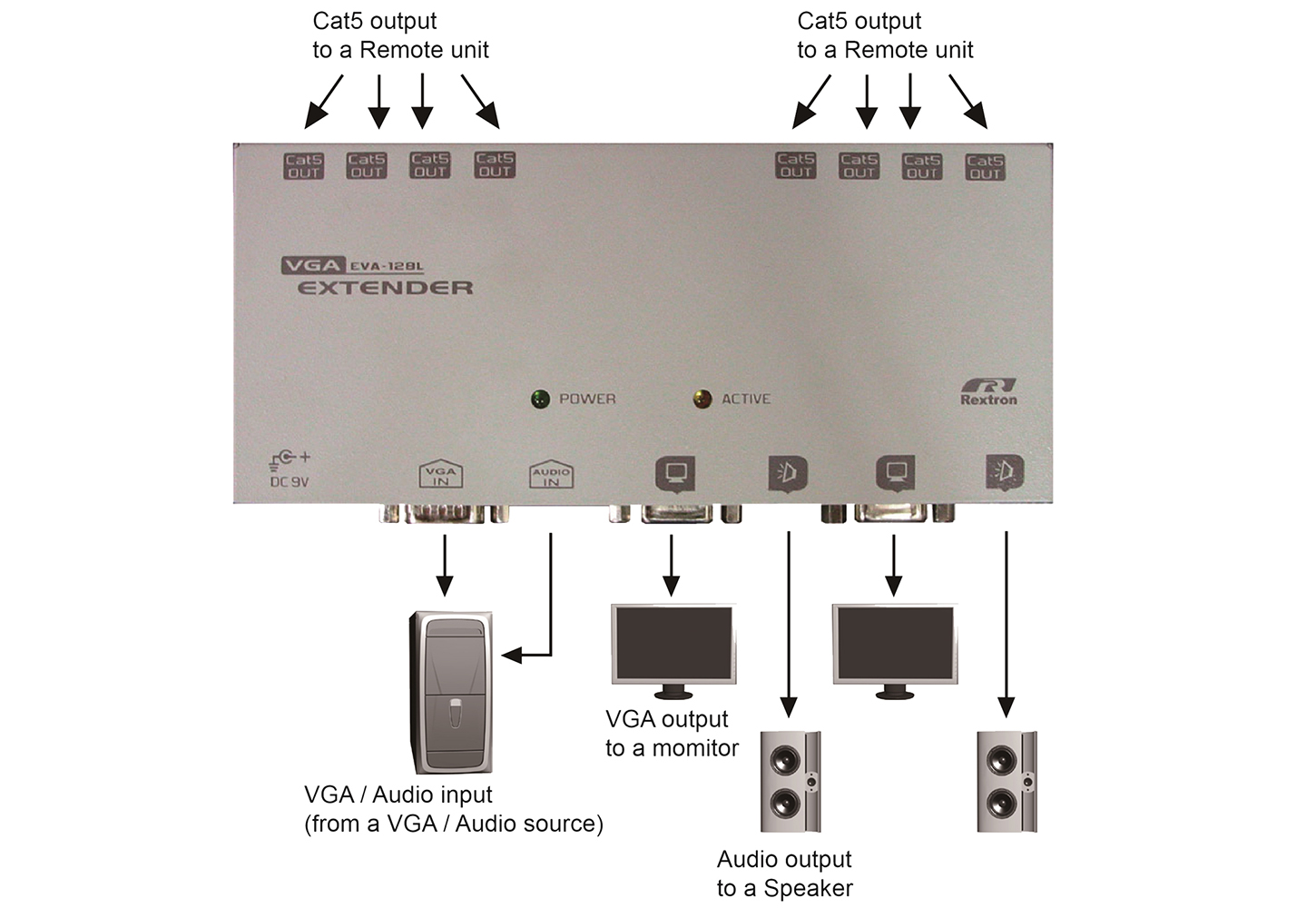

VGA Extender Transmitter, EV-128L, enables you to transmit 8 Video signals with the resolution up to 1280 x 1024, featuring common mode noise suppression circuit for superb VGA quality via inexpensive unshielded twisted pair CAT5 cables. 8 Port VGA Extender Transmitter Unit EV-128L duplicates the input signal for local use and transmit VGA signals to the Remote Unit (purchased separately).
NOTE: Recommendation for the Remote Unit
Receiver Unit: EV-02R
Repeater Unit: EV-021X
- Transmit superb quality of VGA signals via CAT5 cables
- Transmits the VGA signal to a remote unit
- Gain (equalization) control selector designed for optimum signal clarity
- The repeater unit can transmit the VGA signal up to 250 meters away
- Support the resolution of 1280 x 1024 with the high-quality CAT5 cable
- Ideal for public broadcasting, exhibits, retail stores, courtrooms, stock tickers, bus station, etc
|
Model Name |
EV-128L |
|
Video Resolution (max.) |
1280 X 1024 |
|
Input / Output |
RJ-45 / HDB15-F x1 (Female) x 2 |
|
Extension Cable Type |
CAT5, CAT5e or CAT6 |
|
Mzx. Distance |
100 Meters |
|
Status Indicators |
Power (Green) x 1, Active (Yellow) x 1 |
|
Power Supply |
DC 9V, 600mA |
|
Dimensions H x W x D (mm) |
20 x 103 x 69 |
