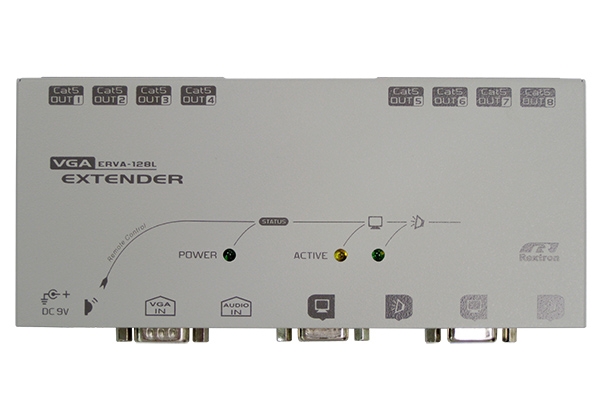

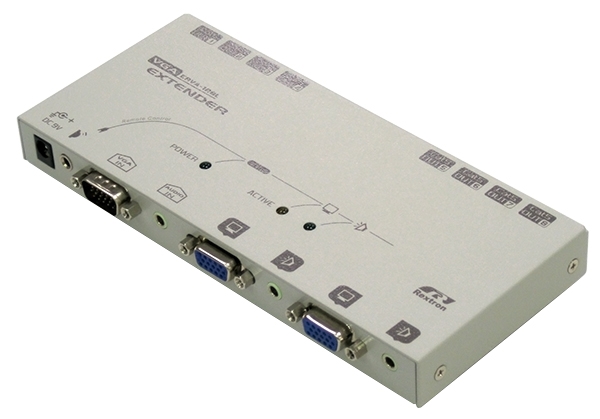

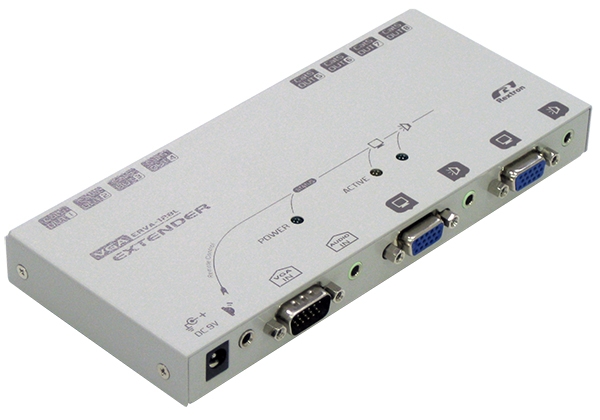

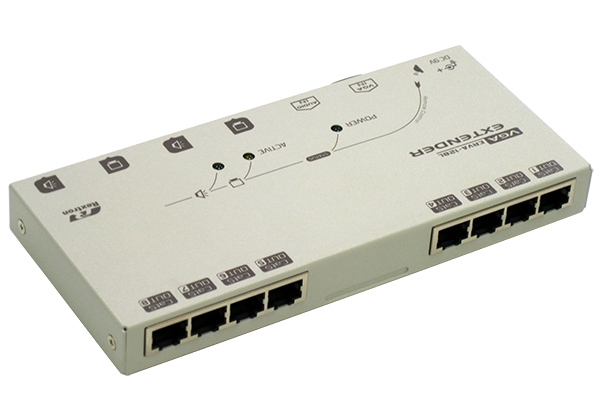

8 Ports VGA Video Extender over CAT.x with IR, Audio and Two Local Out
ERVA-128L
8 Port AV Extender Transmitter Unit, VGA Audio over CAT5, Splitter, Multi-Drop, Local View, IR Control, ERVA-128L
8 Port AV Extender Transmitter, EVRA-128L, enables you to transmit 8 Video and Audio signals with the resolution up to 1280 x 1024, featuring common mode noise suppression circuit for superb VGA quality via inexpensive unshielded twisted pair CAT5 cables. 8 Port AV Extender Transmitter Unit ERVA-128L duplicates the input signal for local use and transmit VGA signals to the Remote Unit (purchased separately).
IR Remote Control
8 Port AV Extender Transmitter, EVRA-128L, enables you to transmit 8 Video and Audio signals with the resolution up to 1280 x 1024, featuring common mode noise suppression circuit for superb VGA quality via inexpensive unshielded twisted pair CAT5 cables. 8 Port AV Extender Transmitter Unit ERVA-128L duplicates the input signal for local use and transmit VGA signals to the Remote Unit (purchased separately).
IR Remote Control
Users can achieve the remote control within the range of 5 meters and switch On / Off the video/audio signals for the selected CAT5 output port, for example, you may turn the monitor in the meeting room Off and leave the monitors hung along the lobby On.
NOTE: Recommendation for the Remote Unit
NOTE: Recommendation for the Remote Unit
Receiver Unit: EVA-02R (1280x1024@150m)
Receiver Unit: EVA-02RPlus (1920x1200@165m)
● Transmits superb quality of VGA+Audio signals via CAT5 cables
● Transmits one video input and displays on 8 different locations
● Transmitter Unit can provide 2 VGA +Audio ports for local display
● Supports the resolution of 1280×1024/1920×1080
● Extends VGA+Audio signal up to 150~250m when combined with Rextron receiver devices
● Support VGA, SVGA and multisync monitors
● Gain (equalization) control selector designed for optimum signal clarity

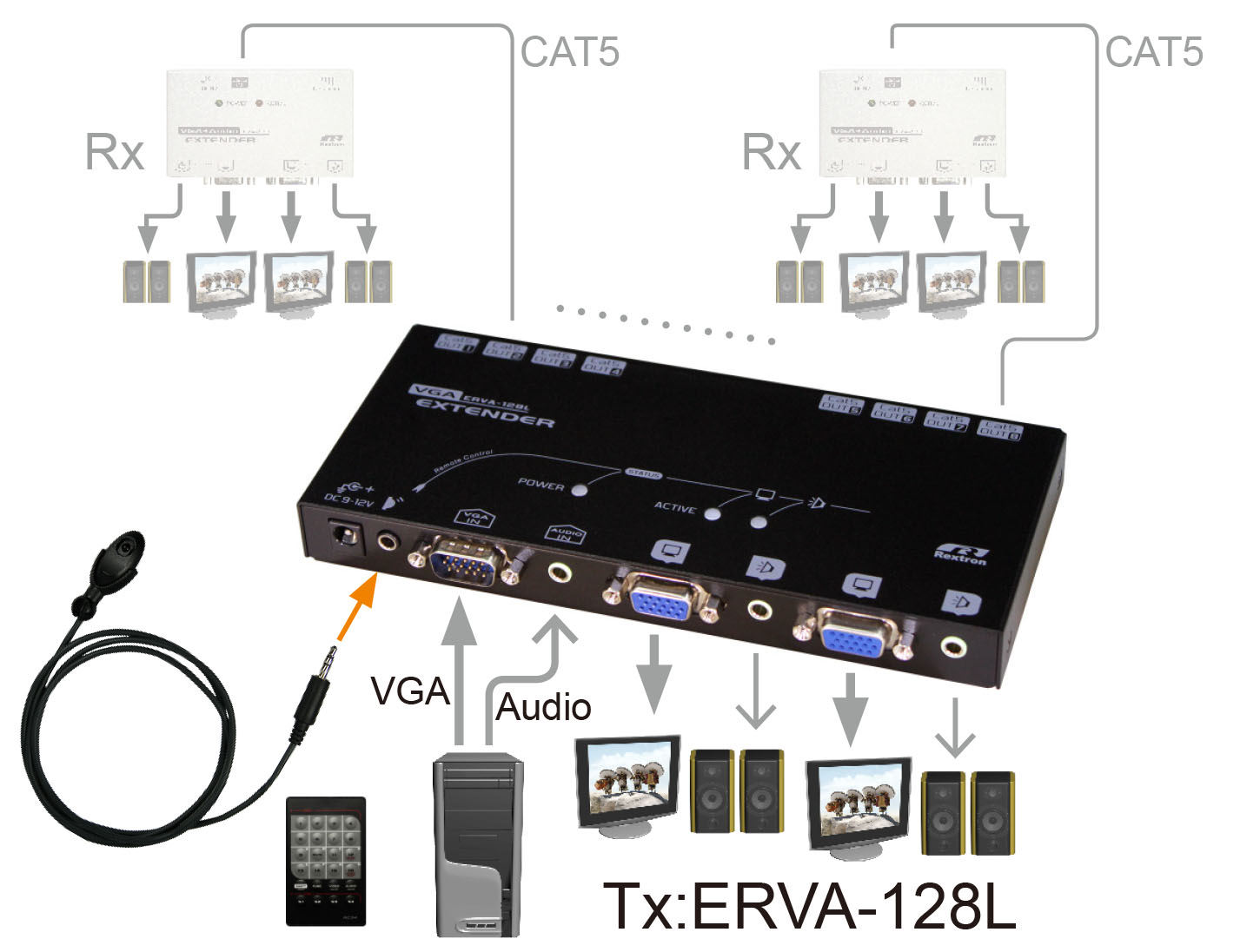

● Using repeaters to connect additional displays or using a receiver to connect directly to a remote display
● The repeater unit can transmit the VGA+Audio signal for another 100 meters
● Support the resolution of 1280 x 1024 @ 150 meters with the high quality CAT5 cable
● Support IR remote control users can achieve the remote job with the range of 5 meters
● Ideal for public broadcasting, exhibits, retail stores, courtrooms, stock tickers, bus station, etc.
● Optional VESA mounting bracket supported (for VESA mountable display attachment)
