8K DisplayPort Ghost, EDID Emulator, EDID Reader, and EDID FEEDER
VDDC-8K40
8K DisplayPort Ghost, EDID Emulator, EDID Reader, and EDID FEEDER, VDDC-8K40
VDDC-8K40, DisplayPort Ghost, plays an EDID emulating role and serves as a communication bridge between the AV source (PC/DVD player) and the AV playback device (monitor/projector). Based on DP 1.4 specification, DP Ghost displays the highest resolution of 7680x4320@30Hz, and supports the latest DP 1.4 technologies such as HDR/ FEC/ SSC/ DSC . The unique EDID export function allows the EDIDs stored in the memory banks to be easily transferred to the computer via a USB-C cable for advanced analysis.
The Rextron VDDC Series Auto EDID function eliminates the complicated process and provides Auto EDID Reading and Auto EDID Copy. This allows beginners to learn painlessly. For advanced users, the EDID emulation function mimics a display connection (virtual display) and force AV source devices to perform all normal operations without an external display.
1+3 EDID Memory Bank (Store EDID information of 4 different monitors)
VDDC-8K40, DisplayPort Ghost, plays an EDID emulating role and serves as a communication bridge between the AV source (PC/DVD player) and the AV playback device (monitor/projector). Based on DP 1.4 specification, DP Ghost displays the highest resolution of 7680x4320@30Hz, and supports the latest DP 1.4 technologies such as HDR/ FEC/ SSC/ DSC . The unique EDID export function allows the EDIDs stored in the memory banks to be easily transferred to the computer via a USB-C cable for advanced analysis.
The Rextron VDDC Series Auto EDID function eliminates the complicated process and provides Auto EDID Reading and Auto EDID Copy. This allows beginners to learn painlessly. For advanced users, the EDID emulation function mimics a display connection (virtual display) and force AV source devices to perform all normal operations without an external display.
1+3 EDID Memory Bank (Store EDID information of 4 different monitors)

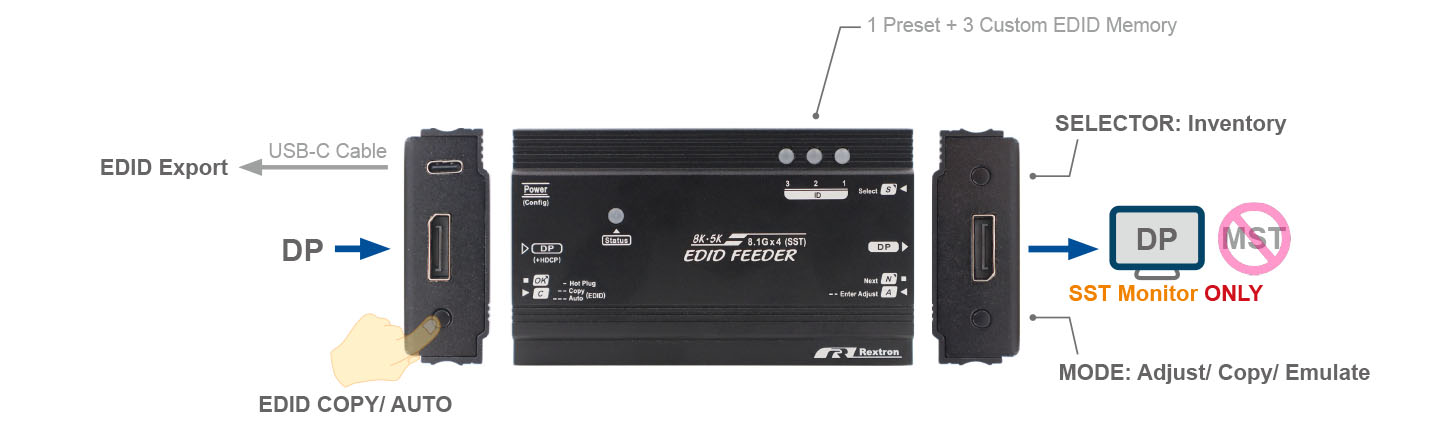

The VDDC-8K40 has four sets of memory banks (one preset and three custom EDIDs) for EDID settings, including EDID reading, copy, and emulation procedures. The DisplayPort Ghost provides more memory banks than an ordinary EDID simulator or emulator. These EDIDs can trick the system into emulating a DisplayPort display, i.e., a virtual monitor, to provide continuous video output even when the connected display is disconnected.
Unique EDID Export function
Unique EDID Export function
With no software installation or system configuration necessary, the VDDC-8K40 exports pre-stored EDID data to a computer via one USB cable for viewing or advanced EDID analysis by third-party software. EDID data analysis is ideal for developing or testing High Definition video products, or for system integration companies to improve product compatibility.
● 8K DP 1.4a EDID Feeder Copies, Stores, Emulates* EDIDs from Connected Display to Solve Certain Incompatibility Issues
● Supports Most Popular Resolutions Up to 8K@30Hz ( HDR / Adaptive SYNC / DSC / FEC / SSC / HBR3 )
● Booster on Video Ports Strengthen Video Signal to Support Long DP Cables ( 2M )
● EDID Management Allows Users to :
- EDID Auto Copy Always Learn Connecting Display's EDID, and Stores to a Dedicated EDID Memory
- EDID Manual Copy Learn Connecting Display's EDID, and Stores to 3 Dedicated EDID Memories
- EDID Export Grants PC Access to the EDID MemoriesLike Accessing an USB Storage
● Advanced HDCP Algorithm Ensures Proper HDCP Communication , Free from Interference of EDID Copy
● Eliminates Video Handshaking Failures / Improves Reliability in Professional AV Setups / Simplifies Multi-Display Testing and Debugging
