Dual Video True 4K HDMI HDBaseT 3.0 KVM Extender Over one CAT.6A / 7 cable with Video Scaler, EDID Management, Serial, USB 2.0, Audio, 100M
EVVBMU-M3020
Dual Monitor USB HDMI Extender, Dual 4K60@100M, Bi-Directional Video Extension, Audio Embed/ Extract, USB 2.0 Hub, Serial, Video Scaler and EDID Management, EVVBMU-M3020
EVVBMU-M3020= EVVBMU-3020L (Tx, USB Host) + EVVBMU-3020R (Rx, USB Device)
Dual Monitor USB HDMI Extender, EVVBMU-M3020, consists of a Transmitter (Host/ PC) and a Receiver (USB Device) unit and allows you to extend dual HDMI, USB 2.0, 3.5mm Audio, and Serial signals up to 70~100M over category cable (Cat6A/7). Based on the latest HDBaseT 3.0 technology, CAT6 USB HDMI extender transmits uncompressed 4K@60Hz (4:4:4) video and 480Mbps USB 2.0 signals from Tx to Rx.
Rextron's Technological Prowess: Transmitting two high resolution videos over one CATx cable
EVVBMU-M3020= EVVBMU-3020L (Tx, USB Host) + EVVBMU-3020R (Rx, USB Device)
Dual Monitor USB HDMI Extender, EVVBMU-M3020, consists of a Transmitter (Host/ PC) and a Receiver (USB Device) unit and allows you to extend dual HDMI, USB 2.0, 3.5mm Audio, and Serial signals up to 70~100M over category cable (Cat6A/7). Based on the latest HDBaseT 3.0 technology, CAT6 USB HDMI extender transmits uncompressed 4K@60Hz (4:4:4) video and 480Mbps USB 2.0 signals from Tx to Rx.
Rextron's Technological Prowess: Transmitting two high resolution videos over one CATx cable
In order to maintain the integrity of the video stream and transmit it in an uncut and undistorted form, the two video sources are first merged into an extended resolution frame, and combined side by side in this framework in either a horizontal or vertical arrangement. This video source is then transmitted from the transmitter to the receiver.
EDID Management and Video Scaling Features Prevent Flickering or Black Screen Issues
EDID Management and Video Scaling Features Prevent Flickering or Black Screen Issues
The Rextron Dual Monitor USB HDMI Extender's unique EDID configuration technology provides EDID emulation functions to maintain constant EDID communication or choose pre-stored EDID information for end-to-end input and output settings that support different resolutions, covering 16:9, 21:9, 32:9 and 1:1, 16:18 aspect ratio monitors.
● End-to-end input and output resolution settings.
● Transmitter (Tx) supports EDID Emulation.
● Receiver (Rx) supports Video Scaling (Up/ Down).
● Supports most monitors with 16:9, 21:9, 32:9, 1:1, and 16:18 aspect ratios
Bi-Directional Video Extension
Bi-Directional Video Extension
The bi-directional HDMI signal transmission transmits the video stream from Tx to Rx and allows the video output port on the transmitter unit to display the remote video coming from the Rx.
Bi-Directional Audio Extension with Unique Audio Embedding/ De-Embedding Function
Bi-Directional Audio Extension with Unique Audio Embedding/ De-Embedding Function
The Rextron Dual Monitor USB HDMI Extender's bi-directional audio signal transmission combining the audio embedder/ extractor functions can independently transmit the audio signal from the transmitter unit to the receiver unit and vice versa and arbitrarily embed audio from a 3.5mm source into the HDMI signal or extract the HDMI audio into a 3.5mm analogue stereo audio. The versatile audio streaming functions support real-time broadcasting, on-site broadcasting, off-site broadcasting and emergency alerting.
Serial Extension
Serial Extension
RS-232 (RJ-11 to RS-232 adapter) serial extension is widely used in digital signage, smart classroom and smart home system. EVVBMU-M3020 Full-duplex data communication between Tx & Rx via CAT.x cable connection is a cost effective, hardware based solution that provides remote access and control to any RS-232 protocol device without any setup or configuration.
- Allows Reliable 70~100M Remote Access to a True 4K HDMI 2.0 Dual-Video Computer via a CAT.6A/ 7 Cable
- Most Popular Resolutions Supported by the HDMI 2.0 Video Up to 4K@60Hz (4:4:4)/ 5K/ 2048x2048 (ATC)/ 6MP (Medical)
- EDID Management+ Copies or Manually Selects EDID to Mitigate Monitor Incompatibility (Covers Both Popular & Special Resolutions)
- HDCP 2.2 / 1.4 Compliance Ensures Proper HDCP Video Playback (HDCP Version Auto Select)
- USB 2.0 Extension Allows Remote Access of Keyboard/ Mouse/ USB Devices
- HDBaseT 3.0 Empowers Uncompressed HDMI 2.0/ DP 1.2 Extension
- Video Return Allows Remote Oversight or Communication by Reverse Extension of a 720P HDMI Video (or Video of Equivalent Bandwidth)
- Serial Extension Allows Easy Integration with Central Control Systems or Industrial Control Purposes
- Audio EXT. Allows Flexible Audio/MIC Applications
- Audio Embed Replaces the HDMI Audio with the Analog Audio Input (Audio Embed On/Off Controled at Both the Transmitter and the Receiver)
- Audio Extract Replaces the Analog Audio Output of the Receiver with the HDMI Audio
|
Model Number |
EVVBMU-M3020 |
|
|
MAX. Resolution |
UHD ; QHD ; FHD ; 2048x2048 ; 1920x1920 ; 1536x2048 ; 1640x2048 ; 2100x2800 ; 5120x1440 ; 2560x1080 ; 2560x2880 |
|
|
Interfaces |
Transmitter |
Receiver |
|
Video Extension |
HDMI 2.0 x 2 |
HDMI 2.0 x 2 |
|
AUX Extensions |
3.5mm SPK x 1 ( In ) |
3.5mm SPK x 1 ( Out ) |
|
3.5mm MIC x 1 ( Out ) |
3.5mm MIC x 1 ( In ) |
|
|
RJ11 x 1 ( RS-232 ) |
RJ11 x 1 ( RS-232 ) |
|
|
720P HDMI x 1 ( Out ) |
720P HDMI x 1 ( In ) |
|
|
USB 2.0 x 1 ( B ) |
USB 2.0 x 4 ( A ) |
|
|
HDBaseT Link Port |
RJ45 x 1 |
|
|
HDCP Compliance |
HDCP 2.2 / HDCP 1.4 |
|
|
Material ; Power Supply |
Aluminum ; DC 9~12V |
|
|

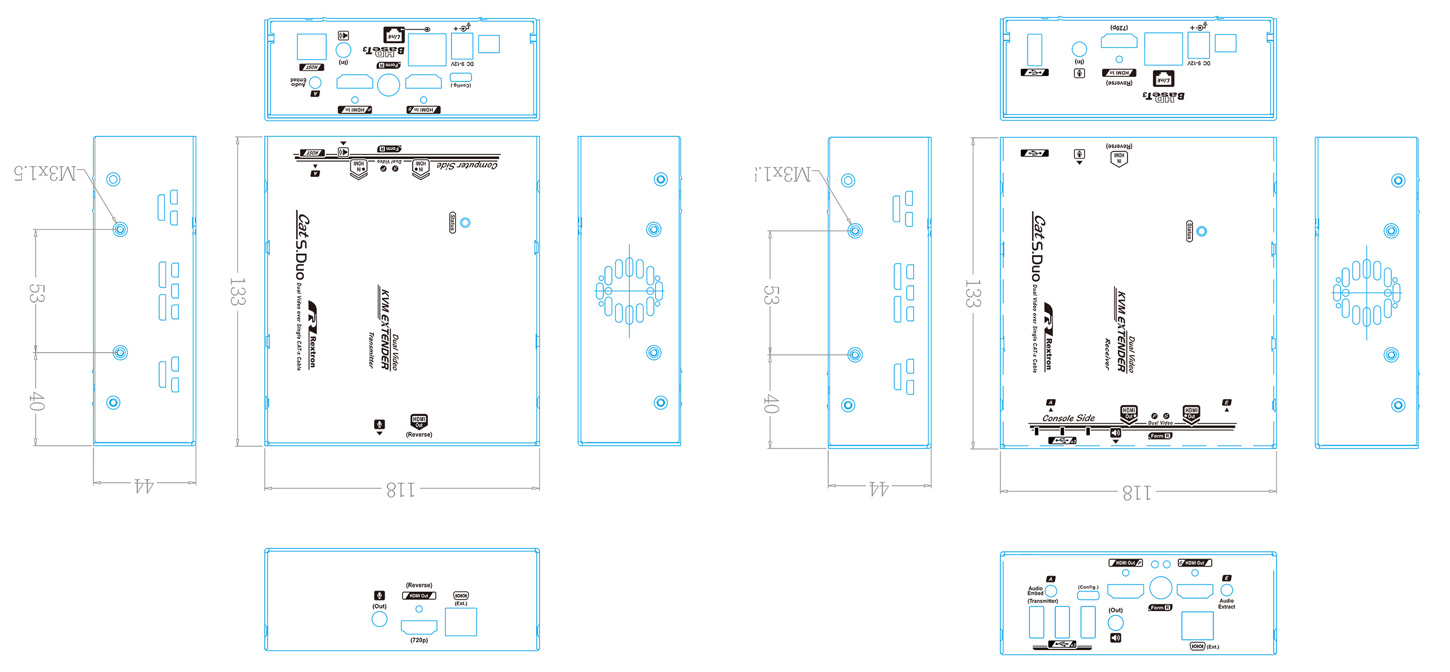

HxWxD ( mm ); Weight |
44 x 118 x 133 ; 460g ( Each Unit ) |
|
