Product Name : HDMI to VGA Converter with Audio
Product No : VCAMV-012
Read More
Product Description
  • Convert a digital HDMI signal to a VGA and analog audio signal
  • Multi-color LED Status indicates for easy troubleshooting and monitoring
  • HDTV Compatibility
  • Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA ….Full HD, WUXGA  system
  • Intelligent EDID handling and processing algorithm
  • HDCP 1.4

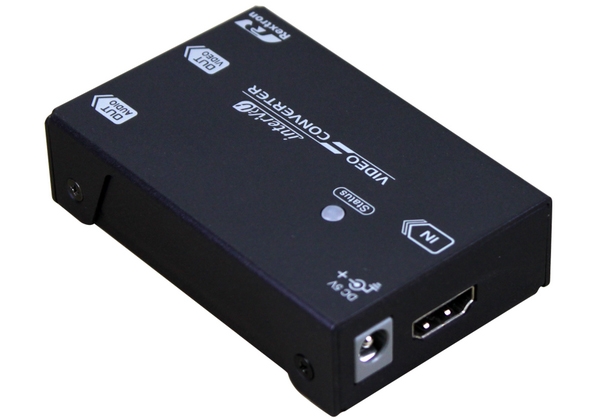

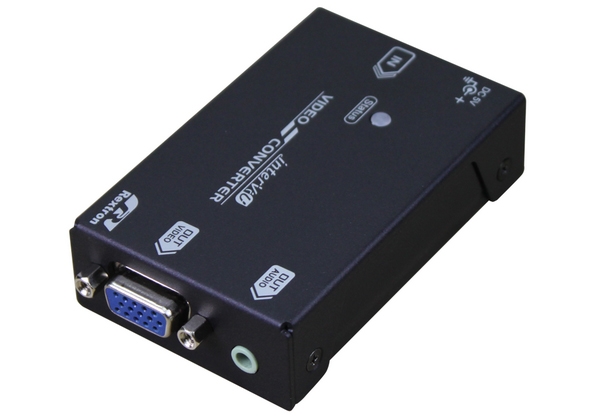

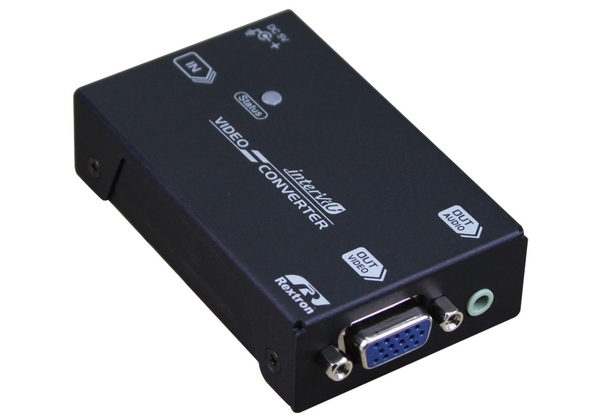

HDMI to VGA Converter with Audio. VCAMV-012 is an HDMI to VGA and Audio converter that offers an easy and convenient way of converting HDMI input signals into VGA. The converter allows stereo audio extraction from HDMI input to 3.5mm audio output.

VCAMV-012 max. supports up to Full HD (1920 x 1080) or WUXGA (1900 x 1200), compliant to HDMI 1.3, no software or driver required, compatible with most screen resolutions, built-in EDID
handling and processing algorithm to ensure accurate output.

It is the best solution for digital to analog conversion.
  • Convert a digital HDMI signal to a VGA and analog audio signal
  • Multi-color LED Status indicates for easy troubleshooting and monitoring
  • HDTV Compatibility
  • Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA ….Full HD, WUXGA  system
  • Intelligent EDID handling and processing algorithm
  • No software required ensuring Plug and Play operation
  • Compliant with HDMI v1.3

Model Name

VCAMV-012

  Input / Output

  HDMI x1 / VGA x1, Analog Stereo x1

  Video Resolution (max.)

  Full HD (1920 x 1080)
  WUXGA(1920 x 1200)

  LED Indicator

  Power / System Status (Multi-Color)

  Frequency Range

  25-225MHz

  Power Supply

  Power by HDMI Input Port DC 5V, 200mA(min.)

  Dimension H x W x D(mm)

  20 x 80 x 50 (mm)

  Weight (g)

  180
