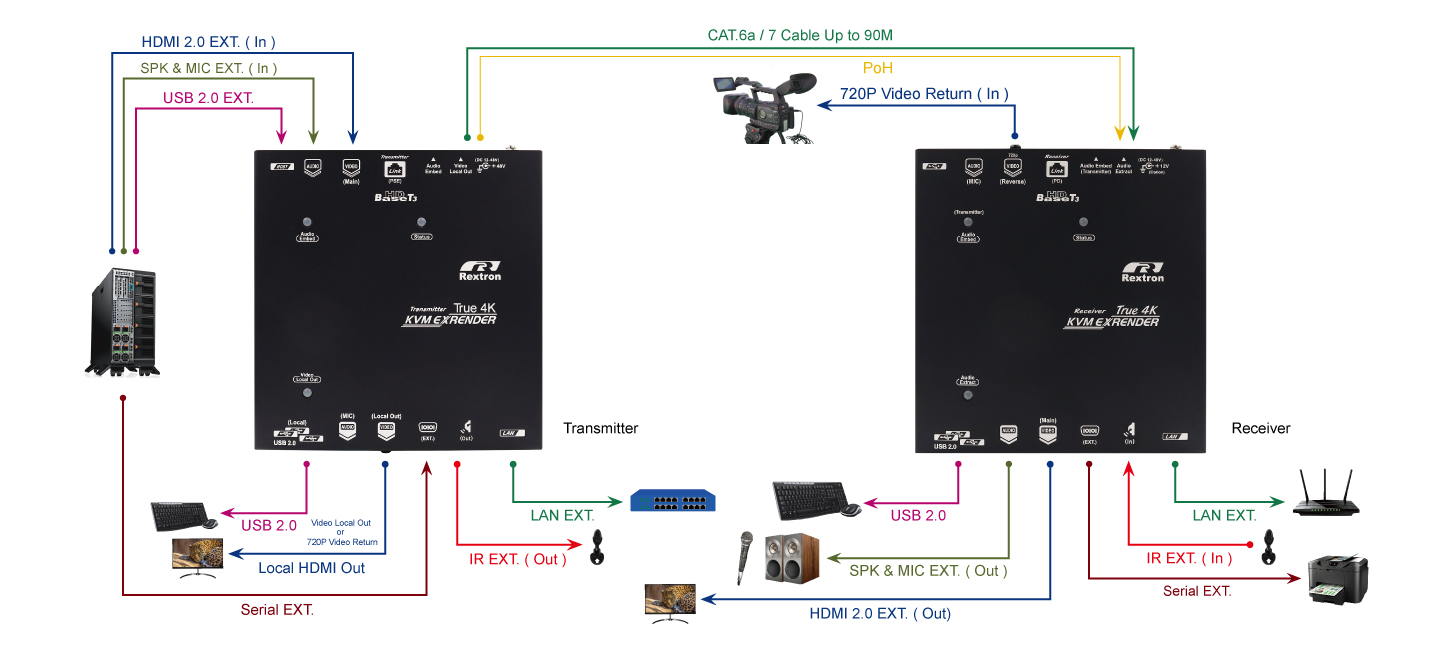

True 4K HDMI HDBaseT 3.0 KVM Extender Over CAT.X With Local Out, Audio, Serial, LAN, IR, USB 2.0, 90M ( PoH )
EGBMUN-M3210
- Allows Reliable Remote Access of a Computer or Video Source via a CAT.6A / 7 Cable Up to 90 Meters ( 295 feets )
- HDBaseT 3.0 Technology Grants Uncompressed True 4K HDMI 2.0 Extension
- Most Popular Resolutions Supported by HDMI 2.0 Up to 4K@60Hz ( 4:4:4 )
- HDCP 2.2 & 1.4 Compliance Ensures Uninterrupted Video Playback
- HDR10 Support for Best Visual Experience
- Auxiliary HDMI Allows Flexible Monitoring :
- Transmitter's HDMI 2.0 Local Output
- 720P Video Return from The Receiver Facilitates Monitoring and Recording Purposes
- USB 2.0 Extension Supports Keyboard, Mouse, USB Storage, USB Camera, and Other Devices
- Serial Extension Allows for Extensive RS232 Control Applications
- Giga LAN Extension Simplifies Cable Path
- CEC Pass Through Allows Easy Control
- Audio Embed Allows User to Insert Informative Audio Content into The HDMI
- Audio Extract Allows Easy Connection to an Analog Audio Amplifier
- Audio Embed Controls at Both Sides Allows Practical Audio Applications
- PoH ( Power over HDBaseT ) Allows The Transmitter to Supply Power to The Receiver
- ARC ( Audio Return Channel ) Facilitates Sound Bar Application
|
Model Name |
EGBMUN-M3210 ( PoH ) |
|
|
EGBMUN-3210L (Transmitter) |
EGBMUN-3210R (Receiver) |
|
|
MAX.Resolution |
7680x4320@30Hz ( 4:2:0 ) |
|
|
Video Interface |
HDMI 2.0 Input x 1 |
HDMI 2.0 Output x 1 |
|
USB 2.0 Extension |
USB-B x 1 |
USB-A x 4 |
|
Speaker Extension |
3.5mm SPK Jack x 1 ( In ) |
3.5mm SPK Jack x 1 ( Out ) |
|
Independent Transmission or |
Independent Transmission or |
|
|
Microphone Extension |
3.5mm MIC Jack x 1 ( Out ) |
3.5mm MIC Jack x 1 ( In ) |
|
LAN Extension |
RJ45 x 1 ( 1Gbps ) |
RJ45 x 1 ( 1Gbps ) |
|
IR Extension |
IR 3.5mm x 1 ( Out ) |
IR3.5mm x 1 ( In ) |
|
Serial Extension |
RJ11 x 1 ( RS232 ) |
|
|
Push Buttons |
Audio Embed x 1 |
Audio Embed (Transmitter) x 1 |
|
LED Indicator |
Status x 1 |
Status x 1 |
|
HDCP Compliance |
HDCP 2.2 and HDCP 1.4 |
|
|
HDBaseT Interface |
RJ45 x 1 ( CAT.6a /CAT.7 ) |
|
|
Extension Range |
MAX. 70~90 Meters with CAT.6a / CAT.7 |
|
|
Auxiliary HDMI |
1. HDMI 2.0 Local Out |
( Not Used ) |
|
2. 720P Video Return ( Receiver-to-Transmitter ) |
||
|
Power Supply |
DC 12V~48V ( PoH Transmitter-to-Receiver ) |
|
|
Operation Environment |
0~50°C, Humidity<80% |
|
|
Storage Temperature |
-20~60°C |
|
|
Enclosure |
Aluminum |
|
|
H x W x D (mm) |
30 x 127 x 135 |
|
|
Weight ( g ) |
650 |
650 |
