2-Port USB 3.2 Extender, 5Gbps @100M CAT6A, Type-C
USBX-M311
USB 3.2 Extender, 5Gbps @100M CAT6A, Type-C, USBX-M311

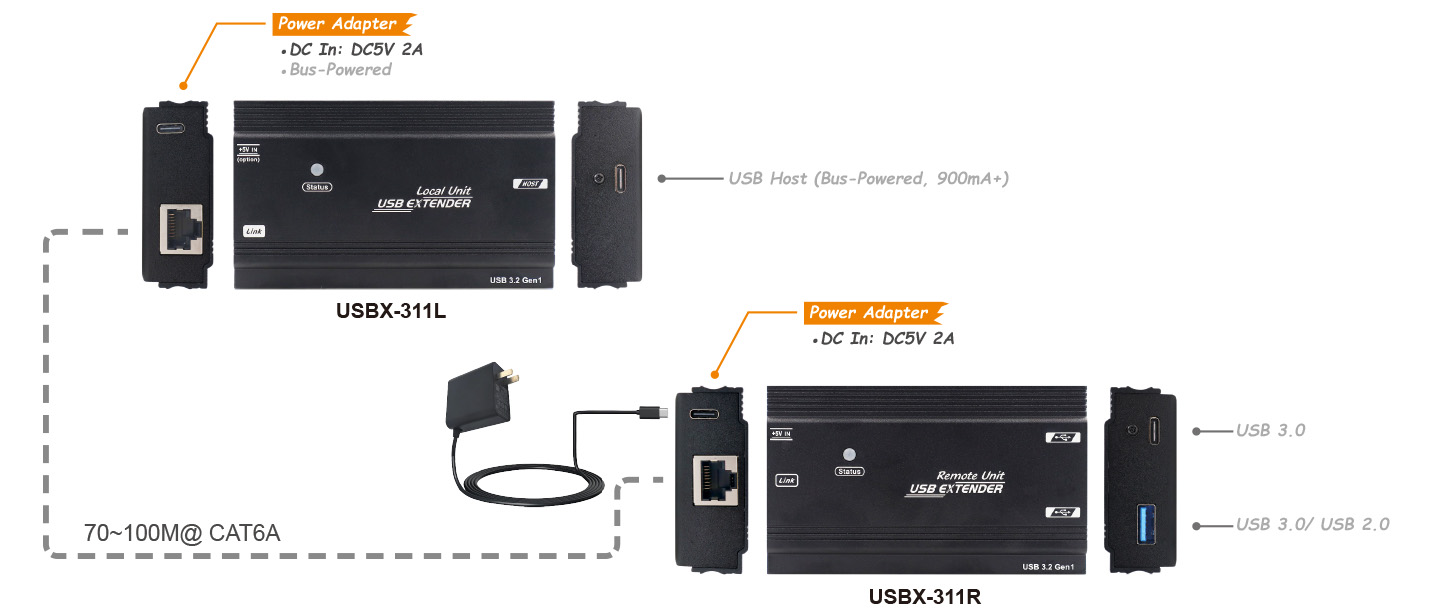

USBX-M311= USBX-311L (Local Unit, USB Host) + USBX-311R (Remote Unit, USB Device)
The Rextron USBX-M311 Type-C USB 3.2 Extender extends USB 3.2 device signals up to 70~100 meters over a CAT6A cable (transmission distance depends on cable quality).
This 2-Port USB 3.2 Extender consists of a local unit and a remote unit. It supports the connections of USB-A and USB-C peripherals, offers transfer speeds of up to 5 Gbps, and is backward compatible with USB 2.0 and USB HID devices.
The USBX-M311 features a plug-and-play design that requires no software installation and is compatible with major operating systems: Windows, Mac, and Linux
USBX-M311= USBX-311L (Local Unit, USB Host) + USBX-311R (Remote Unit, USB Device)
The Rextron USBX-M311 Type-C USB 3.2 Extender extends USB 3.2 device signals up to 70~100 meters over a CAT6A cable (transmission distance depends on cable quality).
This 2-Port USB 3.2 Extender consists of a local unit and a remote unit. It supports the connections of USB-A and USB-C peripherals, offers transfer speeds of up to 5 Gbps, and is backward compatible with USB 2.0 and USB HID devices.
The USBX-M311 features a plug-and-play design that requires no software installation and is compatible with major operating systems: Windows, Mac, and Linux
● 5Gbps SuperSpeed Extension Supports USB 3.2 Gen 1 Data Rates Up to 5Gbps
● Long-Distance USB Connectivity Extends USB Signals Up to 70–100m over CAT.6A

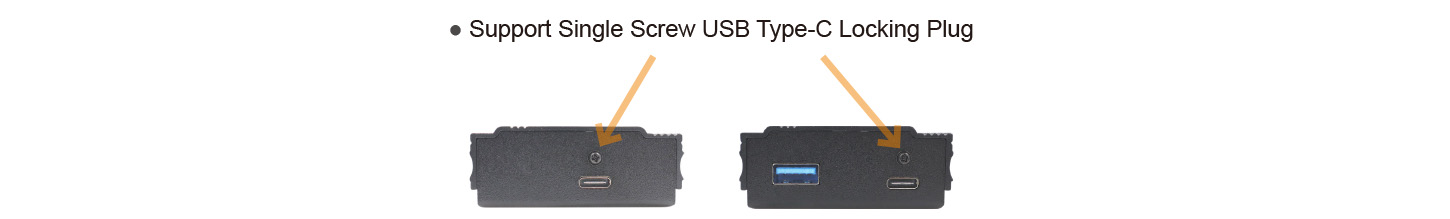

● USB A/C Device Ports Supports Most Devices
● USB 2.0 Backward Compatibility Supports USB 2.0 and HID Peripherals for Broader Device Integration
● Host-Side Bus Power Allows The Local Unit Receive Power from the Host USB Port, Easy Installation
Optional Local DC 5V Input Supports Hosts with Insufficient USB Bus Power
● Hot Plug-and-Play Operation
● LEDs Indicate Link Status, and USB 3.2 / 2.0 Operation
● Compact Aluminum Enclosure

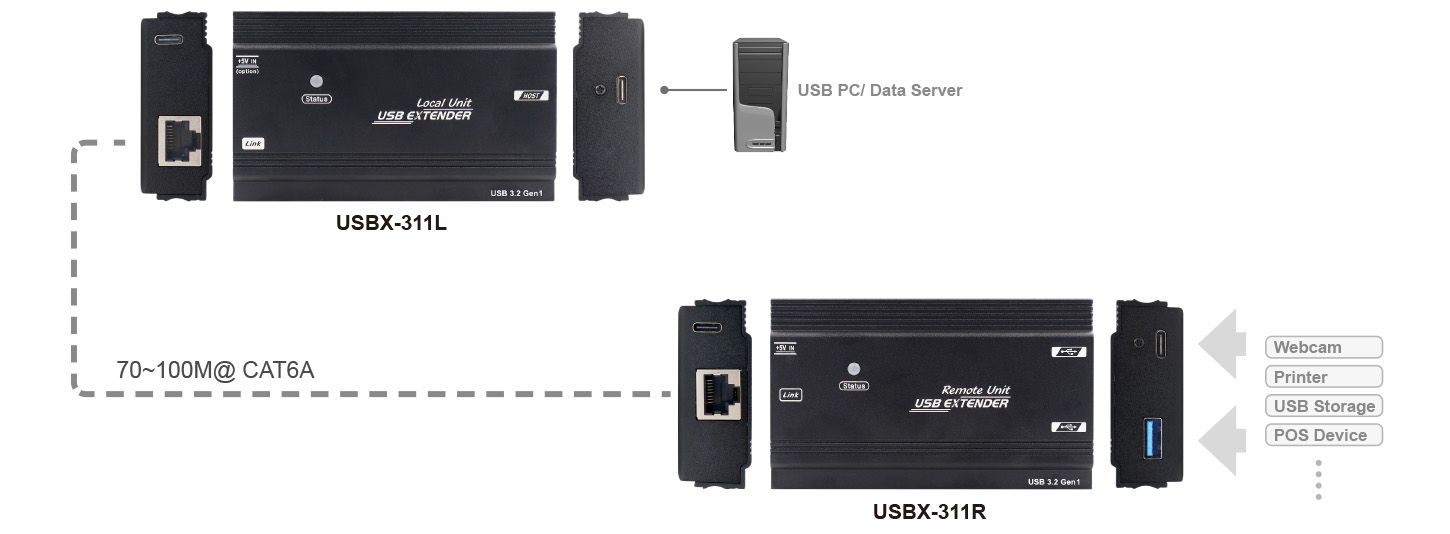

● Ideal for Industrial Cameras, Machine-Vision Systems, Production-Line Inspection, Control Rooms, Laboratories, and Remote USB Peripheral Deployment
