Product Name : USB 3.2 Gen 1 Extender over CAT.X Cable with PD function, 100M ( PoC )
Product No : USBX-M315
Read More
Product Description
  • USB 3.2 Gen 1 / USB 2.0 Extension Supports 2 Devices ( A & C Connectors ) Up to 5Gbps Via 70~100M CAT.6A
  • Dual-Host Empowers Uninterrupted Workflow by Sharing USB Devices Across Two Systems with One Click
  • Dual-Side Switching Grants Instant Access, Wherever You Work, by Allowing Switching at Both Tx & Rx Sides
  • Priority-Sensing Automatically Switches to the Higher- Priority Host ( 1>2 ) ( Manual-Mode : Keep Host Selection )
Flexible Power Supply Options :
  1. Tx : Bus-Powered / Rx : DC 5V Adaptor
  2. Tx : External 5V / Rx : DC 5V Adaptor
  3. Tx : PD <15w rx="" :="" dc="" 5v="" adaptor="" span="">
  4. Tx : PD 15~36W / Rx : Power-over-Cable
  • PD Charge
  • USB 3.2 GEN 1
  • USB2.0
  • USB HID
  • Type-C PD
Type-C PD USB 3.0 Extender, 5Gbps @100M CAT6A, Dual-Host Switching, PoC, Long Range USB 3.0 Extension, USBX-M315

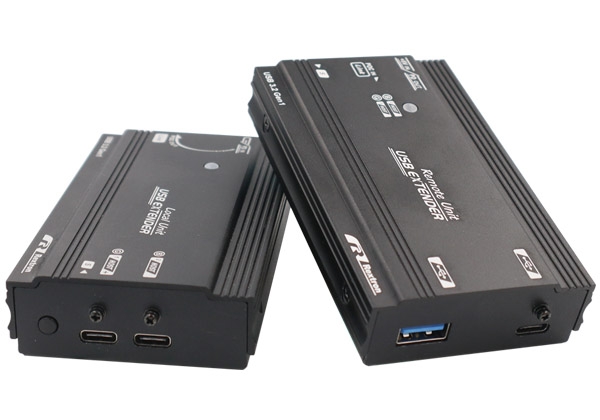

USBX-M315= USBX-315L (Local Unit, USB Host) + USBX-315R (Remote Unit, USB Device)

The Rextron USBX-M315 Type-C PD USB 3.0 extender extends two USB 3.0 device signals up to 70~100 meters (330 ft) over a CAT6A cable. Its unique features include a dual-host design with a host switching function, PoC support for PD in and PD out, and support for both USB-A and USB-C peripherals connection. The USB 3.0 extender consists of a local unit and a remote unit. It is plug-and-play and does not require any software installation. USBX-M315 works with major operating systems: Windows, Mac, and Linux.

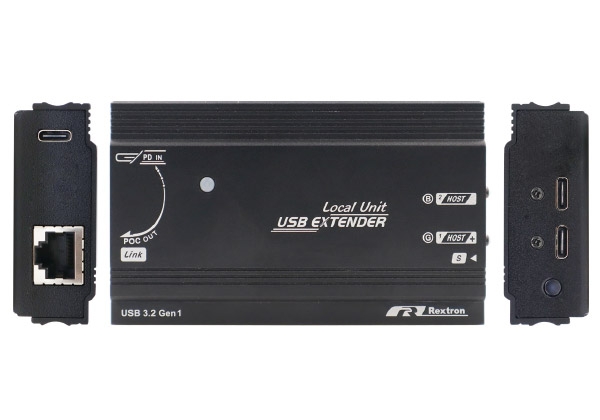

Type-C PD USB 3.0 Extender-IO

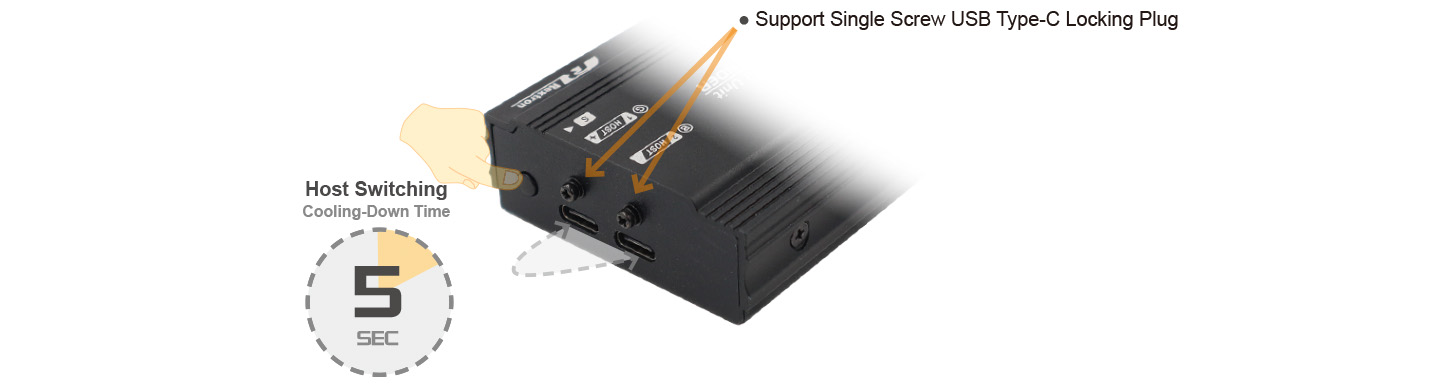

Dual Host Application (Support Single Screw USB Type-C Locking Plug)

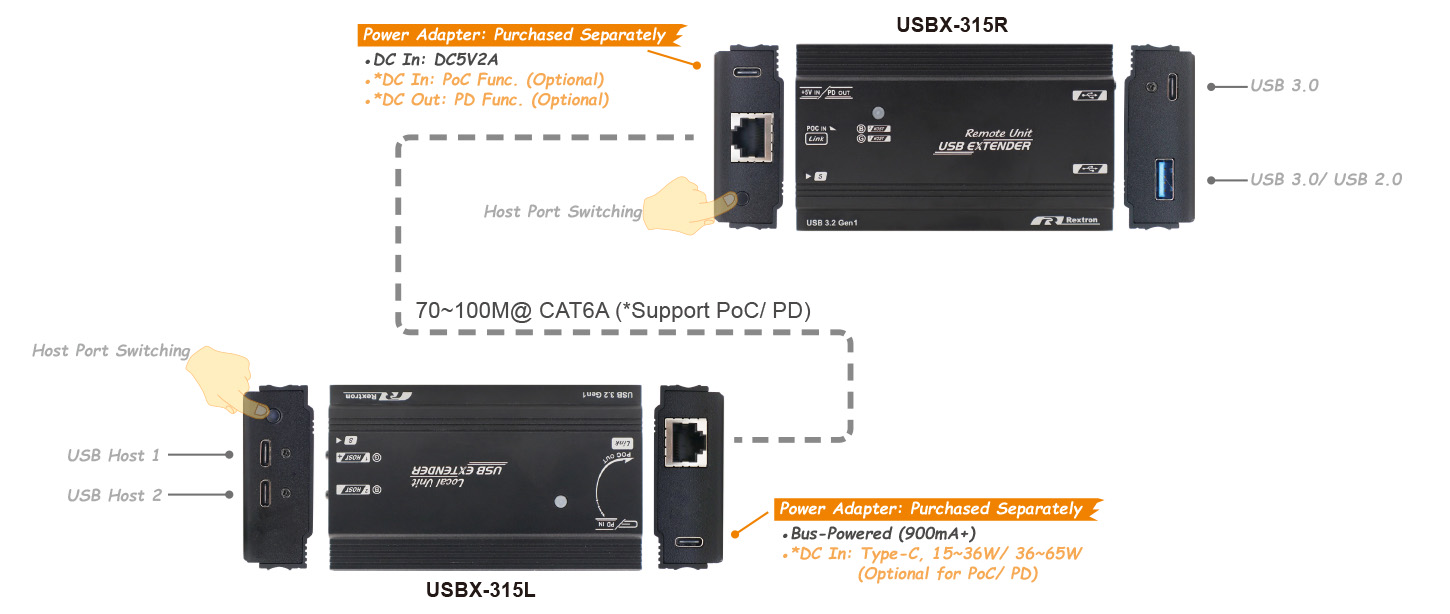

Thanks to its dual-host design and host switching function, the USB 3.0 Extender allows users at both local and remote sites to instantly switch between two USB host ports by pressing a button. To protect connected USB peripherals, the cooling-down time during host switching is five seconds, after which the next PC (host port) is seamlessly switched to.
Type-C PD USB 3.0 Extender-Dual Host

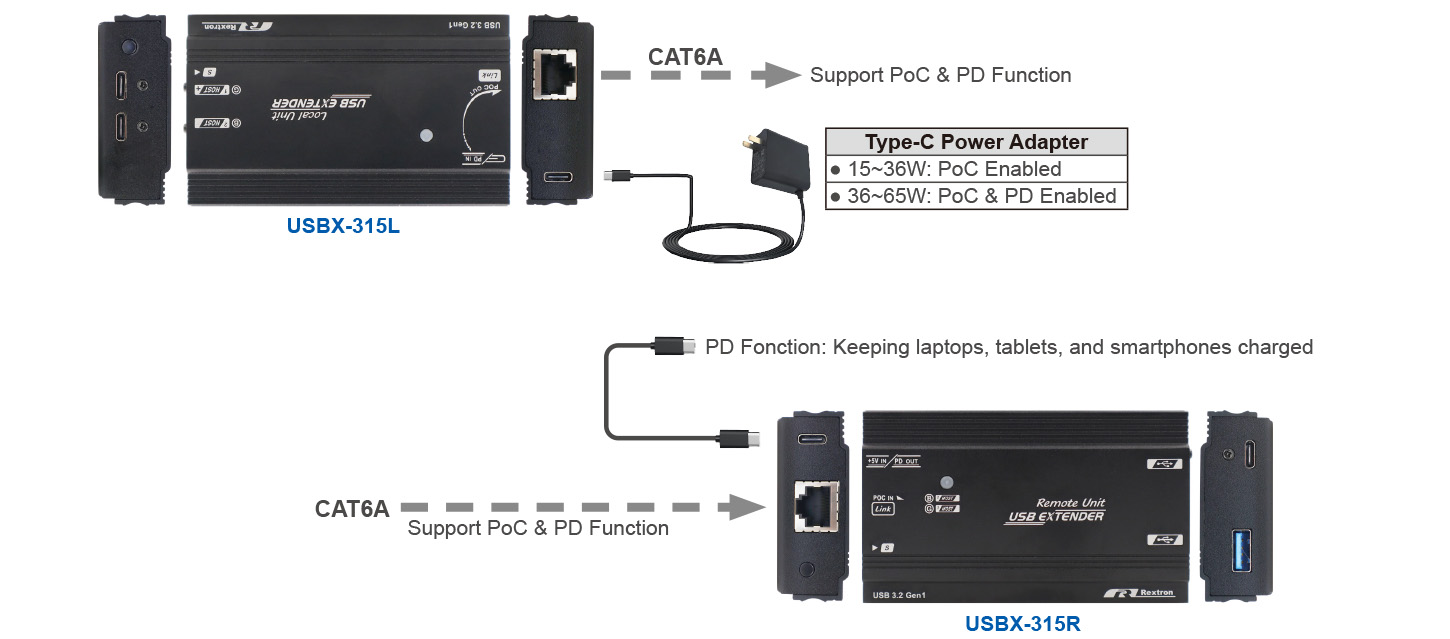

PoC and PD Function: USB-C PD Extender

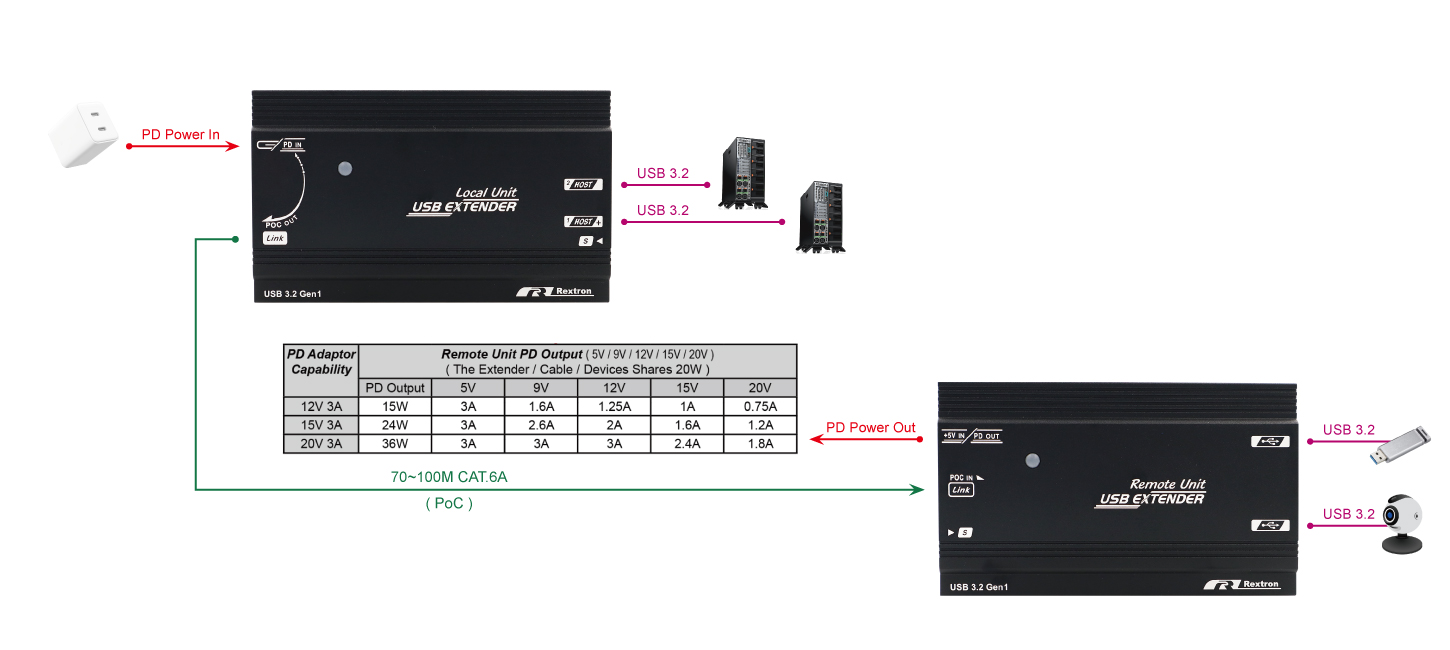

The Rextron USBX-M315 Type-C PD USB 3.0 Extender supports power-over-cable and USB power delivery functions. These functions enable the remote unit to draw power from the local unit. To take advantage of these functions, sufficient power must be supplied to the local unit. The table below shows the power adapter specifications required for PoC and PD.
Type-C PD USB 3.0 Extender-PoC & PD

  • Long Range USB 3.0 Extension
  • USB 3.2 Gen 1 / USB 2.0 Extension Supports 2 Devices ( A & C Connectors ) Up to 5Gbps via 70~100M CAT.6A
  • Dual-Host Empowers Uninterrupted Workflow by Sharing USB Devices Across Two Systems with One Click
  • Dual-Side Switching Grants Instant Access, Wherever You Work, by Allowing Switching at Both Tx & Rx Sides
  • Priority-Sensing Automatically Switches to the Higher- Priority Host ( 1>2 ) ( Manual-Mode : Keep Host Selection )
Flexible Power Supply Options :
  1. Tx : Bus-Powered / Rx : DC 5V Adaptor
  2. Tx : External 5V / Rx : DC 5V Adaptor
  3. Tx : PD <15w rx="" :="" dc="" 5v="" adaptor="" --15w--="">
  4. Tx : PD 15~36W / Rx : Power-over-Cable
  5. Tx : PD 36~60W / Rx : Power-over-Cable + PD Out
( 65W PD Adaptor Bundled Model : USBX-M315PD )
  •  Galvanic Isolation Ensures Power-over-Cable Safety, and Attenuates Electrical Noise
  • Transition Guard Ensures Safe, Reliable USB Handshake with a 5-Second Protective Switching Lockout

Model Name

USBX-M315

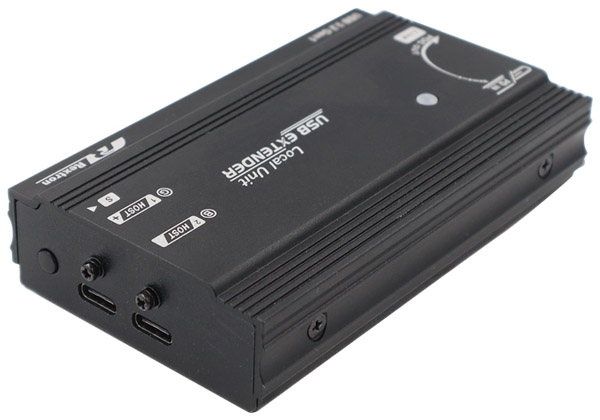

USBX-315L (Local Unit)

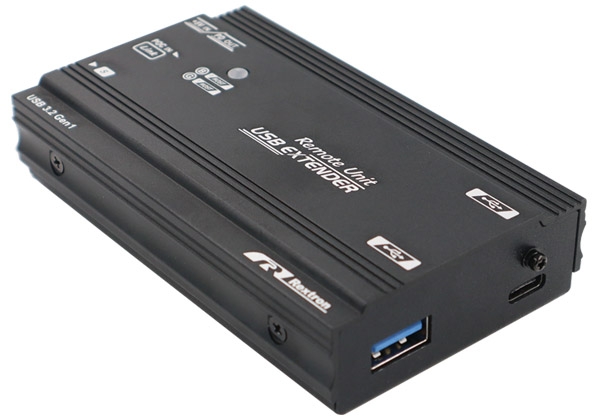

USBX-315R (Remote Unit)

  Computer/Server Ports (input)

Dual Host :
USB-C x 2 ( USB 3.2 Gen 1 ) ( 5Gbps )
( Bus-Powered )

RJ-45 x 1

  Console Ports (output)

  RJ-45 x 1

USB 3.2-A x 1
USB 3.2-C x 1

  LED Indicator
  (Power / Status)

1

1

  Extension Distance (Max.)

70~100M over CAT.6A
( Depend on Cable Quality )

  Hot Plug-and-Play

Yes

  Power Adapter Bundled

65 W Power Adapter ( Model name : USBX-M315PD )
DC Power Adapter ( Model name : USBX-M315 )

  Power Supply

USB-C x 1 ( Optional In )
( DC 5V or PD Input )
or
USB-C x 2 ( USB Host Powered )

USB-C 5V x 1 ( In ) ( PD less than 15W )
Power over Cable ( PD 15 ~ 36W )
Power over Cable + PD out ( PD 36 ~ 60W )

  Operation Environment

0~40°C, Humidity<80%

0~40°C, Humidity<80%

  Storage Temperature

-20~60°C

 20~60°C

  Enclosure

Aluminum

Aluminum

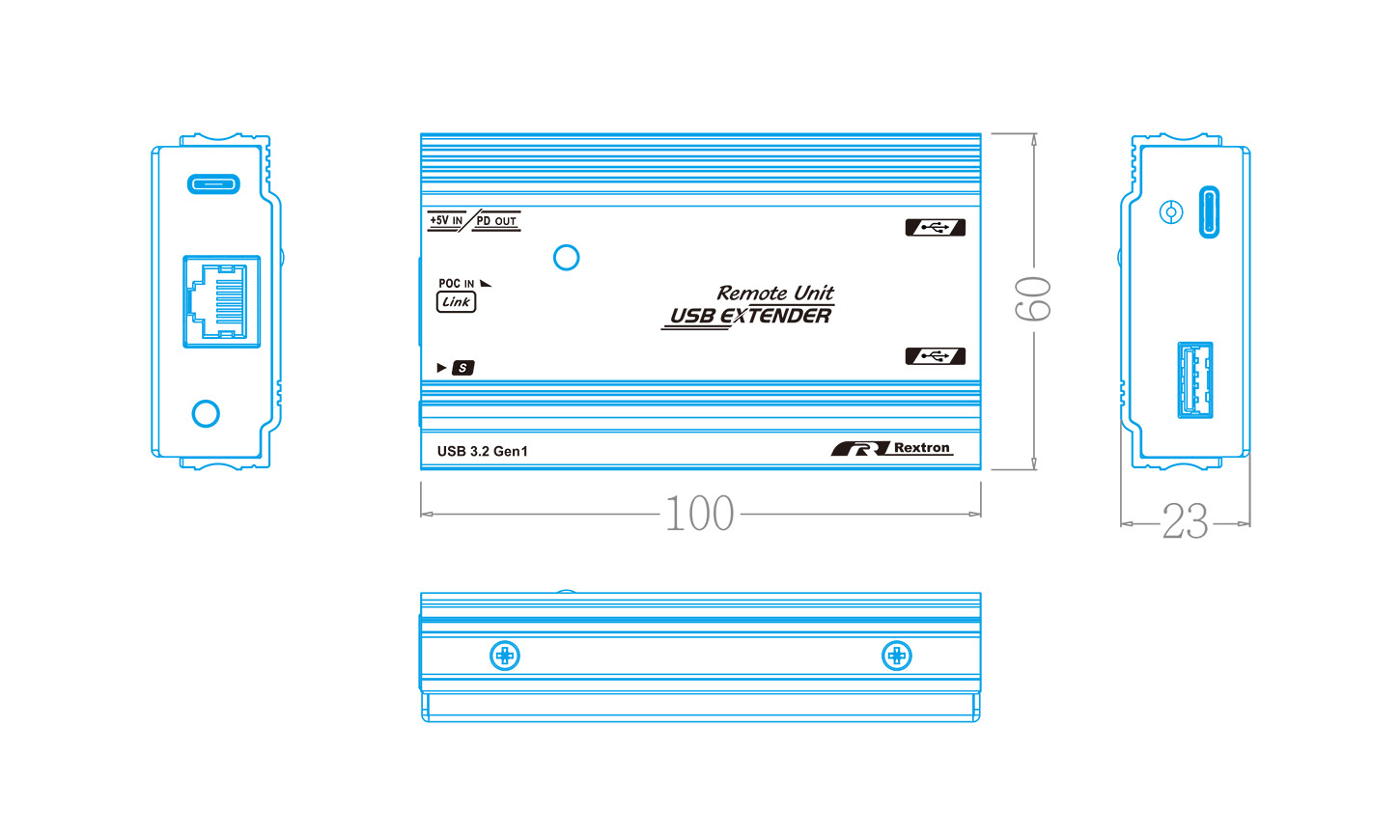

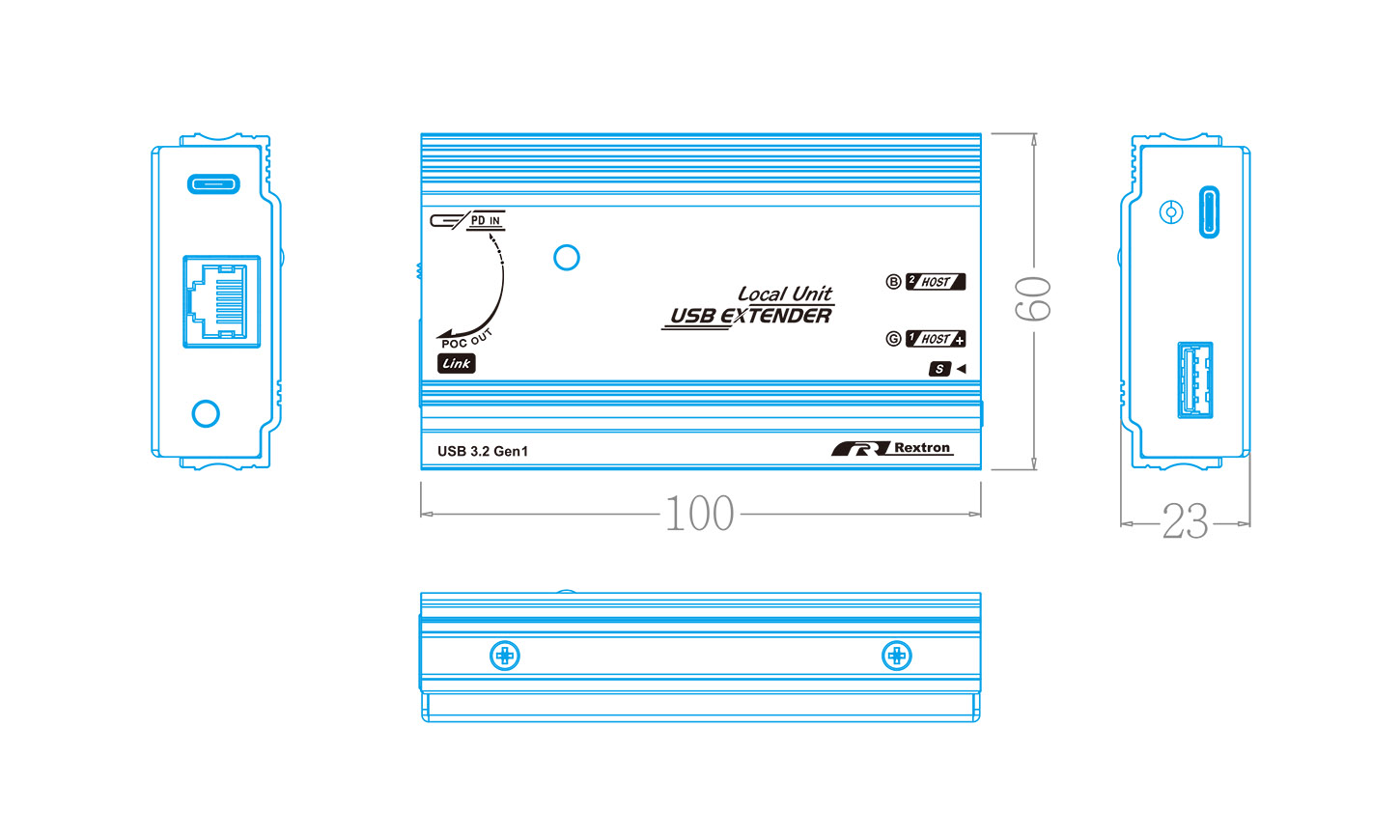

  H x W x D (mm)

23 x 60 x 100

23 x 60 x 100

  Weight (g)

165

165

USB 3.2 Gen 1 Extender support PD function - TX

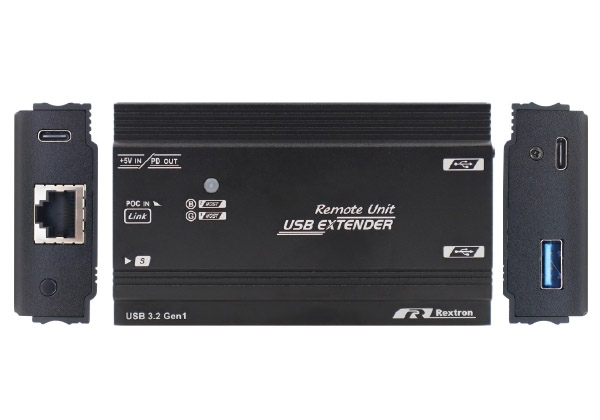

USB 3.2 Gen 1 Extender support PD function and 100M - RX
USB 3.2 Gen 1 Extender support PD function and 100M ( PoC )
