VGA Video Repeater over CAT.x
EV-021X
CAT5 VGA Extender Repeater Unit, Local View, EQ, EV-021X

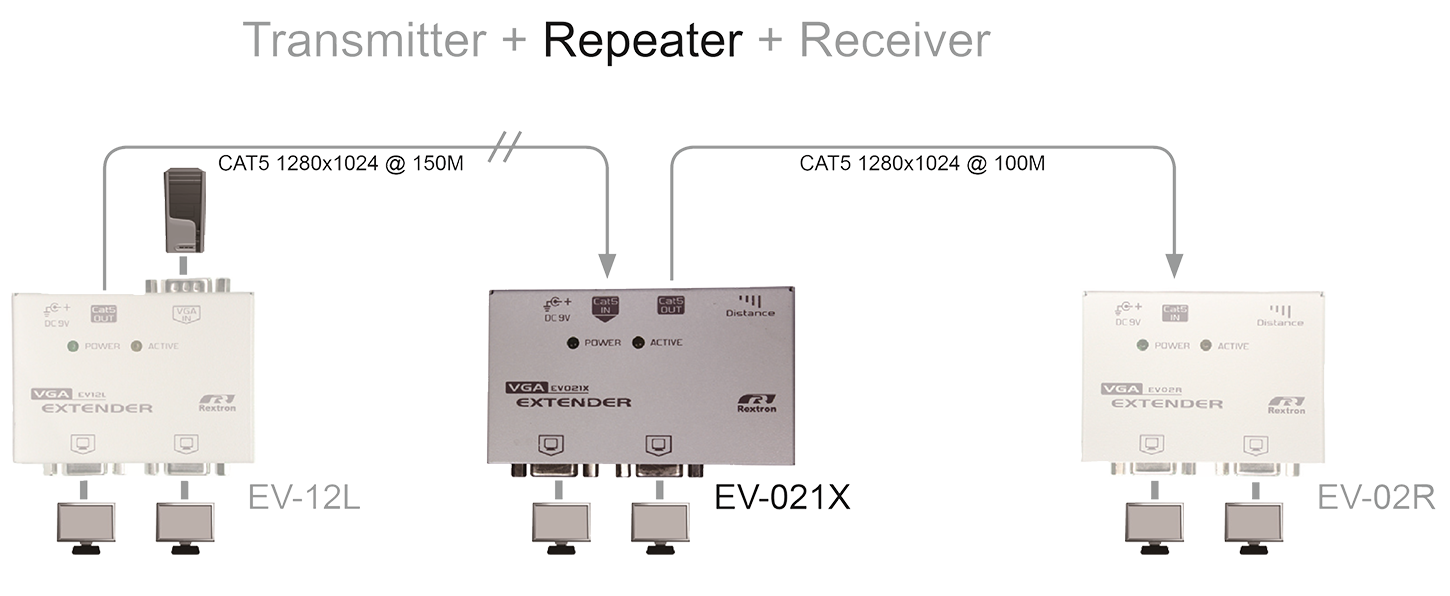

EV-021X, VGA Extender Repeater, is a character that form a connection link between the preceding (Tx) and the following (Rx) in the Rextron VGA over CAT5 extender system. (EV-12L + EV-021X + EV-02R / Transmitter + Repeater + Receiver). VGA Extender Repeater enables you to transmit VGA signals with the resolution up to 1280 x 1024, featuring common mode noise suppression circuit for superb VGA quality via inexpensive unshielded twisted pair CAT5 cables. The Local Unit EV-12L duplicates the input signal for local use and transmits the VGA signal to a Repeater Unit EV-021X, and again the Repeater transmits the VGA signal coming from the Tx to a Receiver Unit EV-02R.
Upon receiving the VGA signal via a CAT5 connection, the Repeater Unit broadcasts the signal to two VGA outputs. EV-2021X, VGA Extender Repeater, provides a convenient Gain (equalization) control selector which is designed for optimum signal clarity according to the length of the CAT5 cable.
- Connect the Extender pair via Category 5 / 5e / 6 UTP cable
- Distributing video signal through Cat5 and 2 VGA ports for local display
- No software or drivers required and easy to install
- Supports VGA, SVGA, and Multisync monitors
- Transmit superb quality of VGA signals via CAT5 cables
- Gain (equalization) control selector designed for optimum signal clarity
- Using repeaters along your path to connect additional displays or using a receiver to connect directly to a remote display
- The repeater unit can transmit the VGA signal up to 250 meters away
- Support the resolution of 1280 x 1024 with the high-quality CAT5 cable
- Ideal for public broadcasting, exhibits, retail stores, courtrooms, stock tickers, bus stations, etc.
|
Model Name |
EV-021X |
|
Video Resolution (max.) |
1280 X 1024 |
|
Input / Output |
RJ-45 / HDB15-F x1 (Female) x 2 |
|
Extension Cable Type |
CAT5, CAT5e or CAT6 |
|
Mzx. Distance |
100 Meters |
|
Status Indicators |
Power (Green) x 1, Active (Yellow) x 1 |
|
Power Supply |
DC 9V, 600mA |
|
Dimensions H x W x D (mm) |
20 x 103 x 69 |
