US Wall Plate 4K Multi Format Video Extender Transmitter with Video Switch, HDMI, VGA, 70M HDBaseT, Decora Type
EVBMV-A1371WL
Wall-Mount Dual Gang Video Transmitter (70M) with Switch Splitter, Auto-Switching, ADC Converter, Audio-Embedding, EDID, and Serial/ GUI Control, EVBMV-A1371WL
EVBMV-A1371WL, Wall-Mount Dual Gang Video Transmitter, combines the video switch and video splitter features, and supports Auto EQ, HDCP 1.4, auto power saving, audio embedding, and Serial control without any drivers or software Installation. The transmitter unit EVBMV-A1371WL provides comprehensive EDID management, such as EDID Copy and Auto Learning mode, to ensure that every video source is displayed at the optimal resolution and format without any compatibility issue, allowing users to copy or learn EDIDs from the monitor(s) (Local or Remote side) via front panel EDID button pressing.
The product supports most popular video resolutions up to 4K @35 meters (230ft) or 1080p @70 meters (330ft) with HDCP compliant just via a single category cable in a point-to-point configuration.
Unique Video Auto-Switching function
EVBMV-A1371WL, Wall-Mount Dual Gang Video Transmitter, combines the video switch and video splitter features, and supports Auto EQ, HDCP 1.4, auto power saving, audio embedding, and Serial control without any drivers or software Installation. The transmitter unit EVBMV-A1371WL provides comprehensive EDID management, such as EDID Copy and Auto Learning mode, to ensure that every video source is displayed at the optimal resolution and format without any compatibility issue, allowing users to copy or learn EDIDs from the monitor(s) (Local or Remote side) via front panel EDID button pressing.
The product supports most popular video resolutions up to 4K @35 meters (230ft) or 1080p @70 meters (330ft) with HDCP compliant just via a single category cable in a point-to-point configuration.
Unique Video Auto-Switching function

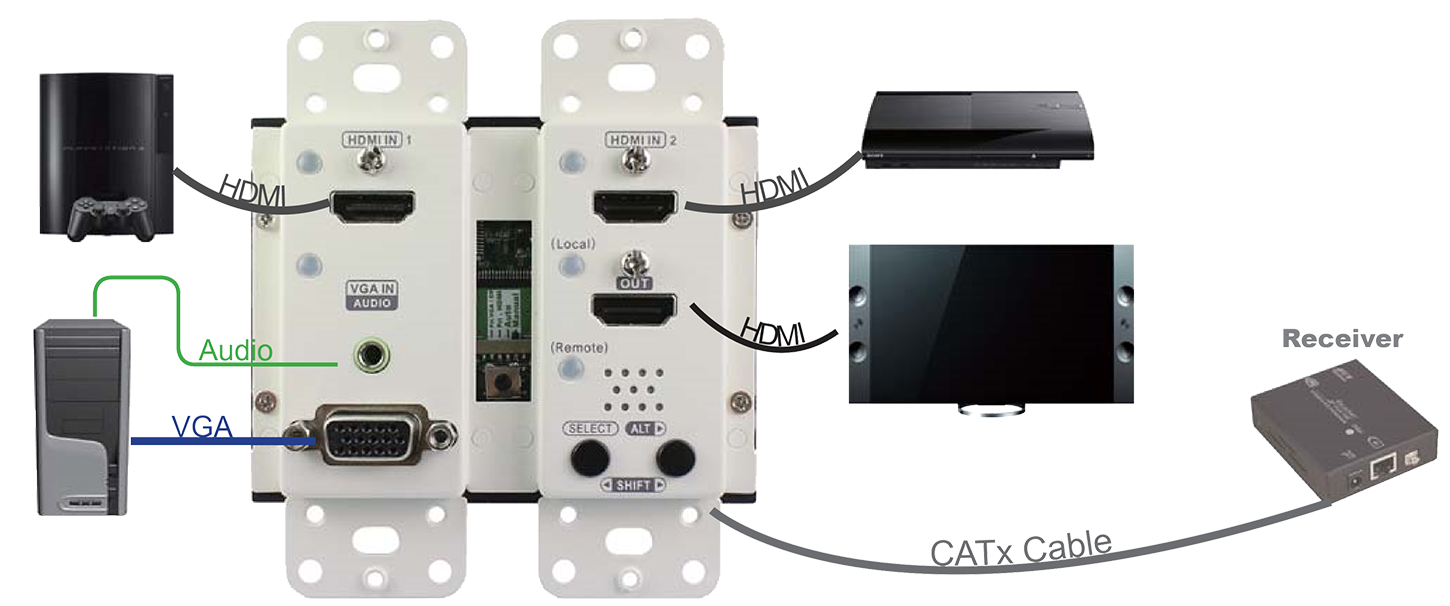

Wall-Mount Dual Gang Video Transmitter, Multi-Format Wallplate Video Transmitter unit EVBMV-A1371WL allows users to switch between 3 video sources (VGAx1, HDMIx2) and then delivers the selected video stream to local (Tx) and remote side (Rx). The “input auto detecting” function always routes the last connecting stream (as first priority) to the output. EVBMV-A1371WL provides 3 extra modes for input source selection including Manual mode, Auto mode, and Priority mode.
The input sources selection can be carried out thru the slide switch on the front panel:
• Manual mode: the input sources can be selected thru on-panel SELECT buttons or serial control (RJ-11).
• Auto mode: the last inserted source is automatically selected.
• Priority mode: Input source selected based on the priority level.
EVBMV-A1371WL supports various ways of control that can be done thru front-panel buttons, RS-232 serial, and GUI control. The RS-232 serial control, built-in RJ-11 serial interface for DB9 to RJ11 cable, with Graphical User Interface (GUI) function provides users easy and friendly operation.
Rextron EVBMV-A1371WL Wall-Mount Dual Gang Video Transmitter has not only the complete functions, but also the exquisite and compact design providing users an easy way in installation and utilization, saving a lot of space and time and is perfect for the factory, campus, military, office, school, medical application, government, home, and control room applications.
EVBMV-A1371WL supports various ways of control that can be done thru front-panel buttons, RS-232 serial, and GUI control. The RS-232 serial control, built-in RJ-11 serial interface for DB9 to RJ11 cable, with Graphical User Interface (GUI) function provides users easy and friendly operation.
Rextron EVBMV-A1371WL Wall-Mount Dual Gang Video Transmitter has not only the complete functions, but also the exquisite and compact design providing users an easy way in installation and utilization, saving a lot of space and time and is perfect for the factory, campus, military, office, school, medical application, government, home, and control room applications.
- Transmit HDMI / VGA with analog audio signal up to 70 meters
- Uses HDBaseT technology
- Auto EQ (Sharpness) adjustment for optimal signal clarity
- Screen Shift Mode provides the user to adjust the image's shifting
- Use Resolution Alternation Mode when catching multiple similar video timing
- Input source sequence selectable
- The auto-sensing function enables the system to automatically select the lastest video source
- Support resolutions up to UHD (3840 x 2160) and Full HD (1920 x 1080) and compatible with most of the popular screen resolution
- HDCP compliant, 3D-video and Blu-ray ready over single CATx cable
- Plug-and-Play system without any drivers or software installation
|
Model Name |
Transmitter (Wallplate) |
|
EVBMV-A1371WL |
|
|
Input |
HDMI x 2 |
|
Output |
HDMI x 1 |
|
Connection |
RJ-45 x1 |
|
LED Indicator |
Source x 3 |
|
Push Button |
SELECT x 1, |
|
Serial Configuration |
RJ-12 x 1 (Control) |
|
Mode Configuration |
Pri-VGA/DP / Pri-HDMI / Auto / Manual |
|
Video Resolution (Max.) |
UHD (3840 x 2160) for HDMI |
|
Extension Distance |
HDMI |
|
Enclosure |
Metal |
|
Power Supply |
DC 12V |
|
H x W x D (mm) |
x |
|
Weight (g) |
x |
