Wallplate VGA Video Extender
EV-10WL
Single Gang Wall-Mount VGA Transmitter, EDID, Phantom Power, EV-10WL
EV-10WL, Wall-Mount VGA Transmitter, allows you to extend VGA signal up to 165 meters away from a Video source by using only a single UTP CAT5/ 5e/ 6 cable increasing the space efficiency. Rextron Wall-Mount VGA Extender pair supports most of the popular Windows, Mac, Sun, and Linux operating system.
The Transmitter Unit “EDID Copy” feature allows the Unit to read the necessary EDID information from the attached video display and then provides it at all times to the attached computer. If no new EDID information is available from a display, a default profile in the Transmitter Unit is automatically provided instead.

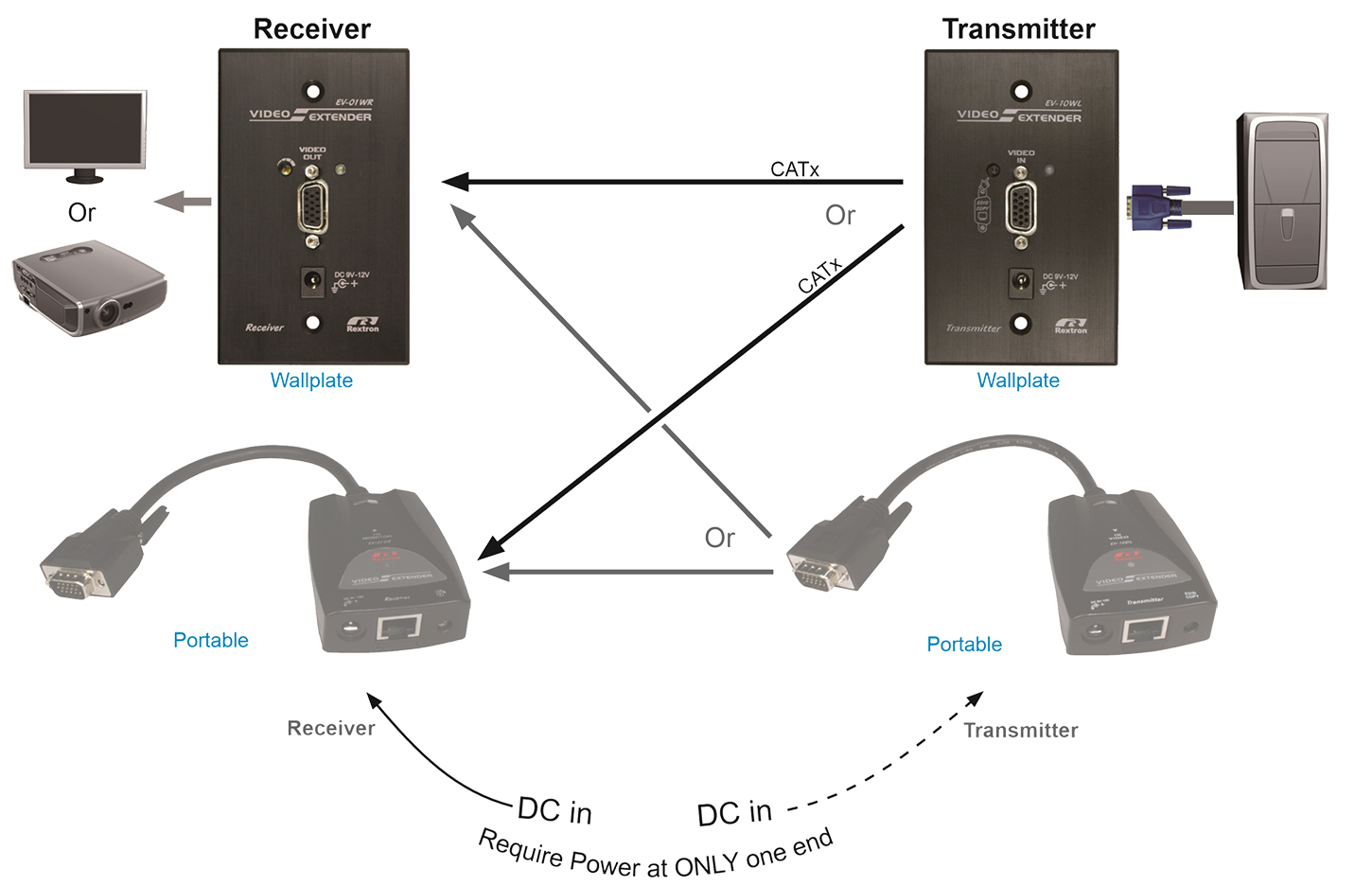

Wall-Mount VGA Transmitter, EV-10WL, supports both DC Jack (front panel) or Terminal Block (rear side of the unit) power supply application, and with the Phantom Power feasibility users may apply power to either end of two units (Transmitter and Receiver Unit), but it is suggested that users apply power of DC 12V to the Receiver side.
- Connect the Extender pair via CAT5 / 5e / 6 UTP cable
- Extend video signal up to 165M away from a Transmitter
- Support the video resolution up to 1920 x 1080 (Full HD), 1920 x 1200 (WUXGA)
- Plug-n-play enabled in Windows, Mac, Sun, and Linux platforms
- No driver needed or software required
- EDID Copy function makes the best resolution presenting for your application
- EQ (Sharpness) adjustment for optimal signal clarity
- Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA,…Full HD, WUXGA
- Easy to get and install the CATx cable at lower cost
- Ideal for public broadcasting, exhibits, retail stores, courtrooms, stock tickers, etc.
|
Model Name |
EV-M11DD |
|
Video Resolution (max.) |
Full HD (1920 x 1080), WUXGA (1920 x 1200 |
|
Input / Output |
HDB15-F x1 / RJ-45 |
|
LED(Power/EDID Copy x1) |
x 1 |
|
Extension Distance |
165M |
|
Enclosure |
Plastic |
|
Power Supply |
DC 9-12V |
