2 Ports VGA Video Switch with EDID Emulation
VSA-ED201

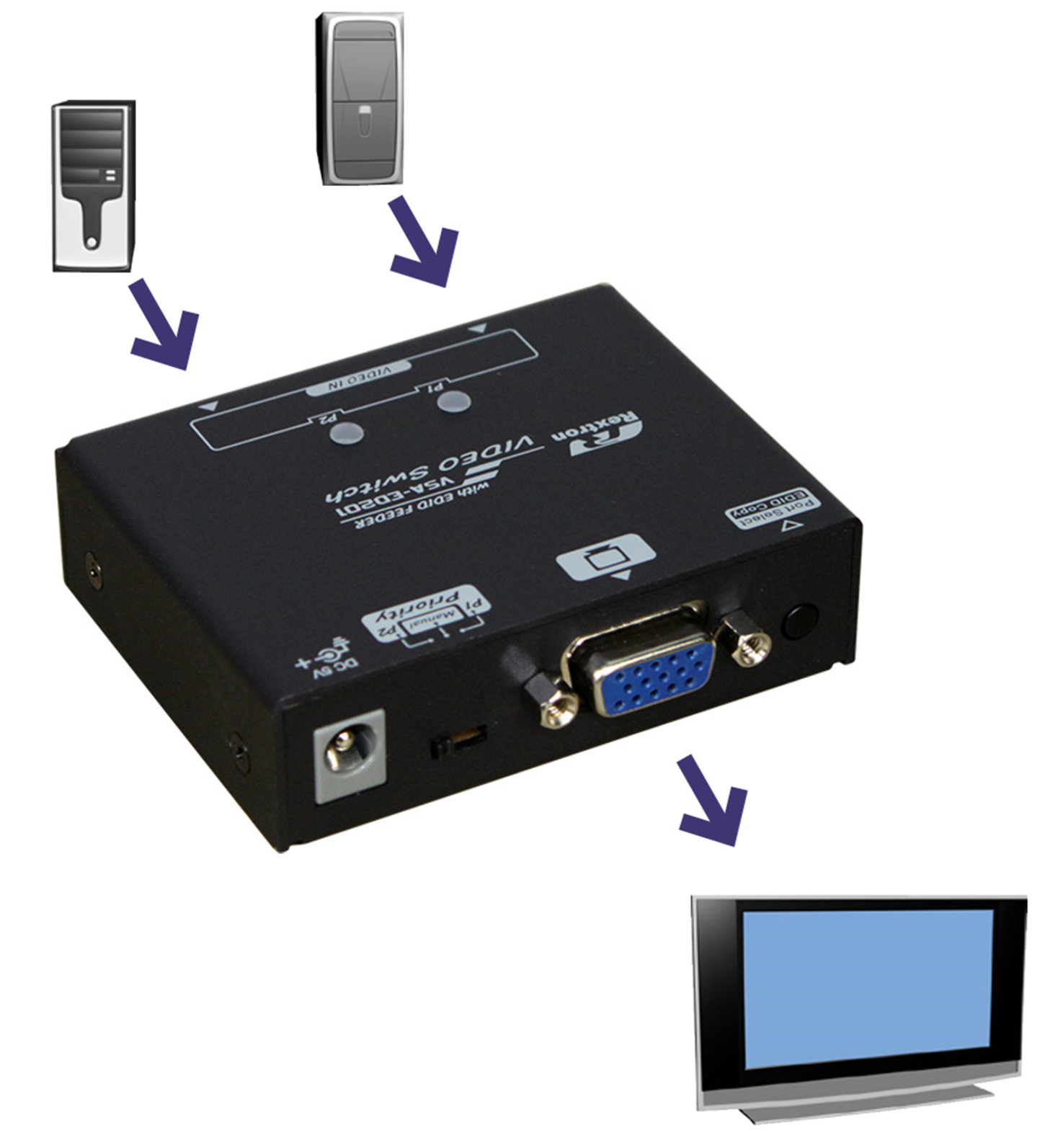

VSA-ED201, VGA Video Switch, is a 2 ports VGA Switch and allows users to switch between 2 VGA sources and then delivers the selected video stream to one VGA output device (Monitor/ Projector). The Slide Switch provides port selection via priority mode or manual mode.
EDID Copy functions allow the VGA Switch either to read the necessary EDID information from the switch unit itself or to copy EDID from the EDID compliant monitor that ensures every video source is displayed at the optimal resolution and format without any compatibility issue.

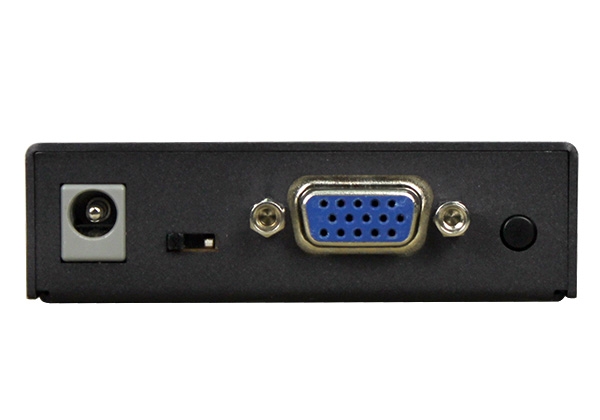

2 Ports VGA Switch, VSA-ED201 provides 2 extra modes for input source selection including Manual mode and Priority mode. The input sources selection can be carried out thru the slide switch on the rear panel:
- Switch mode: the input sources can be selected thru on-panel button.
- Priority mode: Input source selected based on the priority level.
- Select 1 VGA from 2 different VGA sources
- The Slide Switch provides port selection via priority mode or manual mode.
- No driver needed or software required
- Push button for easy computer selection (Manual mode)
- Plug-n-Play system configuration
- Simple LED indication makes operation user-friendly
- Support high VGA resolution up to 1920 x 1080,1920 x 1200, 2048 x 1152
EDID Functions
- EDID functions effect simultaneously of two video sources
- EDID Copy function makes the best video presentation
- Read and store the EDID from the connecting display to the video extension
- Provide a default EDID, if a display’s EDID is not available
- Alternatively, perform the default or the copied EDID for the connected display device
|
Model Name |
VSA-ED201 |
|
Video Resolution (Max.) |
2048 x 1152@60Hz ( 4:4:4 ) |
|
Video Input |
VGA x 2 |
|
Video Output |
VGA x 1 |
|
Slide Switch |
Port Selection x 1 ( Priority/ Manual Mode ) |
|
Push Button |
Port Selection / EDID Copy x 1 |
|
LED Indicator |
Power/Port Selection x 2 |
|
Power Supply |
DC 5V |
|
Operation Environment |
0~40°C, Humidity<80% |
|
Storage Temperature |
-20~60°C |
|
Enclosure |
Metal |
|
Dimension H x W x D (mm) |
22 x 75 x 59 |
|
Weight (g) |
170 |
