Product Name : 2 Ports VGA and HDMI Video Switch with HDMI Output (ADC Converter)
Product No : VSAVM-021
Read More
Product Description
  • Select a VGA plus analog audio or a digital HDMI signal converting to an HDMI signal
  • Support video with the resolution up to Full HD (1920 x 1080) / WUXGA (1920 x 1200)
  • Intelligent EDID handling and processing algorithm
  • No software required ensuring Plug and Play operation
  • HDTV, HDCP compliant and Blu-ray ready
  • Compliant with HDCP v1.4
  • EDID Management
  • HDCP 1.4

2 Ports Multi Format Video Switch with ADC Converter, Auto-switching, Audio Embedder, EDID, VSAVM-021

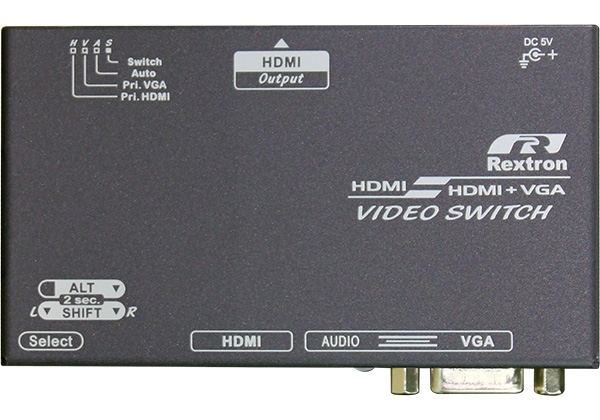

VSAVM-021, Video Switch with ADC Converter, allows users to quickly and easily share HDMI/ VGA sources and display the video contents to one output device (HDMI Monitor or Projector). The video switching can be simply achieved by button pressing. Unique Alt/Shift buttons support Screen Shift Mode for VGA signal horizontal position adjustment.

Auto-switching / input auto detecting / input priority setting functions always routes the last connecting stream (as first priority) to the output and/or forces the Input source selection based on the priority level.

The VGA/ HDMI and 3.5mm audio inputs bring in multiple audio/video feeds supporting audio embedding which embeds audio from a 3.5-mm source to an HDMI signal. VSAVM-021, Video Switch with ADC Converter, allows users to diversely incorporate the audio signal for more informative contents in video postproduction that are beneficial for the conference call, meeting room or show room application.

  • Select a VGA plus analog audio or a digital HDMI signal converting to an HDMI signal
  • Support video with the resolution up to Full HD (1920 x 1080) / WUXGA (1920 x 1200)
  • Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA ….Full HD, WUXGA system
  • Intelligent EDID handling and processing algorithm
  • LED Status indicates for easy troubleshooting and monitoring
  • No software required ensuring Plug and Play operation
  • HDTV, HDCP compliant and Blu-ray ready
  • Compliant with HDCP v1.4

Model Name

VSAVM-021

  Video Resolution (Max.)

   Full HD ( 1920 x 1080 )
   WUXGA ( 1920 x 1200 )

  Video Input

   HDMI x 1
   VGA + Audio x 1

  Video Output

   HDMI x 1

  Push Button

   ALT x 1
   Input Selection x 1

  LED Indicator

   Input LED x 2

  Slide Switch

   Switch / Auto / VGA Priority / HDMI Priority

  Power Supply

   DC 5V

  Enclosure

   Metal

  Dimension H x W x D (mm)

   25 x 103 x 60

  Weight (g)

   226



HDMI + VGA & Audio to HDMI Converter Switch
