8K/5K HDMI eARC Switch Splitter - Dual Input/Output, Serial Control, EDID, 4K@120Hz VKSM-8K212

Product Name : 2 Input 2 Output 8K/5K HDMI Switch-Splitter with eARC, EDID Management, Serial Control, Audio Embed/Extract

Product No : VKSM-8K212

Video Switch Splitter Duplicates the One Video to Two Displays
HDMI 2.1 Video Support Most Popular Resolutions Up to 8K@60Hz,5K@120Hz, 4K@120Hz
eARC Flexible Routing Allows User to Select Proper eARC Path to Facilitate Audio Applications
EDID Management Mitigates Most Display Incompatibility Issues, and the EDID Pass-Through Algorithm Ensures Proper Operation for Those Sources with Dynamic EDIDs

Add to Compare

Q'ty :

Inquiry

HDMI 8K 4K Switch Splitter, 4K@120Hz, SPDIF/ 3.5mm , Audio Embedder, De-Embedder, EDID Management, eARC, Serial Control, VKSM-8K212

VKSM-8K212, 4K Switch Splitter, allows users to switch between 2 HDMI sources and then delivers the selected video stream to 2 HDMI output devices. With FRL 8K HDMI resolutions of 40G bandwidth transmission and Dynamic HDR technology, the high-end switch splitter on the market, VKSM-8K212, supports resolutions of 4K@120Hz, 5K@120Hz, and 8K@60Hz.

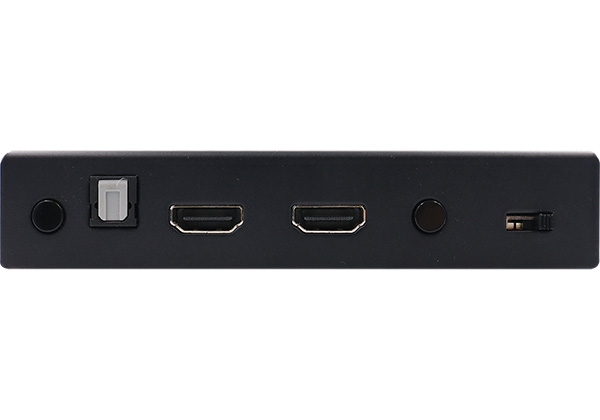

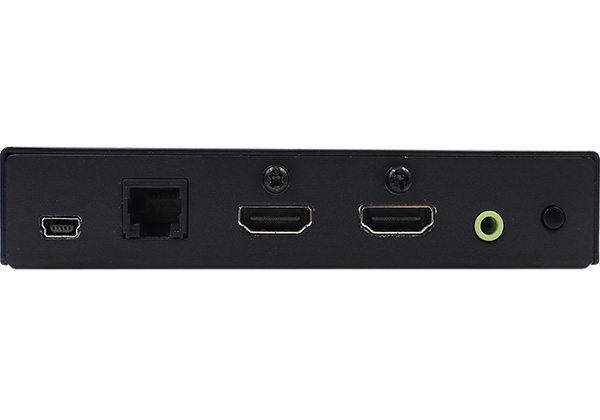

4K Switch Splitter-IO

eARC Setting (Enhanced Audio Return Channel)

Thanks to HDMI eARC, the HDMI cable sends both visual and audio signals back and forth between your AV sink device and AV receiver, so less cable management is required and audio data can be transferred solely via the HDMI cable. The Rextron unique eARC slide switch designed on the unit provides a more flexible audio return setup for analog audio, digital audio, and HDMI audio transmission.

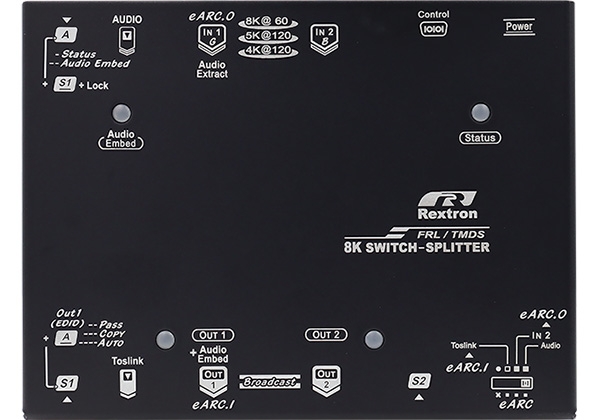

4K Switch Splitter-eARC function

HDMI/ SPDIF/ 3.5mm Audio and Audio Extracting / Audio Embedding

HDMI 8K 4K Switch Splitter VKSM-8K212 provides HDMI and 3.5mm audio inputs that bring in multiple audio/video feeds supporting audio embedding and audio de-embedding functions. The audio embedding function embeds audio from a 3.5-mm analog stereo audio to an HDMI signal, while the audio de-embedding extracts the HDMI audio to a SPDIF audio output.
4K Switch Splitter-audio embedding extracting

4K Switch Splitter-audio embedding extracting

EDID Management

Rextron HDMI 8K 4K Switch Splitter unique EDID configuration technology provides three ways of EDID communication.

EDID Parser: Use either the default or system recommended EDID data for the optimal video display.　

EDID Copy: Copy EDID from the EDID compliant monitor to ensure the accurate output display.

Auto EDID: EDID auto learning temporarily record the EDID data from the EDID compliant monitor.

Serial Control

Built-in RJ-11 serial interface (for DB9 to RJ11 cable) provides users easy and friendly operation. VKSM-8K212 built-in serial interface allows users to control the unit through a PC, serial controller devices or home theater system. Function of switching via serial command on Rextron HDMI 8K 4K Switch Splitter is especially designed for industrial control and communication purposes to enhance the functionality of the switch splitter unit and the serial devices management.

Video Switch Splitter Duplicates the One Video to Two Displays
HDMI 2.1 Video Support Most Popular Resolutions Up to 8K@60Hz,5K@120Hz, 4K@120Hz
HDMI 2.1 Features Support Including VRR, ALLM, DSC, Dynamic HDR, ... ETC
Compliant with HDCP 2.3 / 2.2 / 1.4
eARC Flexible Routing Allows User to Select Proper eARC Path to Facilitate Audio Applications

eARC Off ( Default )
eARC In Extract ( Out 1 Extract to TOSLINK )
eARC Out ( In 2 to In 1 )
eARC Out Embed ( Audio In Embed to In 1 )

EDID Management Mitigates Most Display Incompatibility Issues, and the EDID Pass-Through Algorithm Ensures Proper Operation for Those Sources with Dynamic EDIDs
Serial Control and Adjustable Baud Rate Allows Incorporation with Central Control Panels
Audio Embed Allows Temporary/Constent Insertion of Audio or Nerative Information into The Video
Audio Extract Port Is Ideal for External Audio Amplifier Applications

Model Name	VKSM-8K212
Video Resolution (Max.)	7680x4320@60Hz ( 4:4:4 ) 5120x1440@120Hz ( 4:4:4 ) 3840x2160@144Hz ( 4:4:4 ) & Other Popular Resolutions
Video Input	HDMI 2.1 x 2
Video Output	HDMI 2.1 x 2
Audio input	3.5mm MIC x 1 ( In ) ( Embed )
Audio output	TOSLINK x 1 ( Out ) ( Extract )
Control Methods	Push Buttons / Serial Control / Select Switch
Serial Control	RJ-11 x 1 ( 38400bps ) ( RS-232 )
Slide Switch	eARC Routings x 1
Push Button	Audio Embed x 1, Video Select x 2
HDCP Compliance	HDCP 2.3 / 2.2 / 1.4
EDID Management	Pass / Copy / Auto
Flexible eARC Routings	1. eARC Off ( Default ) 2. eARC In ( Out 1 ) Extract 3. eARC Out ( In 1 ) 4. eARC Embed ( Audio In )
Power Supply	DC 5V ( Mini-USB )
Operation Environment	0~40°C, Humidity<80%
Storage Temperature	-20~60°C
Enclosure	Metal

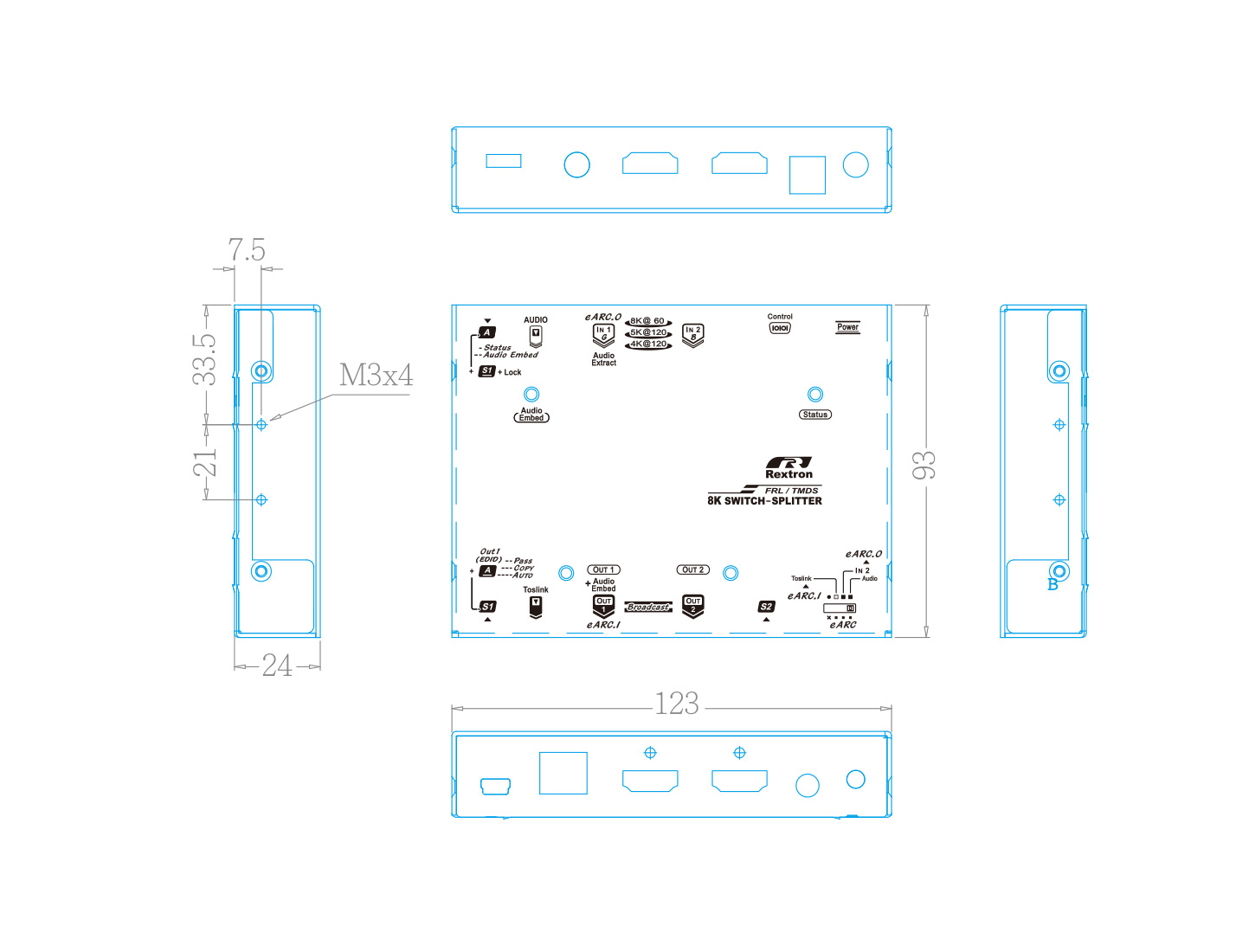

Dimension H x W x D (mm)	24 x 123 x 93
Weight (g)	373
