VGA KVM Extender over CAT5, 1080p@200M, Dual Station Dual Console, Mask Hotkey Unit Cascading, USB, Audio, Serial, and IR Extension, EXAS-2022

VGA KVM Extender with Serial Audio USB IR 200M

Product Name : VGA KVM Extender with Dual Station, Dual-User Access, Serial, Audio, USB, IR, 200M

Product No : EXAS-2022

Equalizer (sharpness) / gain (brightness) adjustment
Unique design for convenient RGB skew adjustment via
Allow two users to share one computer both in local and remote areas
Capable of dual-user access to share multiple computers when KVM Switch cascaded
No drivers needed or software required

Add to Compare

Q'ty :

Inquiry

VGA KVM Extender over CAT5, 1080p@200M, RGB Skew Correction, Dual Station Dual Console, Mask Hotkey Unit Cascading, USB, Audio, Serial, and IR Extension, EXAS-2022

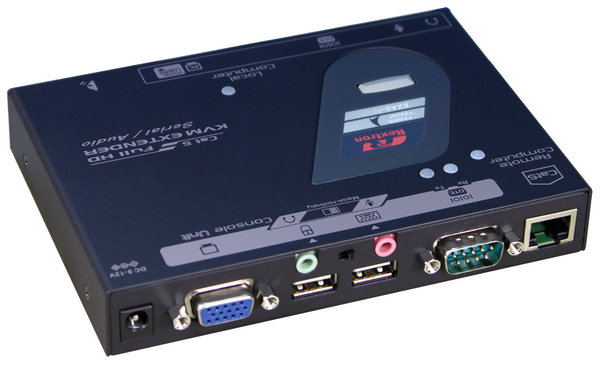

EXAS-2022 = EXAS-202S (Console, USB Device) + EXAS-021P (PC, USB Host)

VGA KVM Extender over CAT5, EXAS-2022, consists of a Console and a Computer unit that allows you to extend VGA and USB signals up to 200 meters (656 feet) over CATx Cabling. Dual Station enables user to setup two PCs in two different locations, one in Console side (EXAS-202S) and the other in PC side (EXAS-021P).

Unique bidirectional audio extension function independently transmits 2-way audio signal from the Transmitter unit to the Receiver unit, and vice versa. Bidirectional audio transmission is beneficial for content creator in video postproduction or in the case of emergency situation for notifying users of the computer or server room operation issues making possible the remote communication and coordination.

IR extension feature supports full frequency IR signal from 38KHz to 56KHz. Furthermore, the pigtail design of the external IR extension unit with 1.4m cable (purchased separately) increasing the distance between the emitter and receiver heads and the IR port on the extender unit gives users flexible and easier way in IR control system installation. That provides a unique strength which is often used in combination with home theater and system integration application.

Full-duplex data communication between Tx and Rx via CAT.x cable connection is the cost effective, hardware-based solution, providing remote access and control for all RS-232 protocol devices without any setup or configuration. RS-232 serial extension is suitable to be applied in digital signage, industrial or commercial office, smart classroom, and smart Home system.

Video Adjustment

To compensate the lengths of CAT 5 cable, there are16 levels on coarse tune and up to 128/256 scales on fine tune are available for adjustment on the equalizer and gain. And, there are 8 levels on coarse tune and 16/32 scales on fine tune are available for skew adjustment on blue, green and red.

Privacy Setting

Users can temporarily disable the video output signal of the Computer Unit and protect the privacy for 5/15/30/60 seconds

Dual-User Access

Dual Console function allows two users (Local and Remote sides) to share one computer. The local console EXAS-021P enables users to access the computer directly, while the remote console EXAS-202S allows users to remotely control the computer as if you were sitting right in front of it. Hotkey functions and push buttons enable the user at Console/ PC Unit to exclusively access the computer.

Cascade Configuration: The dedicated Mask Hotkey function

VGA KVM Extender over CAT5, EXAS-2022 Mask Hotkey Switch located at the rear panel of both Console Unit and Computer Unit can be slid OFF/ON to switch hotkey control between the Computer (Default setting) and KVM Switch (Cascading) accordingly.

The hotkey commands of KVM Switches vary among models, which may cause hotkey errors, unwanted configurations between the Extender Unit and the mixed types of KVM Switches that connect to each other. To prevent from any conflict via hotkey commands in the cascade configuration, Hotkey Mask feature eliminates or simplifies all the hotkey control barriers caused by mixed combinations of KVM Extender and KVM Switch in cascading architecture; through the mask ON, users can bypass the Extender Unit and directly apply the KVM Switch’s built-in hotkey commands to access and configure the KVM Switch. You can easily expand the computers control by adding the Extender with KVM Switch.

Remotely locate the keyboard, mouse and monitor up to 200 meters away from a computer (depends on model)
Support high-resolution video up to 1920 x 1200(WUXGA), 1920 x 1080 (Full HD)
Ability to extend IR control through the CAT5 connection
Equalizer (sharpness) / gain (brightness) adjustment via hotkeys for optimal video quality
Unique design for convenient RGB skew adjustment via hotkeys for the best video quality
Synchronize the video resolution between the attached computers via hotkeys
Dedicated Mask Hotkey function enables direct control in cascading
Allow two users to share one computer both in local and remote areas
Capable of dual-user access to share multiple computers when KVM Switch cascaded
Beep confirmation for key control makes the operation easier and cross-checked
Ideal for professional audio/ video applications
Support the surge protection
Support the HID standard keys
No drivers needed or software required
Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA….WUXGA system

Model Name	EXAS-2022
	EXAS-021P (Computer Unit)	EXAS-202S (Console Unit)
Video Resolution (Max.)	WUXGA (1920 x 1200) / UXGA (1600 x 1200)
Extension Distance	200M
Unit Connection	RJ45 x 1 (Video + Control)
Console Side	Keyboard USB-A x 1 Mouse USB-A x 1 Monitor HDB15-Female x 1 Audio Jack (Speaker + Mic) x 1 Set Serial DB9-Male x 1 (DTE)	Keyboard USB-A x 1 Mouse USB-A x 1 Monitor HDB15-Female x 1 Audio Jack (Speaker + Mic) x 1 Set Serial DB9-Male x 1 (DTE)
Computer Side	Monitor HDB15-Female x 1 (Grey) (for USB + PS/2 Interface) Audio Jack (Speaker + Mic) x 1 Set Serial: DB9-Female x 1 (DCE)	Monitor HDB15-Female x 1 (Grey) (for USB + PS/2 Interface) Audio Jack (Speaker + Mic) x 1 Set Serial: DB9-Female x 1 (DCE)
IR Remote Control	3.5mm x 1 (to IR Receiver)	3.5mm x 1 (to IR Transmitter)
Mask Hotkey Switch	Slide Switch x 1	Slide Switch x 1
Power Supply	DC9~12V (External AC100~240V Power Adpter Included)	DC9~12V (External AC100~240V Power Adpter Included)
Operating Temperature	5~50℃
Serial Baud Rate (Max.)	115200bps
Front Panel LEDs	Local / Remote Status x 2 Serial Status x 2
Push Button	Control Status Selection
Hotkey Control	Yes
Weight (g)	500~520 (each unit)
Dimensions H x W x D (mm)	22 x 140 x 100
