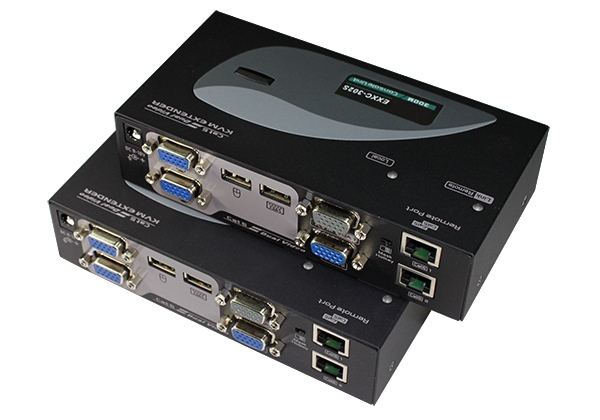

Dual Video VGA KVM Extender with Dual Station and Dual-User Access, 200M
EXXC-2022
The hotkey commands of KVM Switches vary among models, which may cause hotkey errors, unwanted configurations between the Extender Unit and the mixed types of KVM Switches that connect to each other. To prevent from any conflict via hotkey commands in the cascade configuration, Hotkey Mask feature eliminates or simplifies all the hotkey control barriers caused by mixed combinations of KVM Extender and KVM Switch in cascading architecture; through the mask ON, users can bypass the Extender Unit and directly apply the KVM Switch’s built-in hotkey commands to access and configure the KVM Switch. You can easily expand the computers control by adding the Extender with KVM Switch.
- Connect the KVM Extender pair via Category 5 / 5e / 6 UTP cable
- Support the dual view function which can split your window (browser/ work area...) in two
- Remotely locate the keyboard, mouse and monitor up to 200 meters away from a computer
- Support high-resolution video up to 1920 x 1200 (WUXGA), 1920 x 1080 (Full HD)
- Support USB console
- Support the surge protection
- Support the HID standard keys
- Equalizer (sharpness) / gain (brightness) adjustment via hotkeys for optimal video quality
- Unique design for convenient RGB skew adjustment via hotkeys for the best video quality
- Synchronize the video resolution between the attached computers via hotkeys
- Dedicated Mask Hotkey function enables the direct control in cascading
- Simple LED indication makes operation userfriendly
- Applicable for one console to manage one or two computers locally and remotely (varied depending on models)
- Beep confirmation for key control makes the operation easier and cross-checked
- Support most of the mice such as M/S IntelliMouse (Pro), Explorer, Optical, etc.
- Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA….WUXGA system
Model Name |
EXXC-2022 |
|

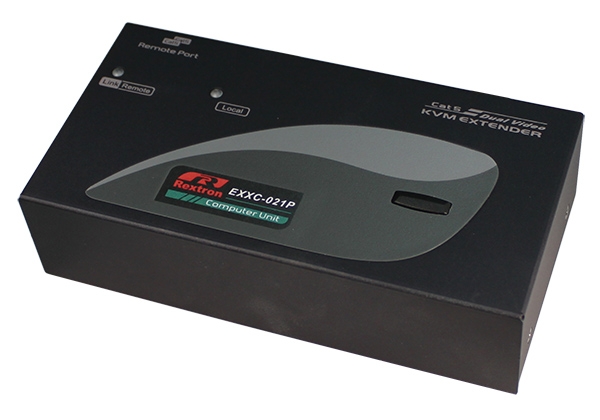

EXXC-021P (Computer Unit) |

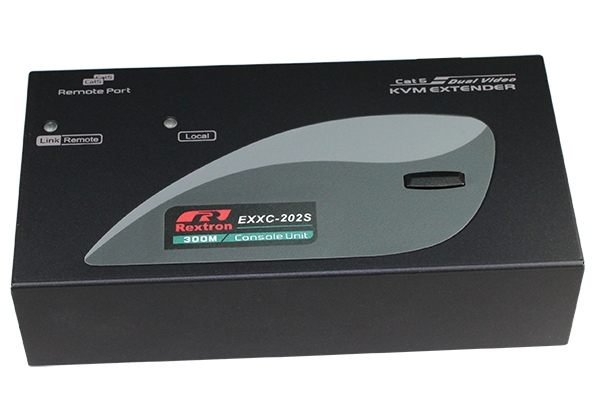

EXXC-202S (Console Unit) |
|
Video Resolution (Max.) |
WUXGA (1920 x 1200) / UXGA (1600 x 1200) |
|
Extension Distance |
200M |
|
Unit Connection |
RJ45 x 1 (Video) |
|
Console Side |
Keyboard |
Keyboard |
Computer Side |
HDB15 Female x 1 |
HDB15 Female x 1 |
Mask Hotkey Switch |
Slide Switch x 1 |
Slide Switch x 1 |
Power Supply |
DC9~12V (External AC100~240V |
DC9~12V (External AC100~240V |
Operating Temperature |
5~50℃ |
|
Serial Baud Rate (Max.) |
115200bps |
|
Front Panel LEDs |
Local / Remote Status x 2 |
|
Push Button |
Control Status Selection |
|
Hotkey Control |
Yes |
|
Weight (g) |
460~530 (each unit) |
|
Dimensions H x W x D (mm) |
39 x 156 x 85 |
