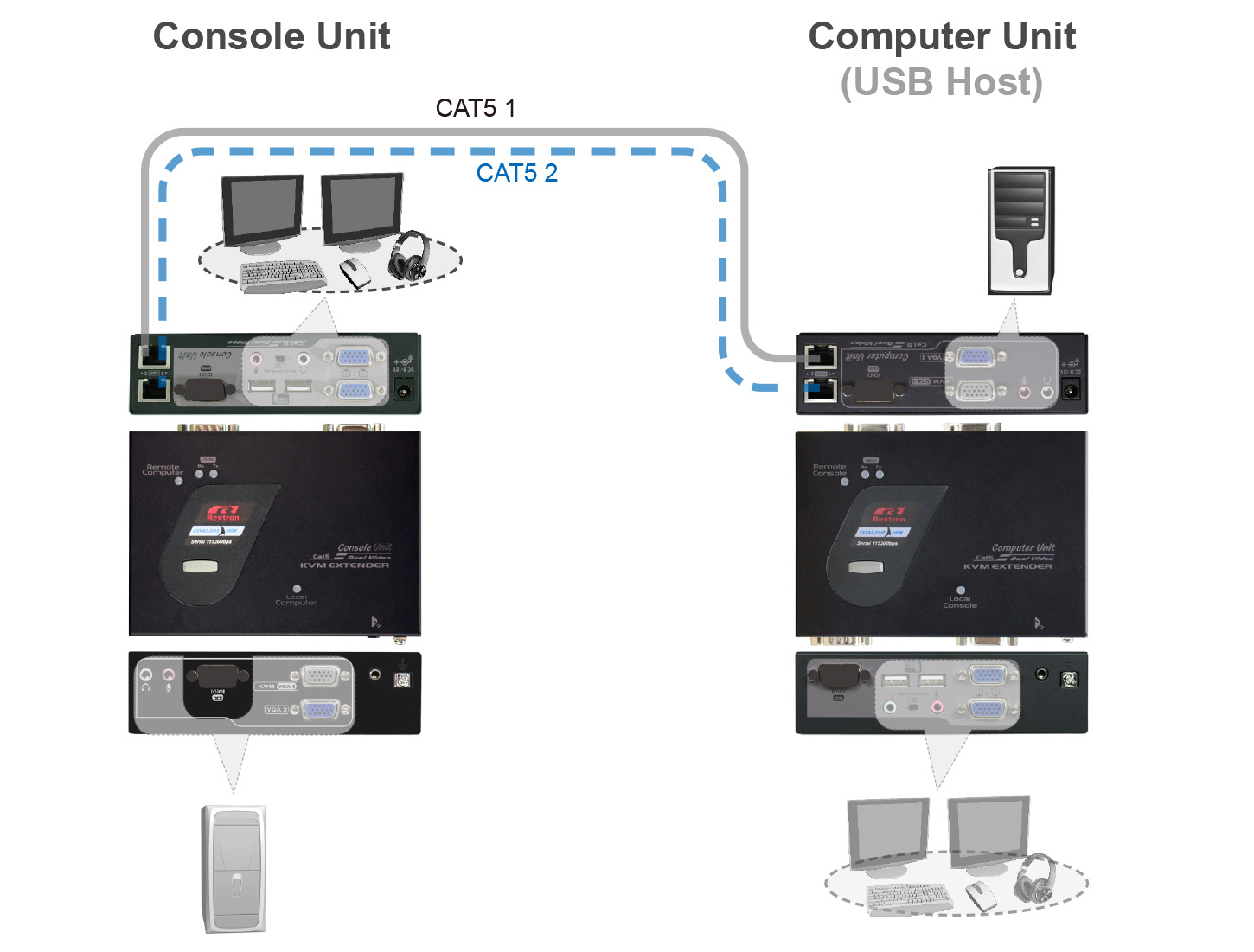

Dual VGA KVM Extender with Dual Station, Dual Console, Audio, USB, 200M
EXXCA-2022
Unique bidirectional audio extension function independently transmits 2-way audio signal from the Transmitter unit to the Receiver unit, and vice versa. Bidirectional audio transmission is beneficial for content creator in video postproduction or in the case of emergency situation for notifying users of the computer or server room operation issues making possible the remote communication and coordination.
IR extension feature supports full frequency IR signal from 38KHz to 56KHz. Furthermore, the pigtail design of the external IR extension unit with 1.4m cable (purchased separately) increasing the distance between the emitter and receiver heads and the IR port on the extender unit gives users flexible and easier way in IR control system installation. That provides a unique strength which is often used in combination with home theater and system integration application.
Video Adjustment
Privacy Setting
Dual-User Access
Cascade Configuration: The dedicated Mask Hotkey function
Model Name |
EXXCA-2022 |
|
EXXCA-021P (Computer Unit) |
EXXCA-202S (Console Unit) |
|
Video Resolution (Max.) |
WUXGA (1920 x 1200) / UXGA (1600 x 1200) |
|
Extension Distance |
200M |
|
Unit Connection |
RJ45 x 1 (Video) |
|
Console Side |
Keyboard |
Keyboard |
Computer Side |
HDB15 Female x 1 |
HDB15 Female x 1 |
IR Remote Control |
3.5mm x 1 (to IR Receiver) |
3.5mm x 1 (to IR Transmitter) |
Mask Hotkey Switch |
Slide Switch x 1 |
Slide Switch x 1 |
Power Supply |
DC9~12V (External AC100~240V |
DC9~12V (External AC100~240V |
Operating Temperature |
5~50℃ |
|
Serial Baud Rate (Max.) |
115200bps |
|
Front Panel LEDs |
Local / Remote Status x 2 |
|
Push Button |
Control Status Selection |
|
Hotkey Control |
Yes |
|
Weight (g) |
630~660 (each unit) |
|
Dimensions H x W x D (mm) |
39 x 140 x 100 |
