4 Ports Dual-Link DVI KVM Switch with Serial, Two-way Audio, Built-in Power, DUKGS-114Q
DUKGS-114Q
DUKGS-114Q, Dual-Link DVI KVM Switch with Serial, Two-way Audio, lets you control four DVI-DL 2560 x 1600 computers with one set of USB Keyboard, Mouse, monitor, and Serial Devices. You can easily switch 4 computers using the user friendly hotkey control function or push buttons of the KVM switch. Real-time USB HID ports provide you amazing seamless HID switching experience.
RS-232 serial switching function on 4 Ports Dual-Link DVI KVM Switch with Serial is especially designed for industrial control and communication purposes to enhance the functionality of KVM and serial devices management and eliminate the need to connect each device to an ASCII terminal or PC.
- Support Audio function
- Support USB console
- Support serial device control
- Support Video Dual-Link with the resolution up to WUXGA (1920 x 1200), WQXGA (2560x 1600)

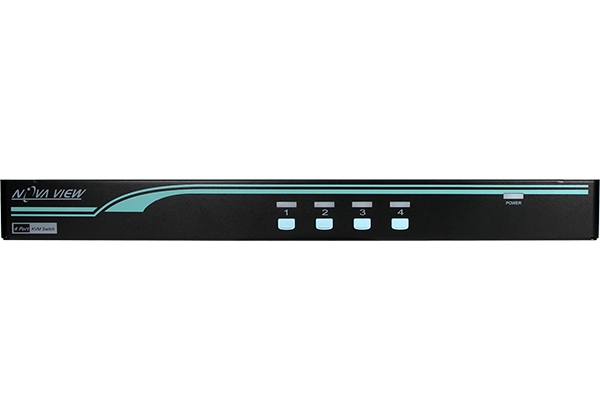

- Front panel pushbuttons for easy computer selection

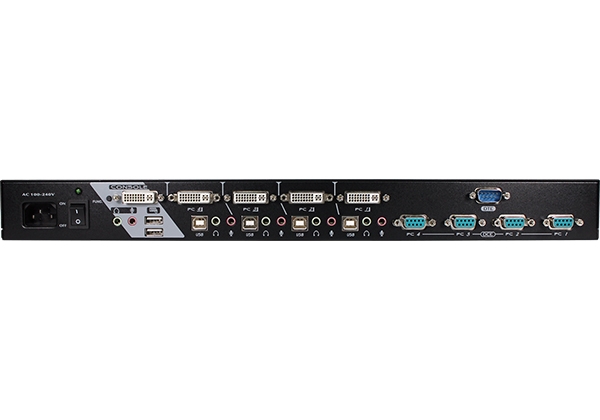

- Rear panel FUNC button for easily adjusting the video signal strength
- No drivers needed for keyboard and mouse operation
- Support keyboard and mouse plug-n-play
- Buzzer sound for computer switching confirmation
- Hotkey functions allow easy computer access
- Activate Auto Scan by front buttons pressing
- Support Windows and Mac host systems
|
Model Name |
DUKGS-114Q |
|
Computer/Server Ports (input) |
DVI x 4 ( Single Display x 4 PCs ) |
|
Console Ports (output) |
DVI x 1 ( Single Display ) |
|
Video Resolution (Max.) |
2560 x 1600 @ 60Hz (4:4:4) |
|
Push Buttons |
Port Selection x 4 |
|
HDCP Compliance |
HDCP 1.4 |
|
Control Methods |
Hotkey / Push Button |
|
LED Indicator (Power / Status) |
Power x 1 |
|
Automatic scan interval |
3, 8, 15, 30 seconds |
|
Power Supply |
Built-In Power |
|
Operation Environment |
0~40°C, Humidity<80% |
|
Storage Temperature |
-20~60°C |
|
Enclosure |
Metal |
|
H x W x D (mm) |
44 x 438 x 180 |
|
Weight (g) |
2600 |
