8 Ports 4K HDMI KVM Switch with USB KM synchronization and Mouse-switching functionality
KNVM-08A2

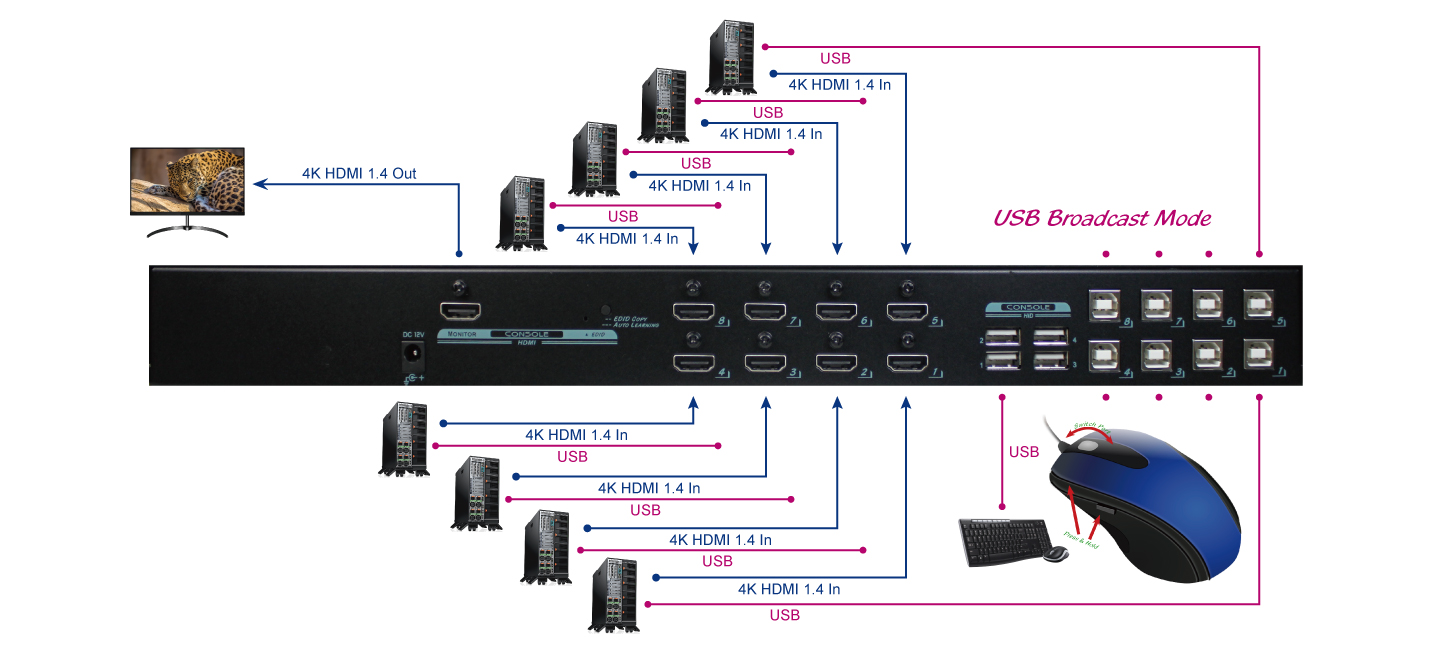

KNVM-08A2, 8 Ports 4K HDMI KVM Switch with USB KM synchronization and Mouse-switching functionality, enables users to access and control up to 8 USB servers or computers with one set of USB keyboard, mouse and HDMI monitor synchronously (Sync-mode) or respectively (Switch-mode).
8 Ports KVM Switch with unique USB KM synchronization
The 8 ports USB synchronous KVM Switch is a compact size, pure hardware solution, and plug-and-play system without any driver or software installation. KNVM-08A2 equips with 4 USB-HID ports, supports resolutions up to 4K 30Hz, provides EDID auto learning and EDID copy functions, complies with HDMI 1.4 standard, and is Windows, MAC OS supported.
Port Switching can be performed via front panel button pressing, hotkey control, and the unique mouse-switching function which switches PCs via clicking the programmable buttons of the connecting mouse.

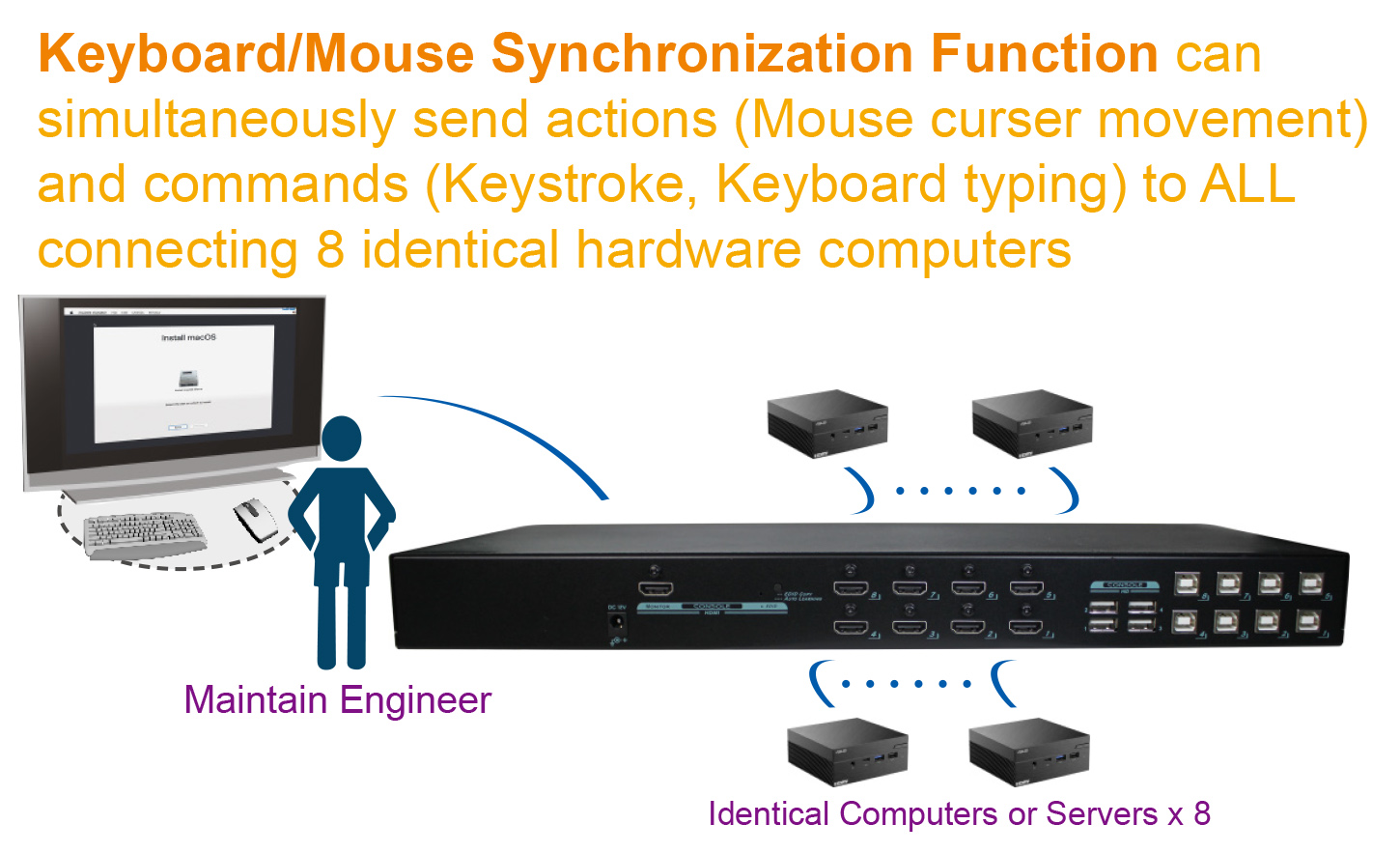

The built-in Keyboard/Mouse Synchronization function can simultaneously send actions (Mouse curser movement) and commands (Keystroke, Keyboard typing) to ALL connecting 8 identical hardware computers, which is the best solution for a batch of computers system installation, debugging, and OS recovering concurrently. USB KM Synchronization provides the most efficient way to install Windows to multiple computers at the same time.
- 8-Port 4K HDMI KVM switch with 4 USB HID peripherals sharing
- Provide 3 ways to control the unit and the connecting PCs via
- Front panel push buttons
- Hotkey control allow easy computer access
- Mouse switching (via the programmable buttons of the connecting mouse)
- Selectable scan time interval
- EDID Copy & Auto EDID Learning functions optimize the resolution for your application
- Built-In HDCP engine for instant port switching ensures uninterrupted video playback and no realignment of Images after switch
- Plug-n-Play system configuration
- Support Windows and Mac host systems
- Mouse synchronization function: KVM Switch can simultaneously sent actions (Mouse) & commands (Keyboard) to ALL connecting 8 identical PCs, easy for Multi-Computers system installation and recovering
Model Name |
KNVM-08A2 |
Computer/Server Ports (input) |
HDMI x 8 ( Single Display x 8 PCs ) |
Console Ports (output) |
HDMI x 1 ( Single Display ) |
Video Resolution (Max.) |
3840x2160@30Hz (4:4:4) |
Push Buttons |
Port Selection x 8 |
HDCP Compliance |
HDCP 1.4 |
Control Methods |
Hotkey / Push Button / Hot-Mouse Key |
LED Indicator (Power / Status) |
Status LED x 1 |
Hot-Mouse Key |
Yes ( Switch via 5 Buttons Mouse ) |
USB KM Synchronization |
Yes |
Automatic scan interval |
3, 8, 15, 30 seconds |
Power Supply |
DC 9~12V |
Operation Environment |
0~40°C, Humidity<80% |
Storage Temperature |
-20~60°C |
Enclosure |
Metal |
H x W x D (mm) |
44 x 436 x 180 |
Weight (g) |
2278 |
