4 Ports 8K HDMI KVM Switch with USB 3.2 Gen 2, HDCP Engine, EDID Management, Serial Control , Audio Embed / Extract
MKAG-8KT3114
4 Ports 8K HDMI KVM Switch with HDCP Engine, EDID, Audio Embedder Extractor, 10Gbps Type-C, Serial Control, MKAG-8KT3114
8K HDMI KVM, MKAG-8KT3114, Rextron 4 ports HDMI switcher with Audio/ KVM/ Serial console supports resolutions up to 7680x4320@60Hz ( 4:4:4, DSC ). The built-in advanced HDCP Engine prevents misalignment issues among port switching. Dedicated USB port on the front and rear side of the KVM unit is suitable for both long-term and temporary USB peripherals access. Unique EDID Copy Button allows 8K HDMI KVM switch to copy or automatically learn EDIDs from the connected monitor. The unique EDID management function ensures optimized picture output without flickering or dark screen issues.
8K HDMI KVM, MKAG-8KT3114, Rextron 4 ports HDMI switcher with Audio/ KVM/ Serial console supports resolutions up to 7680x4320@60Hz ( 4:4:4, DSC ). The built-in advanced HDCP Engine prevents misalignment issues among port switching. Dedicated USB port on the front and rear side of the KVM unit is suitable for both long-term and temporary USB peripherals access. Unique EDID Copy Button allows 8K HDMI KVM switch to copy or automatically learn EDIDs from the connected monitor. The unique EDID management function ensures optimized picture output without flickering or dark screen issues.
PC Hibernation Mode
The flexible energy-saving setting allows the connected PCs to go into sleeping states or stay alert all the time. To enable or disable the energy-saving function, the KVM host port hibernation setting must match the operating system setting.
Port Lock Function (Host PC Port 2~Port 4)
Port Lock Function (Host PC Port 2~Port 4)
The PC port lock function is dedicated and designed for privacy purposes; it allows host ports to be locked or unlocked and prevents the accidental access of the connected PCs.
USB and Audio
USB and Audio
Rextron 4 ports 8K HDMI KVM supports not only USB HID keyboard mouse operation but excellent I/O speed 10Gbps USB 3.2 peripheral sharing without any software or driver installation applicable to Windows, Mac, Linux, and Chrome O.S. A unique tracking system enables the Audio/ USB device to be operated independently, which is useful if you want to listen to music or transfer file data from one particular computer while operating another PC.

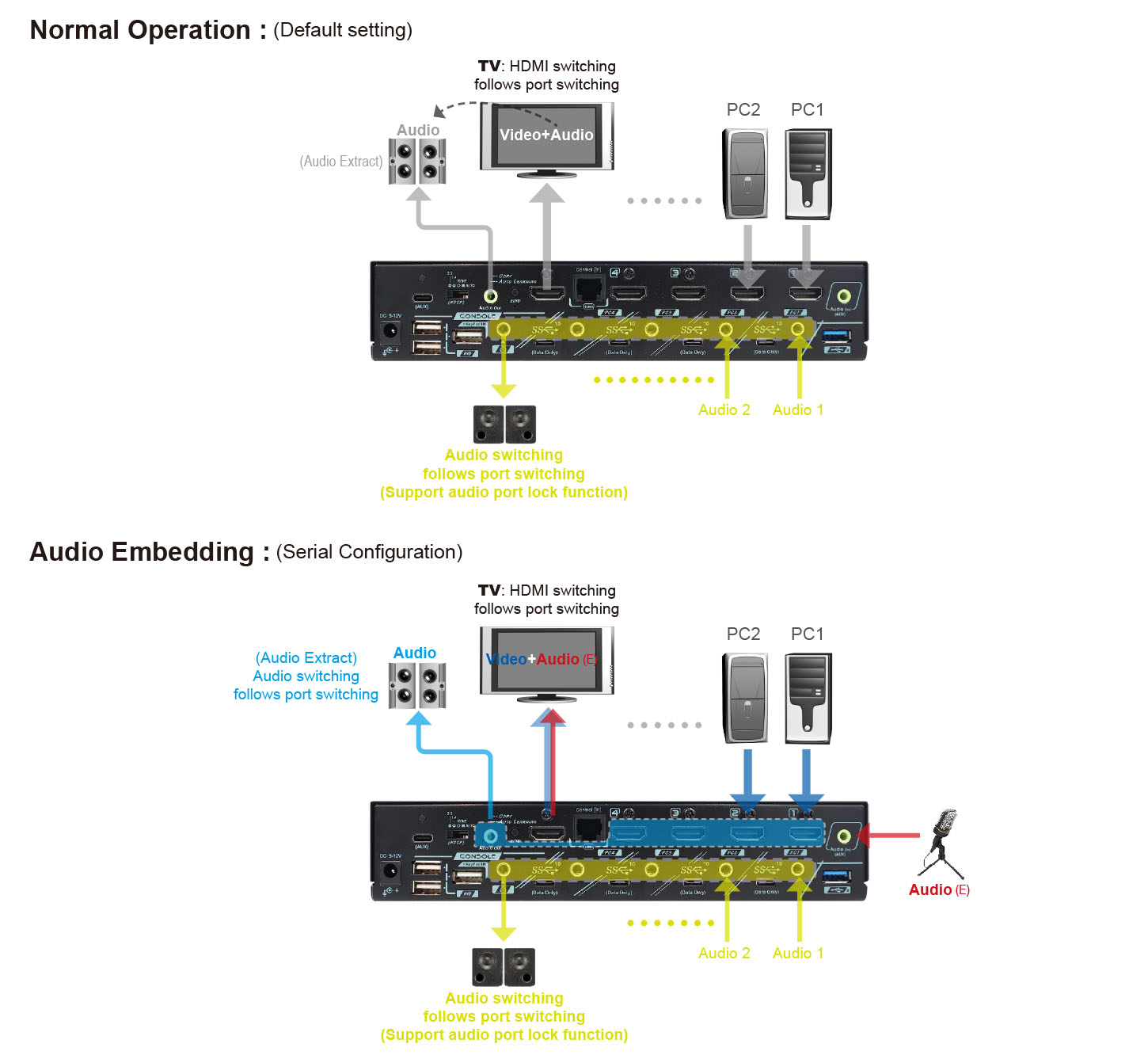

Video Editing and Content Creation: 8K HDMI with Audio Embedder & Audio Extractor
Video Editing and Content Creation: 8K HDMI with Audio Embedder & Audio Extractor
The 8K HDMI and 3.5mm audio inputs bring in multiple audio/video feeds supporting audio embedding and audio de-embedding. Audio embedding function embeds audio from a 3.5-mm analogue stereo audio to an HDMI signal, while the audio de-embedding extracts the HDMI audio to a 3.5mm stereo audio. These functions allow users to diversely incorporate the audio signal for more informative contents such as video editing in adding or subtracting the voiceover sound and background music.
Auto Scan & Manual Scan
Auto Scan & Manual Scan
To monitor the real-time computer status of each PC port, Rextron 8K HDMI KVM Switch supports Auto Scan function to automatically scan power-on computers sequentially at a fixed time interval, and also provides Manual Scan function, via keyboard clicking, to manually select the computer one after another.
Special Design for HDCP Management
Special Design for HDCP Management
Exclusive HDCP slide switch on the rear panel allows users to select the 4 preset HDCP modes:
Mode-1: Auto mode allows HDCP 2.2 or HDCP 1.4 content pass-thru
Mode-2: NONE mode allows non-HDCP content to be played
Mode-3: HDCP 1.4 mode allows HDCP 1.4 content to be licensed
Mode-4: HDCP 2.2 mode allows HDCP 2.2 content to be licensed
Serial Console
Serial Console
8K HDMI KVM switch supports various ways of control that can be done thru front-panel buttons, Hotkey function, or RS-232 serial. The RS-232 serial control, built-in RJ-11 serial interface, provides users easy and friendly KVM operation. The unique Serial Port (RJ-11 to RS-232 Adapter required) supports various Baud-rates of 9,600~115,200 (8 Baud-rates Selectable)
Keypad-IN Function
Keypad-IN Function
The latest KVM maneuvering functionality, Keypad-IN function, is the most cost-effective and user-friendly way to perform KVM Control via wired or wireless Keypad. Just plugging the inexpensive easily bought wireless Keypad into the specific USB hub port of the KVM switch users can enjoy all the KVM control function remotely.
- No Software or driver required for operation
- KVM PC port switching via Standard Numeric Keypad
- Every KEY of the keypad can be customized with specific command line (Contact Rextron for Customization)
- Allows 4 Computers Share 1 Set of KVM Console
- Most Popular Resolutions Supported by HDMI 2.1 Up to 8K@60Hz
- HDR / DSC / VRR Support for Best Visual Experience
- HDCP 2.2 / 1.4 Compliance Ensures Uninterrupted Video Playback
- HDCP Engine Ensures Low-Latency Switching
- HDCP Management Allows Selection of Proper HDCP Version
- EDID Management, Including HDMI 2.1 ( FRL ) & HDMI 2.0 ( TMDS ) EDIDs, Ensures Display Compatibility
- Audio Embed/Extract Allows User to Insert External Audio into the HDMI Audio Stream
- Front USB Allows Easy Access
- 10Gbps USB 3.2 Sharing Provides Excellent Speed
- Independent Switching of USB 3.2 & Audio
- 3 Flexible Switching Control Methods :
- Front Push Buttons
- Hotkey Control
- Serial Control
- Keypad-IN Function
- Plug-and-Play without Software or Driver
- Manual-Scan / Auto-Scan and Selectable Scan Interval
- Suitable Applications Includes Office, SOHO, Gaming
|
Model Name |
MKAG-8KT3114 |
|
Computer/Server Ports (input) |
HDMI 2.1 x 4 ( Single Display x 4 PCs ) |
|
Console Ports (output) |
HDMI 2.1 x 1 ( Single Display ) |
|
Video Resolution (Max.) |
7680x4320 @ 60Hz ( 4:4:4 ) |
|
Push Buttons |
Port Selection x 4 |
|
Slide Switch |
HDCP x 1 ( Auto / 1.4 / None ) |
|
HDCP Compliance |
HDCP ( 2.2 & 1.4, with Engine ) |
|
Control Methods |
Keypad-IN |
|
LED Indicator (Power / Status) |
Computer Ready x 4 (Green) |
|
EDID Management |
Copy / Auto / Default |
|
HDCP Engine |
Yes ( On Each Video Input Port ) |
|
Automatic scan interval |
3, 8, 15, 30 seconds |
|
Power Supply |
DC 9~12V |
|
Operation Environment |
0~40°C, Humidity<80% |
|
Storage Temperature |
-20~60°C |
|
Enclosure |
Metal |
|
H x W x D (mm) |
44 x 220 x 130 |
|
Weight (g) |
1000 |
