4K DisplayPort Video Extender over Fiber with Audio, IR, Serial (up to 10KM) (Single-Mode)

DisplayPort Extender with Fiber Optic, FVPS-M033, consists of a Transmitter (Host) and a Receiver (Device) unit that allows you to extend 4K DisplayPort video/ Audio/ IR/ RS-232 signals over SC S-M Fiber Optic Cabling. It transmits 4K DisplayPort video up to 10 kilometers (32800 ft) through a single SC Duplex Single-Mode fiber cable in a point to point configuration.This 4K DisplayPort Fiber Optic Extender supports most popular signal resolutions up to 4K 30Hz at (4:4:4) color sampling and is ideal for the most demanding applications.

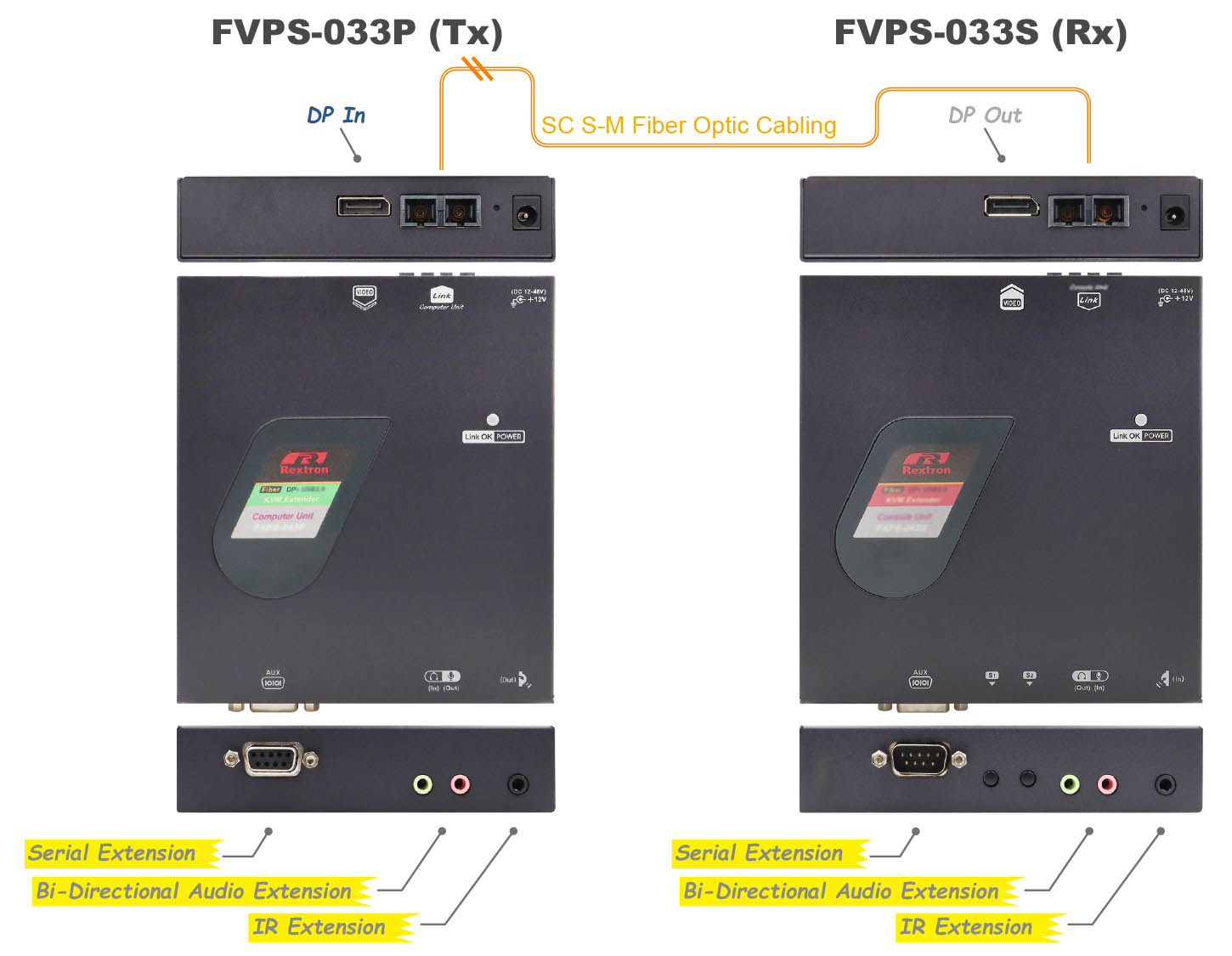

Comprising a compact Transmitter and Receiver pair (models FVPS-033P & FVPS-033S respectively), the FVPS-M033 4K DisplayPort Extender with Fiber Optic can be installed in minutes and requires no special programming. Using fiber optical cable provides a lot of advantages over traditional copper-based extension methods, involving thinner and lighter cables, immunity to RF and magnetic interference, and much longer extension distances up to 10KM. That means the benefits of the DisplayPort Fiber Optic Extender like EMI-free, long-distance transmission, reliability, and efficiency far outweigh its higher cost. It is great for uses in electronically “noisy” environments such as factory shop floors or medical applications.

Exclusive Economic Solution for Aviation and Marine Application Supports 2048 x 2048 Resolution

DisplayPort Extender with Fiber Optic, FVPS-M033, supports a unique resolution of 2048 x 2048 for air traffic control and marine radar application. Instead of purchasing an expensive 2048 x 2048 radar display, users can get a normal screen and set Rextron Fiber Extender between the monitor and the video source to accurately display the 2048 x 2048 resolution.

The 10KM 4K DisplayPort Extender with Fiber Optic with speaker and MIC audio functions provides comprehensive management of EDID (Extended Display Identification Data) to ensure that the computer is displayed at the optimal resolution and format without any compatibility issue. With the serial extension function it enables users to control RS-232 devices remotely, mostly for Projectors, Central Control System, POS system, AV Switches, Printers, etc. A simple OSD menu feature is to show up and setup its baud rate speed information with the range from 1200 to 115200bps.

The 4K DisplayPort Extender with Fiber Optic with Windows, Linux, Chrome and MAC OS supported is perfect for data centers, offices, control rooms, airports, server rooms or the factories applications. Rextron also offers a series of DVI Fiber KVM Extenders, and HDMI Fiber KVM Extenders to meet users’ application need. An interoperable design for various interfaces of HDMI, DisplayPort and DVI, provides great flexibility to satisfy different installation requirements at customers’ environment.

2-Way Audio with Unique Audio Embedding/ De-Embedding Function

Bi-directional audio extension function is activated and can independently transmit 2-way audio signal from the DisplayPort Extender with Fiber Optic Transmitter unit to the DisplayPort Extender with Fiber Optic Receiver unit, and vice versa. Audio embedder/ extractor function can independently transmit the audio signal from the Transmitter unit to the Receiver unit, embed audio from a 3.5-mm source to a DisplayPort signal or extract DisplayPort audio to a 3.5mm stereo audio, which provides the second audio transmission channel that would be beneficial for the content creator in video postproduction or audio broadcasting with the installation of home cinema amplifier.
