Product Name : 4K DisplayPort Video Extender over Fiber with Audio, IR, Serial (up to 1KM) (Multi-Mode)
Product No : FVPS-M043
Read More
Product Description
  • Allows Reliable Remote Access of a Video Source via a Fiber Cable Up to 1KM ( 3,280 feet )
  • DisplayPort Video Supports Most Popular Resolutions Up to 4K@30Hz ( 4:4:4 )
  • Support Radar Display, 2048x2048@60Hz ( 4:4:4 ) 2Kx2K LCD Display for Air Traffic Control
  • HDCP 1.4 Compliance Ensures Uninterrupted Video Playback
  • Smart Audio Extension Allows Embeded Audio and Audio Extraction
  • IR Extension from Console Unit to Computer Unit Facilitates IR Control of AV Sources
  • Serial Extension with Selectable Baud Rate Allows for Extensive Control Applications
  • Immunity to High EMI Environment by Fiber System
  • Plug-and-Play, No Driver or Software Required
  • Support Windows / Mac / Linux / Chrome O.S.
  • 2048 x 2048
  • 4K 30
  • Bidirectional IR Extension
  • RS 232 Extension
  • Fiber Multi-Mode
  • EDID Management
  • HDCP 1.4
4K DisplayPort Optical Extender with Multi-Mode, Audio, IR, Serial, Up to 1KM, FVPS-M043
FVPS-M043 = FVPS-043P (Transmitter) + FVPS-043S (Receiver)

DisplayPort Optical Extender, FVPS-M043, consists of a Transmitter (Host) and a Receiver (Device) unit that allows you to extend DP/ Audio/ IR/ RS-232 signals over SC M-M Fiber Optic Cabling. It transmits 4K DisplayPort video up to 1000 meters (3280 ft) through single SC Duplex Multi-Mode fiber cable in a point to point configuration.This 4K DisplayPort Fiber Optic Extender supports most popular signal resolutions up to 4K 30Hz at (4:4:4) color sampling and is ideal for the most demanding applications.

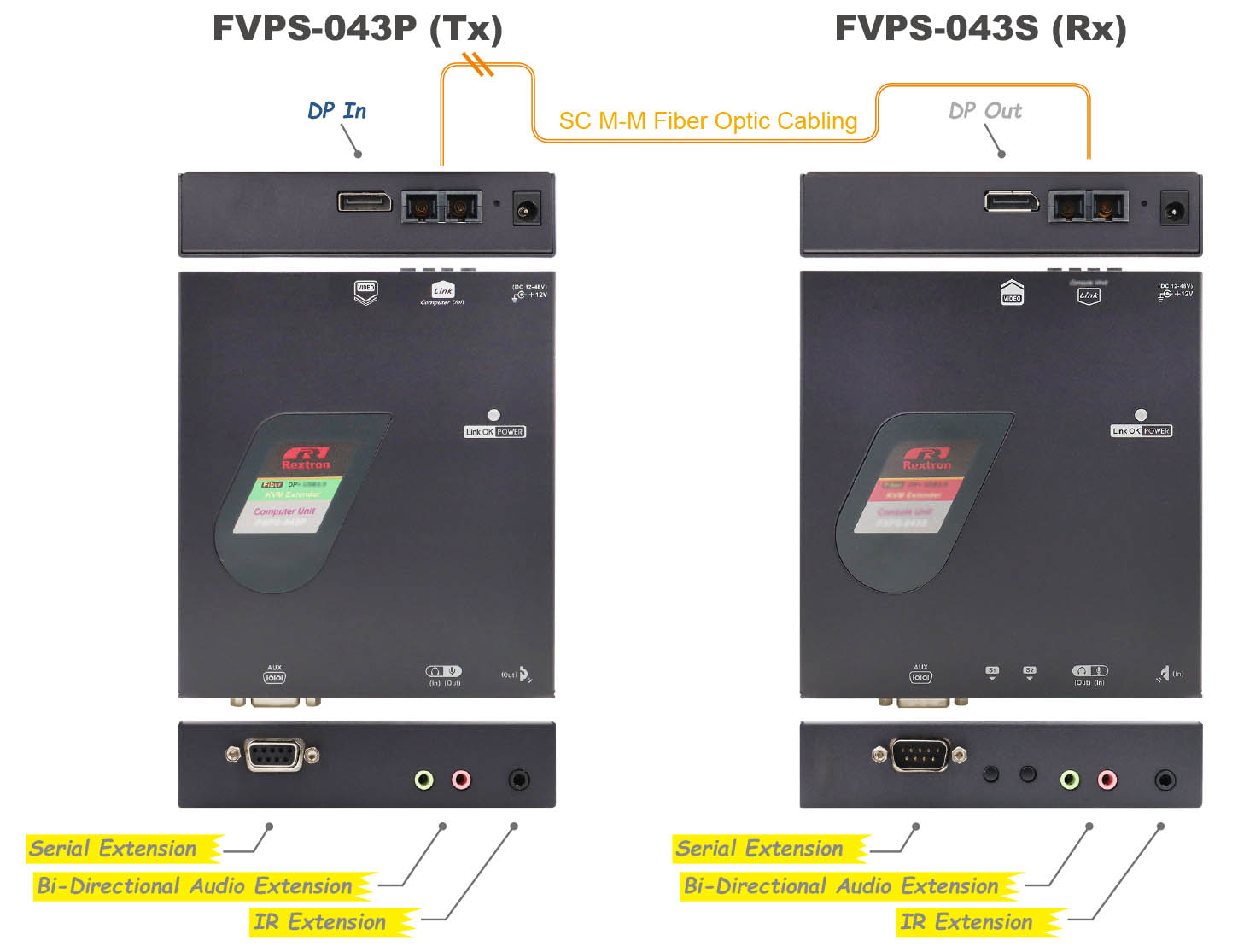

DisplayPort Optical Extender-IO

Comprising a compact Transmitter and Receiver pair (models FVPS-043P & FVPS-043S respectively), the FVPS-M043 4K DisplayPort Optical Extender can be installed in minutes and requires no special programming. Using fiber optical cable provides a lot of advantages over traditional copper-based extension methods, involving thinner and lighter cables, immunity to RF and magnetic interference, and much longer extension distances up to 1KM. That means the benefits of the DisplayPort Fiber Optic Extender like EMI-free, long-distance transmission, reliability, and efficiency far outweigh its higher cost. It is great for uses in electronically “noisy” environments such as factory shop floors or medical applications.


Exclusive Economic Solution for Aviation and Marine Application Supports 2048 x 2048 Resolution

DisplayPort Optical Extender, FVPS-M043, supports a unique resolution of 2048 x 2048 for air traffic control and marine radar application. Instead of purchasing an expensive 2048 x 2048 radar display, users can get a normal screen and set Rextron Fiber Extender between the monitor and the video source to accurately display the 2048 x 2048 resolution.


The 1KM 4K DisplayPort Optical Extender with speaker and MIC audio functions provides comprehensive management of EDID (Extended Display Identification Data) to ensure that the computer is displayed at the optimal resolution and format without any compatibility issue. With the serial extension function it enables users to control RS-232 devices remotely, mostly for Projectors, Central Control System, POS system, AV Switches, Printers, etc. A simple OSD menu feature is to show up and setup its baud rate speed information with the range from 1200 to 115200bps.

The 4K DisplayPort Optical Extender with Windows, Linux, Chrome and MAC OS supported is perfect for data centers, offices, control rooms, airports, server rooms or the factories applications. Rextron also offers a series of DVI Fiber KVM Extenders, and HDMI Fiber KVM Extenders to meet users’ application need. An interoperable design for various interfaces of HDMI, DisplayPort and DVI, provides great flexibility to satisfy different installation requirements at customers’ environment.


2-Way Audio with Unique Audio Embedding/ De-Embedding Function

Bi-directional audio extension function is activated and can independently transmit 2-way audio signal from the 4K DisplayPort Optical Extender Transmitter unit to the 4K DisplayPort Optical Extender Receiver unit, and vice versa. Audio embedder/ extractor function can independently transmit the audio signal from the Transmitter unit to the Receiver unit, embed audio from a 3.5-mm source to a DisplayPort signal or extract DisplayPort audio to a 3.5mm stereo audio, which provides the second audio transmission channel that would be beneficial for the content creator in video postproduction or audio broadcasting with the installation of home cinema amplifier.

  • Allows Reliable Remote Access of a Video Source via a Fiber Cable Up to 1KM ( 3,280 feet )
  • DisplayPort Video Supports Most Popular Resolutions Up to 4K@30Hz ( 4:4:4 )
  • Support Radar Display, 2048x2048@60Hz ( 4:4:4 ) 2Kx2K LCD Display for Air Traffic Control
  • HDCP 1.4 Compliance Ensures Uninterrupted Video Playback
  • Smart Audio Extension Allows Embeded Audio and Audio Extraction
  • IR Extension from Console Unit to Computer Unit Facilitates IR Control of AV Sources
  • Serial Extension with Selectable Baud Rate Allows for Extensive Control Applications
  • Immunity to High EMI Environment by Fiber System
  • Plug-and-Play, No Driver or Software Required
  • Support Windows / Mac / Linux / Chrome O.S.
  • Interoperability among HDMI / DVI / DisplayPort Models ( Fiber Interface Must be The Same )
  • Allows Wide Power Input Range DC 12~48V
  • KVM Extender Models with USB 2.0 Extension Also Available

Model Name

FVMS-M043

FVMS-043P (Computer Unit)

FVMS-043S (Console Unit)

  MAX.Resolution

3840x2160@30Hz ( 4:4:4 )
2048x2048@60Hz ( 4:4:4 )

  Video Interface

HDMI Input x 1

HDMI Output x 1

  Speaker Extension

3.5mm SPK Jack x 1 ( In )
( Audio Embed Function )

3.5mm SPK Jack x 1 ( Out )
( Audio Extract Function )

  Microphone Extension

3.5mm MIC Jack x 1 ( Out )

3.5mm MIC Jack x 1 ( In )

  Serial Extension

DB-9 x 1 ( RS-232 DCE )

DB-9 x 1 ( RS-232 DTE )

  Push Buttons

Reset x 1

Reset x 1, Function x 2

  LED Indicators

Status x 1

  HDCP Compliance

HDCP 1.4

  Fiber Link Port

1.25Gbps Multi-Mode SC Duplex x 1
( Wavelength : 850nm )

  SC Fiber Cable

Duplex OM2 or OM3 or OM4 ( 50/125 μm)

  Extension Range

MAX. 1KM with OM3 or OM4
MAX. 250M with OM2

  Power Supply

DC 12V~48V

DC 12V~48V

  Operation Environment

0~40°C, Humidity<80%

  Storage Temperature

-20~60°C

  Enclosure

Aluminum

  H x W x D (mm)

27 x 121 x140

27 x 130 x 140

  Weight ( g )

350

380

DisplayPort Optical Extender with Serial
