Product Name : 4 Ports Dual Monitor 4K HDMI KVM Switch with USB 3.2 Gen 1, Audio, Hotkey Control
Product No : MKAG-E3124
Read More
Product Description
  • 4 Port HDMI USB 3.2 Gen 1 4K KVM Switch
  • Support Dual Display Output
  • Allow 4 computers to share multiple USB peripherals ( 4 x HID Devices + 2 x USB 3.2 Gen 1 Devices )
  • Max resolution is up to 3840 x 2160@30Hz
  • HDCP compliance supported in Each Port ( HDCP engine ), Ensure video play continuation
  • EDID Auto learn & EDID COPY function included for best compatibility
  • Dual Display
  • 4K 60 420
  • 4K 30
  • USB 3.2 GEN 1
  • USB2.0
  • USB HID
  • Hotkey Control
  • EDID Management
  • HDCP 1.4

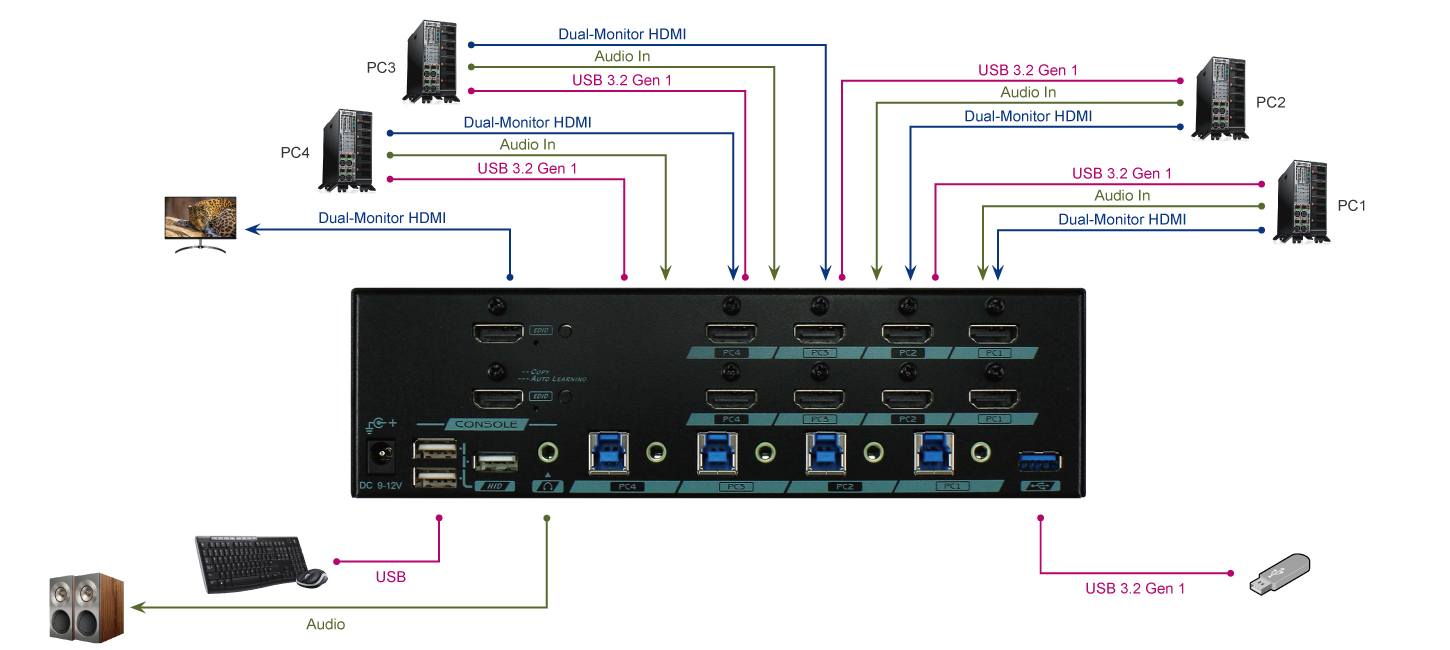

The MKAG-E3124, 4 Ports 4K Dual Monitor HDMI KVM Switch with Audio and USB 3.2 Gen 1, enables the user to control four 4K HDMI computers with one set of USB Keyboard, Mouse and dual Monitors. User can easily switch among four 4K HDMI computers with hotkey or front panel buttons. The built-in HDCP and EDID engine on each HDMI port ensures the optimal and continuous display performance. USB 3.2 Gen 1 Port provides excellent I/O speed. No latency, real-time USB port switching presents you an amazing operation experience.

Rextron KVM switch Dual Monitor function supports not only the mainstream but the latest PC graphics cards for multiple monitor setups to extend your desktop and expand the work area across displays, which help enhance productivity and is ideal for content creator, graphic designer, CAD and CAM designer, and users in educational and financial institutions to work efficiently.

Dedicated USB 3.2 Gen 1 ports on front and rear panels are suitable for both long-term and temporary USB peripherals access and allow users to attach or detach USB devices with ease. The Real-time USB HID ports give you an amazing seamless HID switching experience and the USB 3.2 Gen 1 ports provide excellent 5 Gbps I/O speed. MKAG-E3124 is Windows, Mac, Linux, and Chrome OS supported, HDCP compliant.

  • Support Dual Display Output
  • Max resolution is up to 3840 x 2160@30Hz
  • Allow 4 computers to share 4 USB peripherals ( 4 x HID Devices + 2 x USB 3.2 Gen 1 Devices )

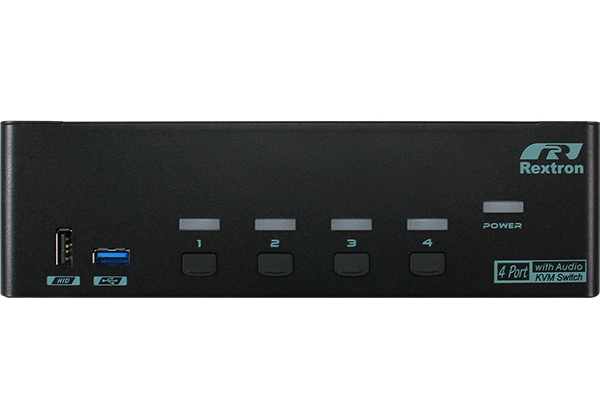

  • Front panel buttons/Hotkey for easy computer selection
  • Support keyboard and mouse plug-n-play without drivers
  • Front panel Auto Scan button function
  • Selectable Scan Time interval
  • Support Windows and Mac system and no software required
Highlight Features

  • HDCP compliance supported in Each Port (HDCP engine), Ensure video play continuation
  • EDID Auto learn & EDID COPY function included for best compatibility
  • No Delay, Real-time HID USB port switch feature presents you amazing seamless HID operation experience
  • Front USB / USB HID Port design for easy application of USB devices
  • USB 3.2 Gen 1 provides excellent speed

Model Name

MKAG-E3124

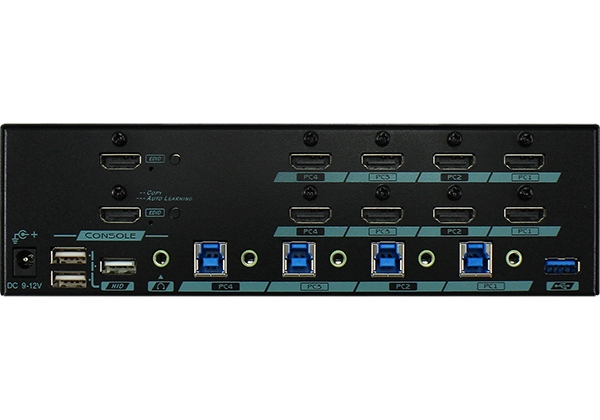

  Computer/Server Ports (input)

HDMI x 8 ( Dual Display x 4 PCs )
USB 3.2 Gen 1 Type B x 4
Audio Jack in x 4

  Console Ports (output)

HDMI x 1 ( Dual Display )
USB 3.2 Gen 1 Type A x 2 (Rear & Front)
USB HID Type A x 4 (Rear & Front)
Audio Jack out x 1

  Video Resolution (Max.)

3840x2160@30Hz (4:4:4)

  Push Buttons

Port Selection x 4
 Auto EDID & EDID Copy Function x 2

  HDCP Compliance

HDCP 2.2 / 1.4

  Control Methods

Hotkey / Push Button

  LED Indicator (Power / Status)

Computer Ready x 4 (Green)
Computer Selected x 4 (Red)
EDID Copy x 2
Power x 1

  EDID Management

Copy / Auto / Default

  Automatic scan interval

3, 8, 15, 30 seconds

  Power Supply

DC 9~12V

  Operation Environment

 0~40°C, Humidity<80%

  Storage Temperature

-20~60°C

  Enclosure

Metal

  H x W x D (mm)

60 x 220 x 130

  Weight (g)

1350

4K UHD Dual Video 4-Port HDMI USB 3.2 Gen 1 KVM Switch with HDCP Engine & EDID Copy
