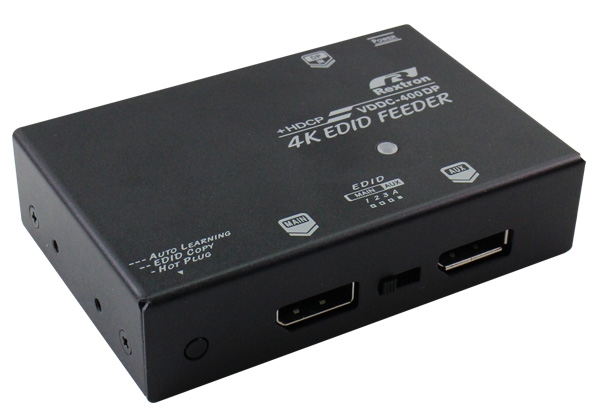

4K DisplayPort EDID Feeder with Splitter
VDDC-400DP
DisplayPort Ghost, 1x2 DP Splitter, DP++, 4K@30Hz,HDCP, VDDC-400DP
VDDC-400DP, DisplayPort Ghost, distributes DP video out to 2 DP Monitors. The build-in HDCP key acts as a coordinator between the source and the display device to ensure continuous digital video streaming
EDID Feeder: DDC Ghost
VDDC-400DP, DisplayPort Ghost, distributes DP video out to 2 DP Monitors. The build-in HDCP key acts as a coordinator between the source and the display device to ensure continuous digital video streaming
EDID Feeder: DDC Ghost
EDID Auto Learning and EDID Copy functions allow the DisplayPort Ghost either to read the necessary EDID information from the splitter unit itself or to copy EDID from the EDID compliant monitors (DP1 or DP2), which ensures the accurate output display. DisplayPort Ghost, VDDC-400DP, aggregates EDID Feeds from either DP 1 (Main) or DP 2 (Aux) compliant monitor and supports both Permanent (EDID Copy) and Temporary (EDID Auto Learning) EDID configurations.
NOTE: EDID Auto Learning records the EDID information but the EDID data will be erased after hot plug or power off
- 2-Port 4K30Hz DisplayPort Splitter
- Display Emulator, DDC Ghost, emulates a display connected to the PC/ Player/ Console
- EDID Copy allows the unit to copy or automatically learn EDIDs from the connected display(s)
- Allow restoring 4 set of EDID information
- HDCP Key ensures the smooth and optimum video display
- Support DP ++ for better compatibility and applicability
- Support resolution up to 4K30Hz
- Work with any operating system, no software installation required
- Support over 100 popular resolution
Model Name |
VDDC-400DP |
MAX. Video Resolution |
3840x2160@30Hz ( 4:4:4 ) |
Video Input |
DisplayPort x 1 |
Video Output |
DisplayPort x 1 (Main) (DP++) |
EDID Memories |
Main HDMI x 3 |
Slide Switch |
EDID Copy x 1 ( Main HDMI x 3 and Aux HDMI x 1 ) |
Push Button |
Copy x 1 |
LED Indicator |
Status x 1 |
HDCP Compliance |
HDCP 1.4 |
Power Supply |
DC 5V ( Mini-USB ) |
Operating Environment |
0~40°C, Humidity<80% |
Storage Temperature |
-20~60°C |
Enclosure |
Metal |
H x W x D (mm) |
24 x 98 x 64 |
Weight (g) |
200 |
