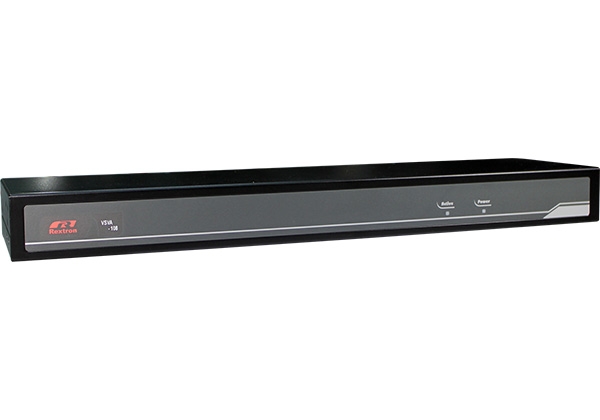

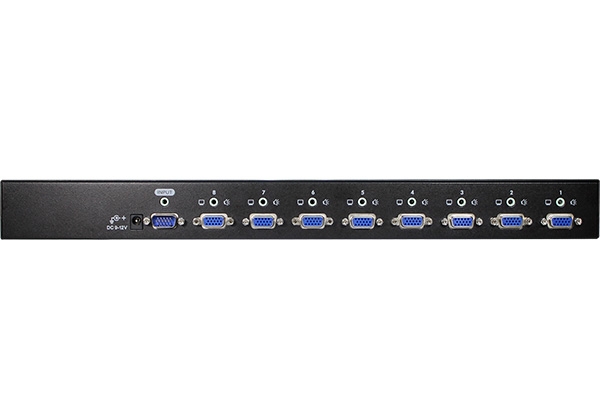

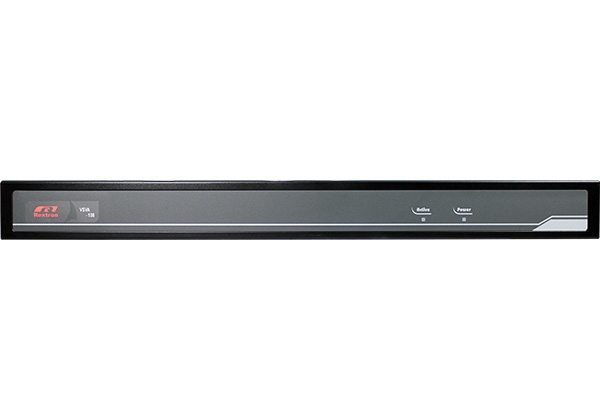

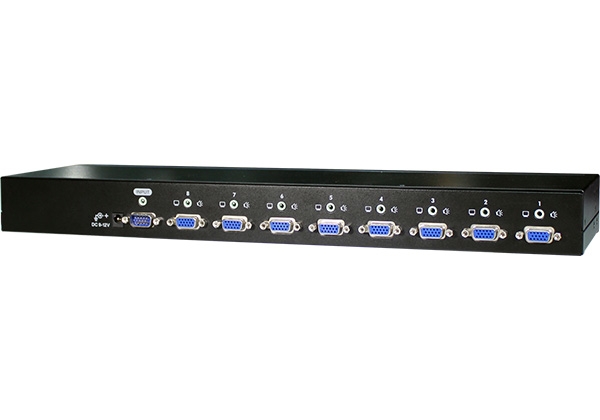

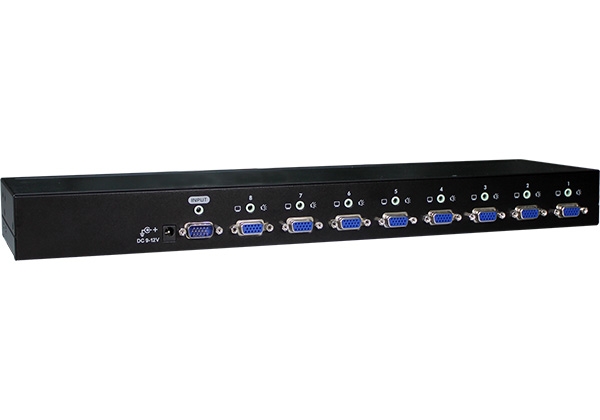

8 Ports VGA Video Splitter with Audio
VSVA-108

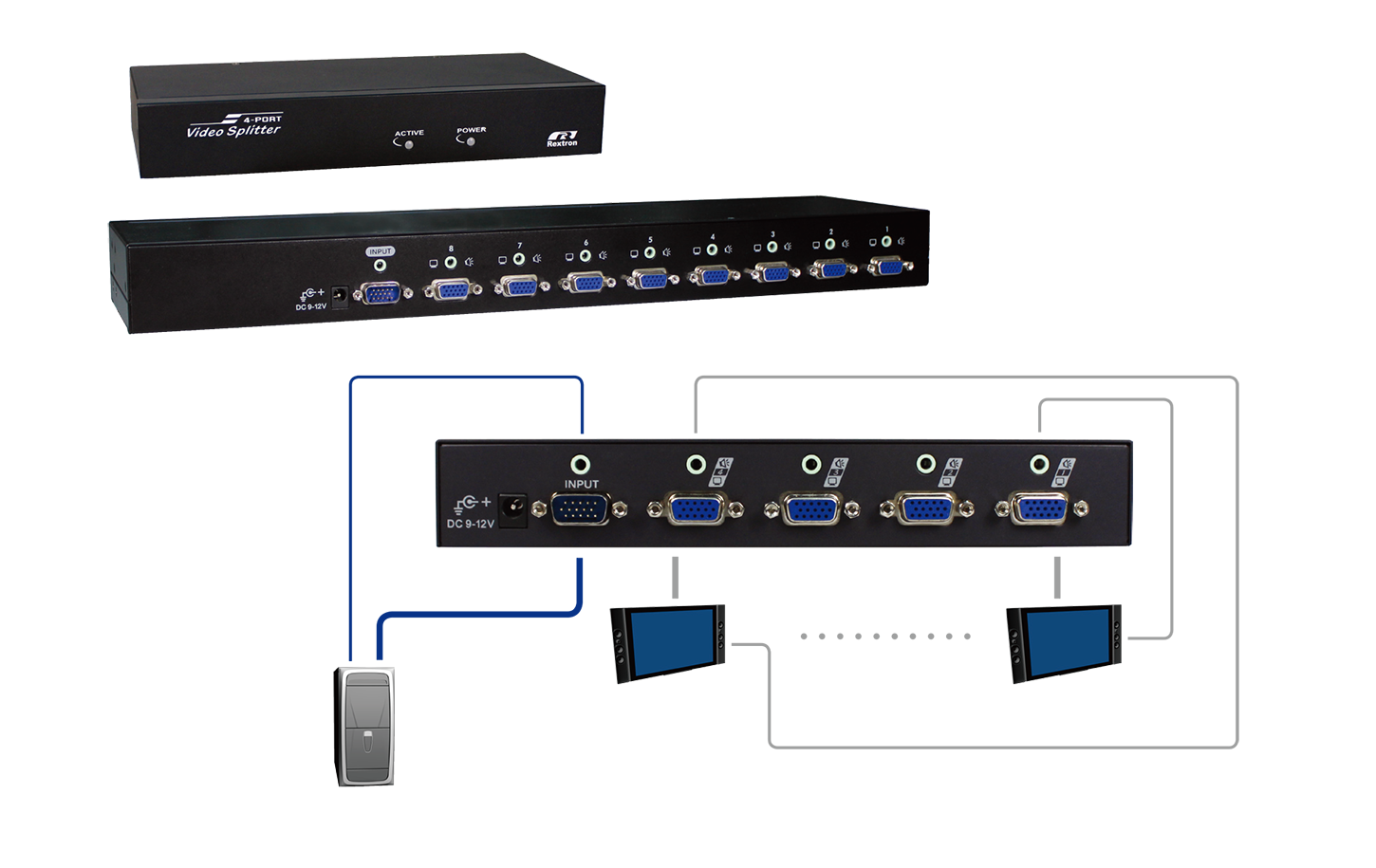

VGA Splitter, VSVA-108 broadcast the same video signals from one VGA+Audio source to 8 VGA+Audio outputs respectively, and the broadcast can be expanded significantly when several splitters are cascaded together. There is no need for software or interface card installation. Just connect the cables, power up the system and you are ready to have duplicated video images for multiple monitors with excellent clarity. Depending on the length and cable quality, superb high bandwidth circuit enables high-resolution VGA signal of 350MHz to be displayed on multiple monitors.
Moreover, VGA Splitter VSVA series come with rack mountable size and can be easily mounted on the rack for space saving. This flexible solution that accommodates multiple digital video displays is especially suitable for applications of public broadcasting.
-
Duplicate one VGA+ Audio input to multiple VGA+Audio outputs
- Support up to 1920 x 1440 resolution
- Effective transmission distance: 65M (210ft)with UL-2919 rated VGA cables
- Automatic power-save when VGA input is lost
- Applicable to VGA, SVGA, and multi-sync monitors
- VGA cascadable for maximizing the management capacity
- Crisp clear VGA images
|
Model Name |
VSVA-108 |
|
Video Resolution (Max.) |
1920x1440@60Hz ( 4:4:4 ) |
|
Video Input |
VGA x 1 |
|
Video Output |
VGA x 8 |
|
Audio Input |
3.5 mm Audio Jack x 1 |
|
Audio Output |
3.5 mm Audio Jack x 8 |
|
LED Indicator |
Power LED x 1 |
|
Power Supply |
DC 9V |
|
Operation Environment |
0~40°C, Humidity<80% |
|
Storage Temperature |
-20~60°C |
|
Enclosure |
Metal |
|
Dimension H x W x D (mm) |
44 x 440 x 180 |
|
Weight (g) |
X |
