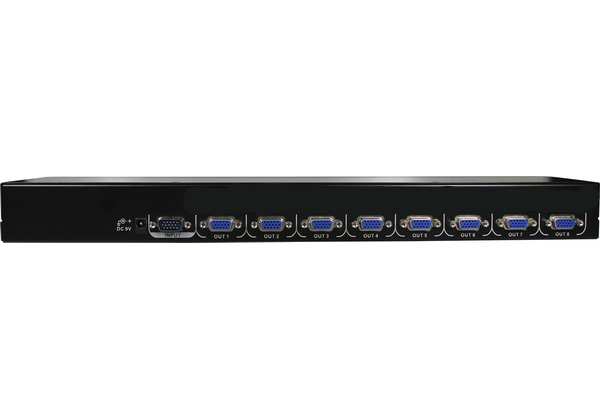

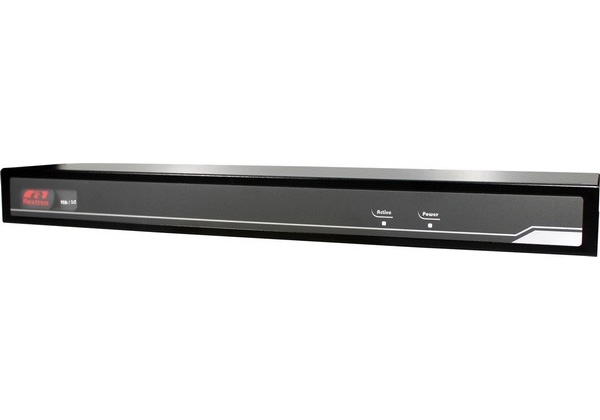

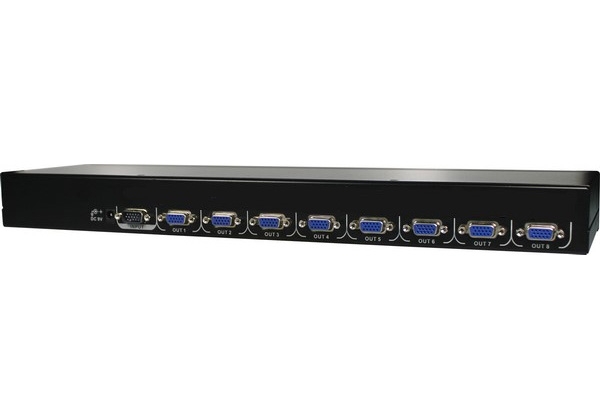

Product Name : 8 Ports VGA Video Splitter
Product No : VSA-108
Read More
Product Description
  • Duplicate one Video input to multiple outputs
  • Support display resolutions of up to UXGA (1600 x 1200), WUXGA (1920 x 1200), 1920 x 1440
  • The cascaded operation for increased signal outputs
  • Rackmountable
  • Accurate and reliable reproduction of video signals without attenuation and distortion
8 Ports VGA Splitter, VSA-108 broadcast the same video signals from one VGA source to 8 VGA outputs respectively, and the broadcast can be expanded significantly when several splitters are cascaded together. There is no need for software or interface card installation. Just connect the cables, power up the system and you are ready to have duplicated video images for multiple monitors with excellent clarity. Depending on the length and cable quality, superb high bandwidth circuit enables high-resolution VGA signal of 350MHz to be displayed on multiple monitors.

Moreover, 8 Ports VGA Splitter comes with rack mountable size and can be easily mounted on the rack for space saving. This flexible solution that accommodates multiple digital video displays is especially suitable for applications of public broadcasting.
  • Duplicate one Video input to multiple outputs
  • Automatic power-save when Video input is lost
  • Support display resolutions of up to UXGA (1600 x 1200), WUXGA (1920 x 1200), 1920 x 1440
  • Compatible with most of the popular screen resolution to XGA, SXGA, XGA, WSXGA ….Full HD, WUXGA system
  • The cascaded operation for increased signal outputs
  • Rackmountable
  • LED indicators for signal activity monitoring
  • Accurate and reliable reproduction of video signals without attenuation and distortion

Model Name

VSA-108

  Video Resolution (Max.)

  Full HD ( 1920 x 1080 )

  Video Input

  VGA x 1

  Video Output

  VGA x 8

  LED Indicator

  Power LED x 1
  Active LED x 1

  Power Supply

  DC 9V, 200 mA

  Enclosure

  Metal

  Dimension H x W x D (mm)

  44 x 438 x 125

  Weight (g)

  X
