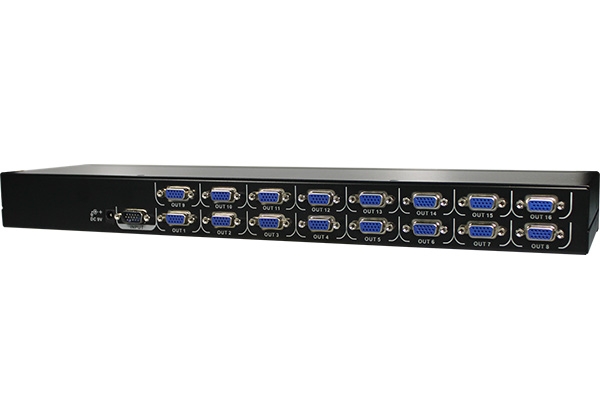

Product Name : 16 Ports VGA Video Splitter
Product No : VSA-116
Read More
Product Description
  • Duplicate one Video input to multiple outputs
  • Automatic power-save when Video input is lost
  • Support display resolutions of up to UXGA (1600 x 1200), WUXGA (1920 x 1200), 1920 x 1440
  • The cascaded operation for increased signal outputs
  • Accurate and reliable reproduction of video signals without attenuation and distortion
  • Rackmountable

16 Ports VGA Splitter, VSA-116 broadcast the same video signals from one VGA source to 16 VGA outputs respectively, and the broadcast can be expanded significantly when several splitters are cascaded together. There is no need for software or interface card installation. Just connect the cables, power up the system and you are ready to have duplicated video images for multiple monitors with excellent clarity. Depending on the length and cable quality, superb high bandwidth circuit enables high-resolution VGA signal of 350MHz to be displayed on multiple monitors.

Moreover, 16 Ports VGA Splitter comes with rack mountable size and can be easily mounted on the rack for space saving. This flexible solution that accommodates multiple digital video displays is especially suitable for applications of public broadcasting.

  • Duplicate one Video input to multiple outputs
  • Automatic power-save when Video input is lost
  • Support display resolutions of up to UXGA (1600 x 1200), WUXGA (1920 x 1200), 1920 x 1440
  • Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA ….Full HD, WUXGA system
  • The cascaded operation for increased signal outputs
  • Rackmountable
  • LED indicators for signal activity monitoring
  • Accurate and reliable reproduction of video signals without attenuation and distortion

Model Name

VSA-116

  Video Resolution (Max.)

1920x1440@60Hz ( 4:4:4 )

  Video Input

VGA x 1

  Video Output

VGA x 16

  LED Indicator

Power LED x 1
Active LED x 1

  Power Supply

DC 9V

  Operation Environment

0~40°C, Humidity<80%

  Storage Temperature

-20~60°C

  Enclosure

Metal

  Dimension H x W x D (mm)

44 x 440 x 180

  Weight (g)

  X

Connection Pattern of VSA-116 16 Ports VGA Video Splitter
