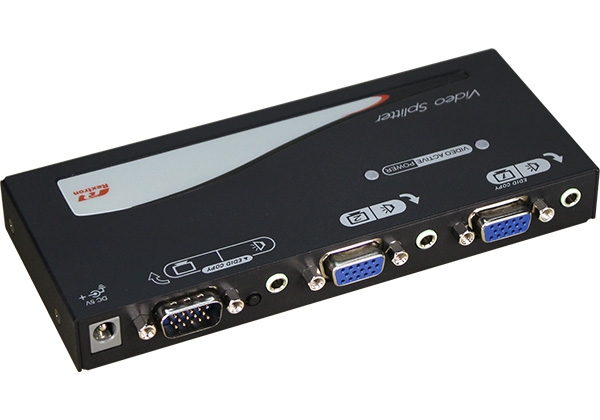

2 Ports VGA Video Splitter with Audio and EDID
VSVA-102

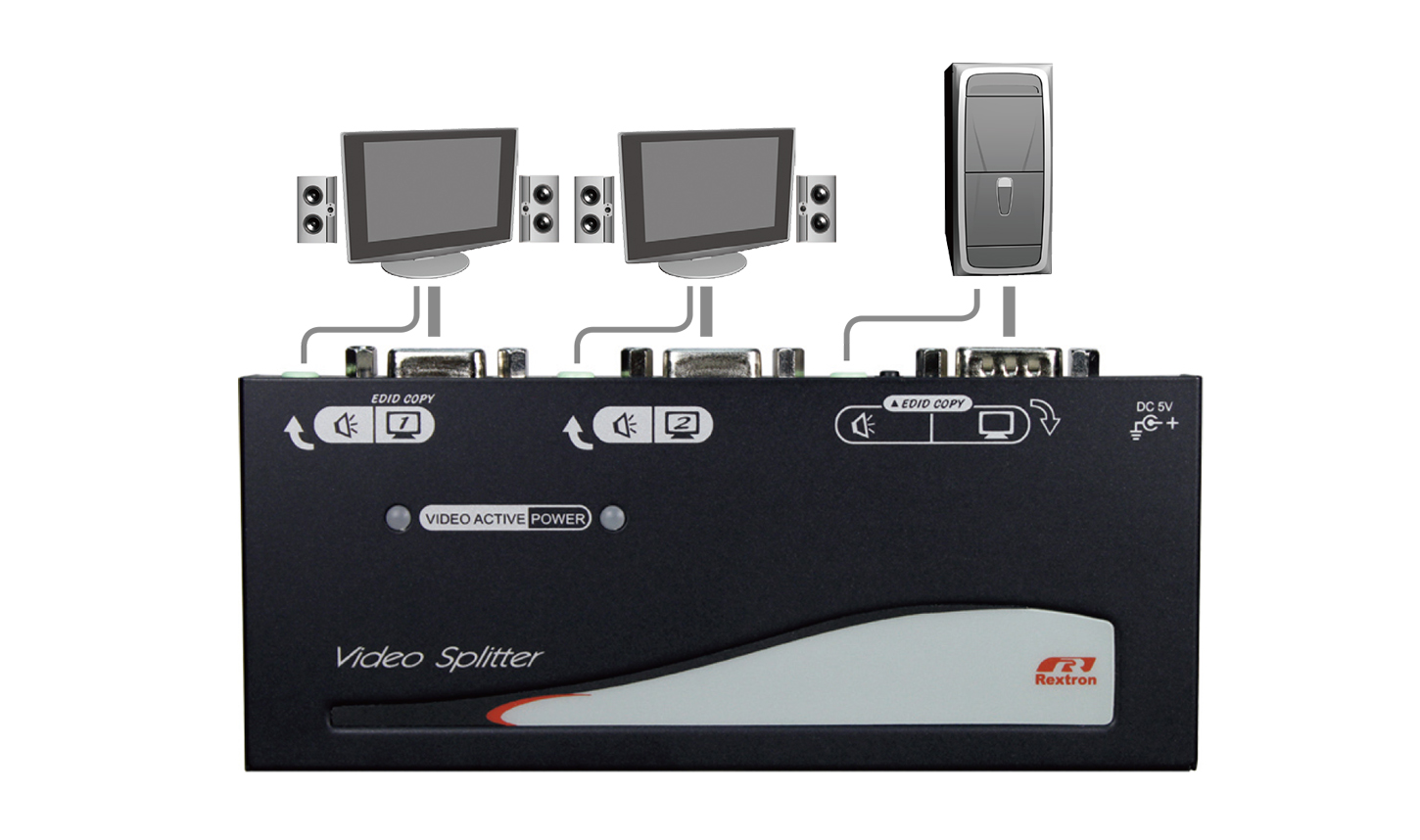

2 Ports VGA Splitter with Audio, VSVA-102 broadcast the same video signals from one VGA+Audio source to 2 VGA+Audio outputs respectively, and the broadcast can be expanded significantly when several splitters are cascaded together. There is no need for software or interface card installation. Just connect the cables, power up the system and you are ready to have duplicated video images for multiple monitors with excellent clarity. Depending on the length and cable quality, superb high bandwidth circuit enables high-resolution VGA signal of 400MHz to be displayed on multiple monitors.
EDID Copy functions allow the 2 Ports VGA Splitter with Audio either to read the necessary EDID information from the splitter unit itself or to copy EDID from the EDID compliant monitor, which ensures the accurate output display.
Moreover, VGA Splitter with Audio, VSVA series come with rack mountable size and can be easily mounted on the rack for space saving (Mounting brackets required). This flexible solution that accommodates multiple digital video displays is especially suitable for applications of public broadcasting.
The 1-in-2-out VGA video splitter is a device that takes a single VGA signal and distributes it to two separate VGA outputs. It is commonly used in various settings, such as offices, classrooms, and data centers, where multiple displays need to be connected to a single source. Interested? Contact Team Rextron.
- Duplicate one VGA+ Audio input to multiple VGA+Audio outputs
- Support up to 1920 x1200 resolution
- Effective transmission distance: 65M (210ft) with UL-2919 rated VGA cables
- Automatic power-saving when VGA input is lost
- Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA ….Full HD, WUXGA system.
- VGA cascadable for maximizing the management capacity
- Crisp clear VGA images
- EDID functions effect simultaneously of all video sources
- EDID Copy function makes the best video presentation
- Read and store the EDID from the connecting display to the video extension
- Provide a default EDID, if a display’s EDID is not available
- Alternatively, perform the default or the copied EDID for the connected display device
|
Model Name |
VSVA-102 |
|
Video Resolution (Max.) |
1920x1440@60Hz ( 4:4:4 ) |
|
Video Input |
VGA x 1 |
|
Video Output |
VGA x 2 |
|
Audio Input |
3.5 mm Audio Jack x 1 |
|
Audio Output |
3.5 mm Audio Jack x 2 |
|
LED Indicator |
Power LED x 1 |
|
Power Supply |
DC 9V |
|
Operation Environment |
0~40°C, Humidity<80% |
|
Storage Temperature |
-20~60°C |
|
Enclosure |
Metal |
|
Dimension H x W x D (mm) |
XXX |
|
Weight (g) |
X |
