Product Name : 8K EDID Emulator PRO Version with EDID Management, EDID Export, EDID Import, EDID Summary ( HDMI 2.1 In and HDMI 2.1 Out )
Product No : VDDC-8K120
Read More
Product Description

Rextron EDID Manager VDDC-8K120 comes with 1 preset + 29 custom banks, supporting higher resolution 7680x4320@60Hz and HDMI 2.1 technology. This device has unique EDID import/export capabilities for advanced EDID analysis and modification. It also supports the Auto EDID function, which is convenient for learning and is an ideal tool for AV product development and compatibility testing.

  • 8K EDID Emulator PRO Allows Users to Copy EDID ( EDID Ghost / Emulator ) from the Connected Display to Solve Certain Compatibility Issues
  • HDMI 2.1 Video Supports Most Popular Resolutions Up to 7680x4320@60Hz ( 4:4:4 ), 48Gbps ( FRL6 )
  • Built-In Video Booster at Both Input and Output to Support Long Cable and Facilitate Equipement Installation
  • 1+29 EDID Memories to Store EDIDs of Different Displays
  • EDID Export Allows Users to Export the EDID Files to PCs for Editing
  • EDID Import Allows Users to Import the Edited EDID Files from PCs to Replace the Active EDIDs in the Memories
  • EDID Summary Reveals The Brief of EDID Files In the CFG Text File for the Users’ Reference
  • Advanced HDCP Algorithm Ensures Proper HDCP Communication , Free from Interference of EDID Copy Function
  • 5K 120Hz
  • 4K 144Hz
  • 4K 120Hz
  • VRR
  • 8K
  • 4K 60 444
  • 4K 60 420
  • 4K 30
  • EDID Management
  • HDCP 2.2
  • HDCP 1.4
EDID Manager, 8K HDMI EDID Reader/ Emulator, Import/ Export EDID, EDID FEEDER VDDC-8K120

Hardware design VDDC-8K120, EDID Manager, plays an EDID emulating role and serves as a bridge of communication between the AV source (PC/ DVD Player) and the AV sink device (Monitor/ Projector). VDDC provides 30 sets of memory banks (1 Preset + 29 Custom) for EDID setting, including EDID Reading/ EDID Copy/ EDID Emulating procedures.

Based on the HDMI 2.1 specification, VDDC-8K120 displays the highest resolution of 7680x4320@60Hz ( 4:4:4 ), 48Gbps ( FRL6 ), and supports the latest HDMI 2.1 Technologies such as HDR/ VRR/ QMS/ QFT/ ALLM. VDDC Video Booster function amplifies the video signal and that enables users to extend the distance between the monitor and the source device. The unique EDID Export function allows the EDIDs stored in the memory banks to be easily transferred to the computer through a mini USB cable for advanced analysis, while the EDID Import function allows the modified EDIDs (CFG File) to be shifted from PC to the VDDC memory bank.

Painless learning, Rextron EDID Manager VDDC series Auto EDID function eliminates the complicated process and provides Auto EDID Reading and Auto EDID Copy allowing beginners to learn painlessly. For advanced users, Rextron EDID emulation function mimics a screen connection (virtual screen) without the need for an external monitor installation.

EDID Manager-diagram

1+29 EDID Memory Bank (Store EDID information of 30 different monitors)
Rextron EDID Manager supports higher resolution 7680x4320@60Hz ( 4:4:4 ), and provides abundant memory bank (1 Preset + 29 Custom) more than the capability of ordinary EDID simulator or emulator. And completely supports HDMI 2.1 specifications such as Dynamic HDR / VRR / QMS / QFT / ALLM latest display technologies.

Unique EDID Import/ Export function
Without any software installation or system configuration, by using one mini USB cable VDDC-8K120 exports the pre-stored EDID data to the computer, imports the modified EDIDs back to the unit, and performs advanced EDID analyzing by third-party software. EDID data analysis is especially suitable for the development or testing of High Definition video product or for the system Integration Company to improve the product compatibility.

Rextron EDID Manager VDDC series automatically read, copy, and store the EDID of the connected monitor without any complicated process allowing beginners to learn painlessly. For AV product development and the following compatibility testing, VDDC-8K120 is the best tool for users or system integrators who often need to replace AV devices or switch channels of the video sources.
  • 8K EDID Emulator PRO Allows Users to Copy EDID ( EDID Ghost / Emulator ) from the Connected Display to Solve Certain Compatibility Issues
  • HDMI 2.1 Video Supports Most Popular Resolutions Up to 7680x4320@60Hz ( 4:4:4 ), 48Gbps ( FRL6 )
  • HDMI 2.1 Features Support, Including DSC / Dynamic HDR / VRR / ALLM / QFT / QMS, ...
  • Support Both TMDS and FRL Transmission Topologies to Apply to Most Existing Displays
  • Solve Most HDMI No Image Shown on the Display Issues
  • Fix HDMI handshaking issue
  • Built-In Video Booster at Both Input and Output to Support Long Cable and Facilitate Equipement Installation
  • 1+29 EDID Memories to Store EDIDs of Different Displays
  • EDID Export Allows Users to Export the EDID Files to PCs for Editing
  • EDID Import Allows Users to Import the Edited EDID Files from PCs to Replace the Active EDIDs in the Memories
  • EDID Summary Reveals The Brief of EDID Files In the CFG Text File for the Users’ Reference
  • Advanced HDCP Algorithm Ensures Proper HDCP Communication , Free from Interference of EDID Copy Function

Model Name

VDDC-8K120

  MAX. Video Resolution

7680x4320@60Hz ( 4:4:4 )
48Gbps ( FRL6 )

  Video Input

HDMI 2.1 x 1

  Video Output

HDMI 2.1 x 1

  EDID Summary

CFG Text File x 1 ( Via Mini USB )

  EDID Memories

EDID Auto Copy x 1
EDID Manual Copy x 29

  EDID Import

Via Mini USB x 1

  EDID Export

Via Mini USB x 1

  MAX. Extension Distance

5~7M ( 2~3M+3~4M ) for 8K, and DSC Enabled Resolutions
10~15M ( 3~5M+7~10M ) for 4K@60 ( 4:4:4 )
15~25M ( 5~10M+10~15M ) for 1080P
( Depend on Cable Quality )

  Push Buttons

Copy x 1, Adjust x 1, Select x 1

  LED Indicator

ID x 3
Status x 1 ( Full-Color )

  HDCP Compliance

HDCP 1.4 / 2.2 / 2.3

  Power Supply

DC 5V ( Mini-USB )

  Operating Environment

0~40°C, Humidity<80%

  Storage Temperature

-20~60°C

  Enclosure

Anodized Aluminum ( Black )

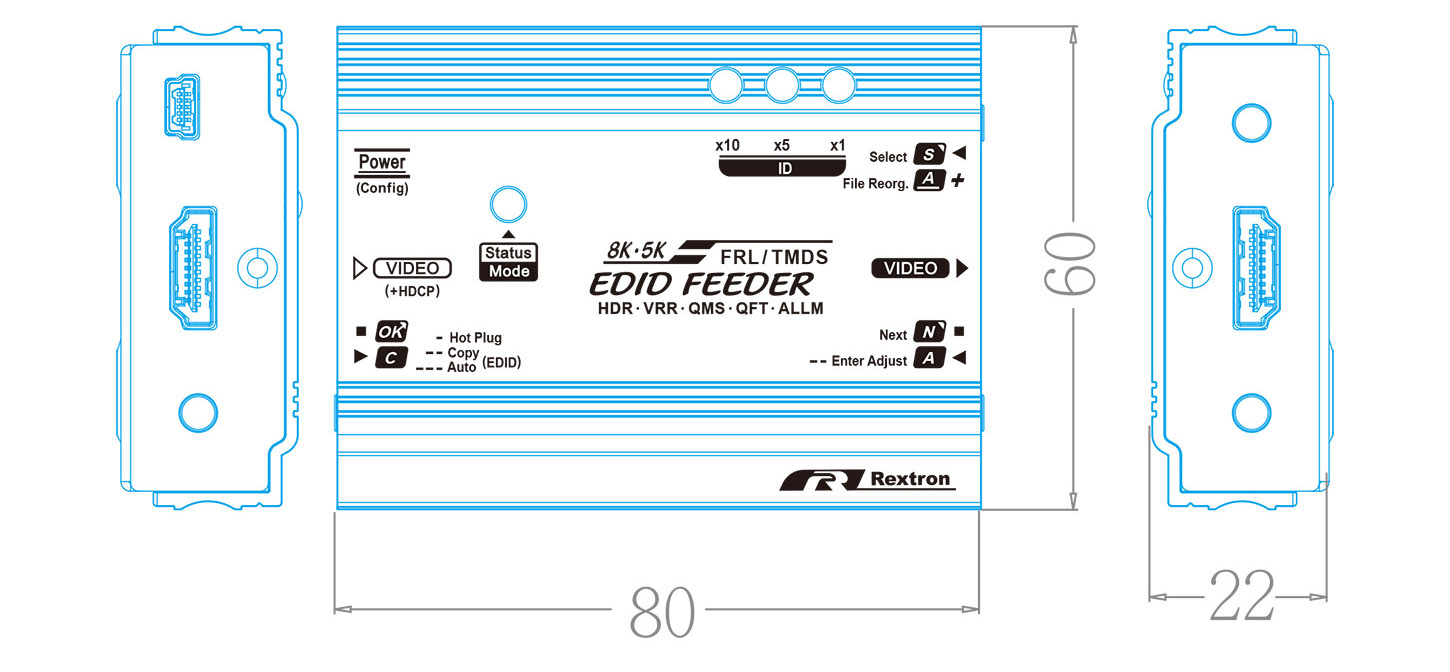

  H x W x D (mm)

22 x 60 x 80

  Weight (g)

200


Related Products :

Model Name

Video Input

EDID Export

EDID Import

EDID Memories

EDID Summary

VDDC-8K220

DisplayPort 2.0

Yes

Yes

1+29

Yes

VDDC-8K120

HDMI 2.1

Yes

Yes

1+29

Yes

VDDC-8K20

DisplayPort 2.0

Yes

No

1+3

No

VDDC-8K10

HDMI 2.1

Yes

No

1+3

No

EDID Manager-connection
