Rextron 8K EDID Manager Library VDDC-8K130 to Revolutionize Your AV Setup & Enhance Compatibility

Product Name : EDID Manager Library, 8K HDMI EDID Reader/ Emulator, Import/ Export EDID, EDID FEEDER VDDC-8K130

Product No : VDDC-8K130

EDID Feeder PRO+ Allows Users to Supply Copied / Edited EDID to the Video Source to Solve Certain Compatibility Issues
Most EDIDs Supported

HDMI 2.1 Features Support, Including DSC / Dynamic HDR / VRR/ ALLM / QFT / QMS, ... Up to 7680x4320@60Hz ( 4:4:4 ), 48Gbps ( FRL6 )
Support Both TMDS (HDMI 2.0) & FRL (HDMI 2.1) Transmission Topologies to Apply Most Existing Displays

Add to Compare

Q'ty :

Inquiry

EDID Manager Library, 8K HDMI EDID Reader/ Emulator, Import/ Export EDID, EDID FEEDER VDDC-8K130

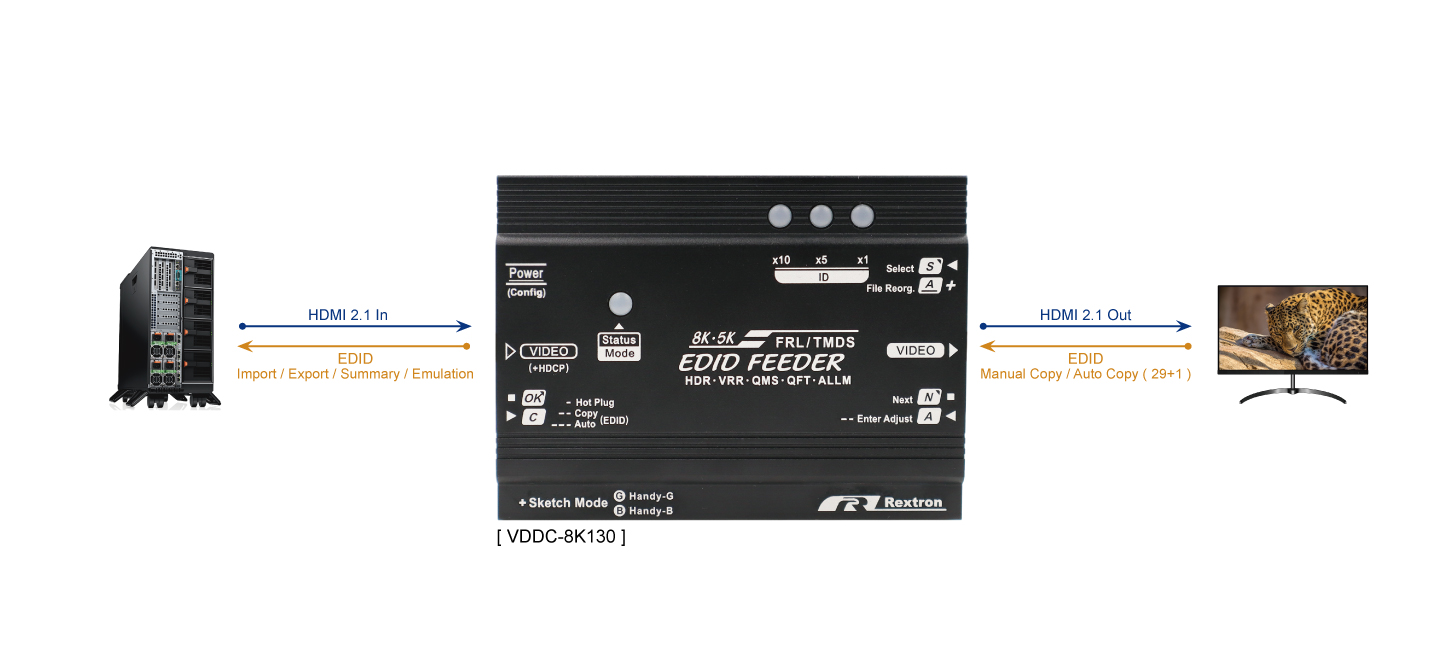

The Rextron EDID Manager Library VDDC-8K130 is an EDID (Extended Display Identification Data) storage/ editor/ emulator that serves as a communication bridge between AV sources, such as PCs and DVD players, and AV sink devices, such as monitors and projectors. Its memory bank contains a large number of EDID files and is divided into three sections: ED memory (one preset and 29 custom EDIDs); HANDY_B memory (30 EDIDs); and HANDY_G memory (30 EDIDs). These sections are used to store EDID data. This massive volume of EDID data can be used for EDID settings and analysis. Examples include reading, copying, and emulating EDIDs or exporting them for editing with third-party software.

EDID Memory Bank (Store EDID information of up to 90 different monitors)

The EDID Manager Library provides three EDID sections for classification and storage of EDID files and can expand to store up to 90 EDIDs in total. This exceeds the capacity of ordinary EDID simulators or emulators. These EDIDs can trick the video source into emulating an HDMI display, i.e., a virtual monitor, to provide continuous video output even when the connected display is disconnected.

EDID Manager Library-LEDs show each EDID of EDID Memory Bank

Unique EDID Import and Export function

The VDDC-8K130 is equipped with a mini USB cable, Plug & Play eliminating the need for software installation or system configuration. It seamlessly exports the pre-stored EDID data to the computer, imports the modified EDIDs back to the unit, and performs advanced EDID analysis using third-party software. EDID data analysis is particularly well-suited for the development or testing of High Definition video products, as well as for system integration companies seeking to enhance product compatibility.

Based on the HDMI 2.1 specification, the VDDC-8K130 has the highest resolution of 7680x4320@60Hz (4:4:4), supports 48Gbps (FRL6), and is compatible with the latest HDMI 2.1 technologies, such as HDR, VRR, QMS, QFT, and ALLM. The VDDC video booster function amplifies the video signal, enabling users to extend the distance between the monitor and the source device. The EDID export function allows users to easily transfer the EDIDs stored in the memory banks to a computer via a mini USB cable for advanced analysis. The EDID import function allows users to shift the modified EDIDs (CFG file) from a PC to the VDDC memory bank.

The Rextron EDID FEEDER series automatically reads, copies, and stores the EDID of the connected monitor. This feature simplifies complicated processes and makes the device easy for beginners to learn. The EDID Manager Library VDDC-8K130 is an ideal tool for AV product development and subsequent compatibility testing. Its virtual monitor feature is perfect for users or system integrators who frequently replace AV devices or switch video source channels.

EDID Feeder PRO+ Allows Users to Supply Copied / Edited EDID to the Video Source to Solve Certain Compatibility Issues
Most EDIDs Supported

HDMI 2.1 Features Support, Including DSC / Dynamic HDR / VRR/ ALLM / QFT / QMS, ... Up to 7680x4320@60Hz ( 4:4:4 ), 48Gbps ( FRL6 )
Support Both TMDS (HDMI 2.0) & FRL (HDMI 2.1) Transmission Topologies to Apply Most Existing Displays

1+29 Copied EDID Allows Fast Switching among Copied/ Edited EDIDs
EDID Export Allows EDID Access to PCs for Editing
EDID Import Replaces the Copied EDIDs with Edited EDIDs
EDID Summary Gives a Description of the Copied EDIDs
Advanced HDCP Algorithm Ensures Proper HDCP Communication , Free from Interference of EDID Copy Function
Sketch Mode Easily Edit EDID Parameters (Resolution/ FPS/ Bit/ Color/ TMDS/ FRL/ DSC) in the Handy_B & Handy_G Text Files ( 30 EDIDs Each )
HDMI Booster Allows Long Cable Application & Helps Maintain Signal Integrity

Model Name	VDDC-8K130
MAX. Video Resolution	7680x4320@60Hz ( 4:4:4 ) 48Gbps ( FRL6 )
Video Input	HDMI 2.1 x 1
Video Output	HDMI 2.1 x 1
EDID Summary	CFG Text File x 1 ( Via Mini USB )
EDID Memories	Copied EDIDs : 29 + 1 ( Auto Copy ) Handy_B : 30 ( Sketch Mode ) Handy_G : 30 ( Sketch Mode )
EDID Import	Via Mini USB x 1
EDID Export	Via Mini USB x 1
MAX. Extension Distance	5~7M ( 2~3M+3~4M ) for 8K, and DSC Enabled Resolutions 10~15M ( 3~5M+7~10M ) for 4K@60 ( 4:4:4 ) 15~25M ( 5~10M+10~15M ) for 1080P ( Depend on Cable Quality )
Push Buttons	[ C ] Copy x 1, [ A ] Adjust x 1, [ S ] Select x 1
LED Indicator	ID x 3 Status x 1 ( Full-Color )
HDCP Compliance	HDCP 1.4 / 2.2 / 2.3
Power Supply	DC 5V ( Mini-USB )
Operating Environment	0~40°C, Humidity<80%
Storage Temperature	-20~60°C
Enclosure	Anodized Aluminum ( Black )
H x W x D (mm)	22 x 60 x 80
Weight (g)	120

EDID Management	HDMI In / HDMI Out	DP In / HDMI Out ( w/ DP-to-HDMI Converter )	HDMI In / DP Out ( MAX. 8K@30Hz ) ( w/ HDMI-to-DP Converter )
Standard	VDDC-8K10	VCDDC-8K20PM	VCDDC-8K20MP
Pro	VDDC-8K120	VCDDC-8K22PM	VCDDC-8K22MP
Pro+	VDDC-8K130	VCDDC-8K23PM	VCDDC-8K23MP

EDID Management	EDID Copy	EDID Memories	EDID Export	EDID Import	Sketch Mode ( Handy_B & Handy_G )
Standard	*Yes*	Auto x1, Copy x3	*Yes*	No	No
Pro		*Auto x1*		*Yes*	No
Pro+		*Copy x29*		*Yes*	*Yes ( x60 )*
