Dual Video 4K DisplayPort KVM Extender With USB, Audio, IR, Serial, 150M
EXXPS-M043
EXXPS-M043 = EXXPS-043P (Tx, USB Host) + EXXPS-043S (Rx, USB Device)

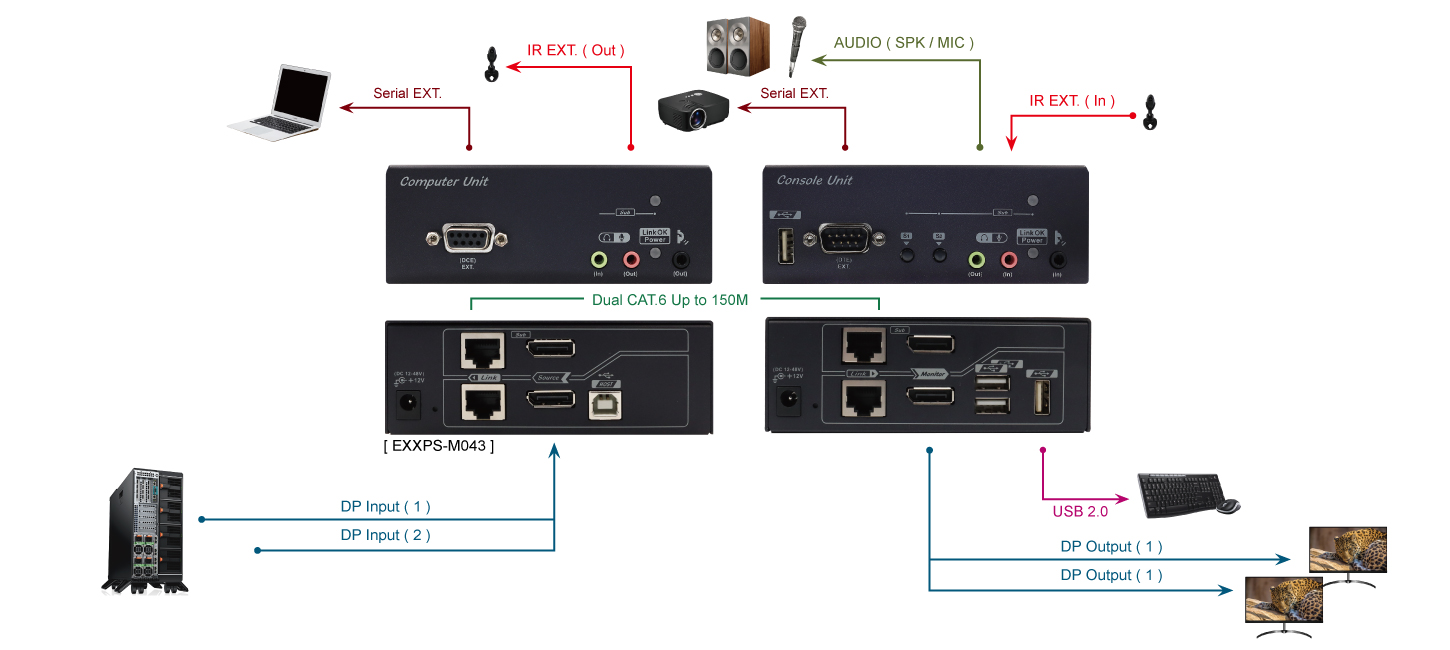

Rextron EXXPS-M043, DP Dual Video KVM Extender, consists of a Transmitter (USB Host) and a Receiver (USB Device) unit that allows you to extend Dual DP, Two-Way Audio, USB 2.0, IR, and RS-232 signals. It transmits 4K DP video up to 150 meters (490 ft) over CAT6 Cabling. Dual DisplayPort supports both Duplicate and Extend Application. Rextron EXXPS-M043 provides multiple monitor setups to extend your desktop and expand the work area across displays.
Plug-and-Play USB Peripherals Sharing
IR Extension
Serial Extension with Selectable Baud Rate Setting
2-Way Audio with Unique Audio Embedding/ De-Embedding Function
- Allows Reliable Remote Access of a Dual-Monitor Computer via Two CAT.x Cables Up to 150 meters ( 492 feets )
- Dual-Monitor DisplayPort 1.2 Video Supports Most Popular Resolutions Up to 4K@30Hz ( 4:4:4 )
- Support Special Resolution of 2048x2048@60Hz ( 4:4:4 ) for Aero / Marine / Radar / Military Purposes
- HDCP 1.4 Compliance Ensures Uninterrupted Video Playback
- USB 2.0 Extension Transparently Supports Keyboard, Mouse, USB Drive, and Others
- Front and Rear USB Ports Allow Easy Access
- Smart Audio Extension Allows Embeded Audio and Audio Extraction
- IR Extension from Console Unit to Computer Unit Facilitates IR Control of AV Sources
- Serial Extension with Selectable Baud Rate Allows for Extensive Control Applications
- Plug-and-Play, No Driver or Software Required
- Support Windows / Mac / Linux / Chrome O.S.
- Interoperability among HDMI / DisplayPort Models
- Allows Wide Power Input Range DC 12~48V
- PoC ( Power over Cable ) Allows The Power Transmission from Either Tx-to-Rx or Rx-to-Tx
|
Model Name |
EXXPS-M043 |
|
|
EXXPS-043P ( Transmitter ) |
EXXPS-043S ( Receiver ) |
|
|
MAX. Resolution |
3840 x 2160@30Hz (4:4:4) |
|
|
Video Extension |
DisplayPort x 2 ( In ) |
DisplayPort x 2 ( Out ) |
|
USB 2.0 Extension |
USB-B x 1 |
USB-A x 4 |
|
Audio Extension |
3.5mm SPK Jack x 1 ( In ) |
3.5mm SPK Jack x 1 ( Out ) |
|
Microphone Extension |
3.5mm MIC Jack x 1 ( Out ) |
3.5mm MIC Jack x 1 ( In ) |
|
IR Extension |
3.5mm IR Jack x 1 ( Out ) |
3.5mm IR Jack x 1 (In ) |
|
Serial Extension |
DB-9 x 1 ( RS-232 DCE ) |
DB-9 x 1 ( RS-232 DTE ) |
|
Push Buttons |
Reset x 1 |
Reset x 1 |
|
LED Indicator |
Power / Connection Status x 2 |
Power / Connection Status x 2 |
|
HDCP Compliance |
HDCP 1.4 |
|
|
Link Port |
RJ45 x 2 |
RJ45 x 2 |
|
Maximum Distance |
MAX. 150M ( Point-to-Point ) |
|
|
Power Supply |
DC 12V~48V ( PoC ) |
DC 12V~48V ( PoC ) |
|
Operation Environment |
0~40°C, Humidity<80% |
|
|
Storage Temperature |
-20~60°C |
|
|
Enclosure |
Aluminum |
|
|

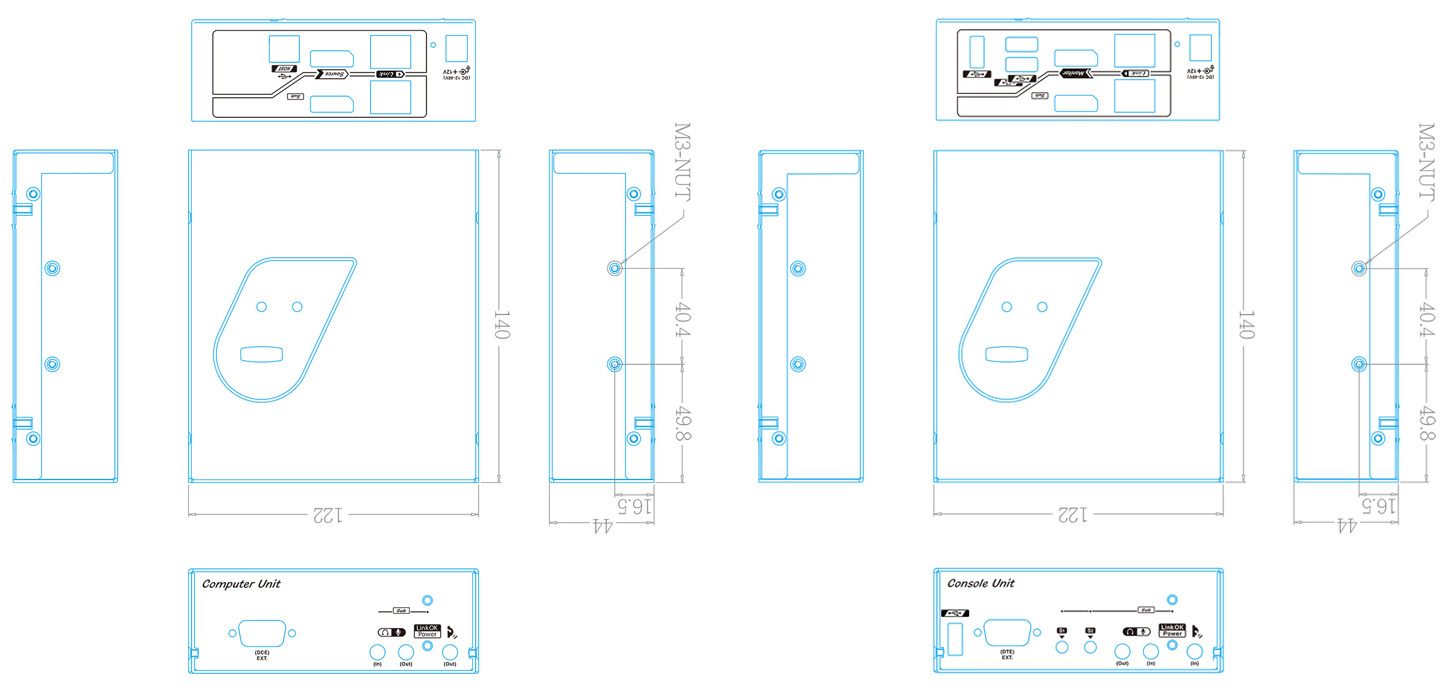

H x W x D (mm) |
44 x 122 x 140 |
44 x 122 x 140 |
|
Weight (g) |
405 |
450 |
