4K DisplayPort KVM Extender with USB, Audio, IR, Serial, 150M
EXPS-M043
DisplayPort over CAT6, EXPS-M043, consists of a Transmitter (USB Host) and a Receiver (USB Device) unit that allows you to extend DP/ Audio/ USB 2.0/ IR/ RS-232 signals. It transmits 4K DP video up to 150 meters (490 ft) over CAT6 Cabling.
EXPS-M043, DisplayPort over CAT6, supports USB 2.0 extension function. 4 USB 2.0 ports on the front and the rear side of the receiver unit (Rx) are suitable for both long-term and temporary USB peripherals connection. EXPS-M043 supports most of the popular Windows, Mac, Chrome O.S, and Linux operating system.
The IR extension function supports full frequency IR signal range from 38KHz up to 56KHz. Furthermore, the distance between the emitter head and the IR port on the unit may be extended to provide users a flexible and easy way in IR control system installation (maximum 3 meters IR cable can be purchased separately).
Full-duplex data communication between Tx and Rx via CAT6 Cable connection is the cost effective, hardware-based solution, providing remote access and control for all RS-232 protocol devices without any setup or configuration. RS-232 serial extension is suitable to be applied in digital signage, industrial or commercial office, smart classroom, and smart Home system.
2-Way Audio with Unique Audio Embedding/ De-Embedding Function
- Allows Reliable Remote Access of a Computer via a CAT.x Cable Up to 150 meters ( 492 feets )
- DisplayPort Video Supports Most Popular Resolutions Up to 4K@30Hz ( 4:4:4 )
- Support Special Aero/Marine Resolution of 2048x2048@60Hz ( 4:4:4 )
- HDCP 1.4 Compliance Ensures Uninterrupted Video Playback
- USB 2.0 Extension Transparently Supports Keyboard, Mouse, USB Drive, and Others
- Front and Rear USB Ports Allow Easy Access
- Smart Audio Extension Allows Embeded Audio and Audio Extraction
- IR Extension from Console Unit to Computer Unit Facilitates IR Control of AV Sources
- Serial Extension with Selectable Baud Rate Allows for Extensive Control Applications
- Connection May Go Through V-LAN Enabled HUB
- Plug-and-Play, No Driver or Software Required
- Support Windows / Mac / Linux / Chrome O.S.
- Interoperability among HDMI / DVI / DisplayPort Models
- Allows Wide Power Input Range DC 12~48V
- PoC ( Power over Cable ) Allows The Power Transmission from Either Tx-to-Rx or Rx-to-Tx
|
Model Name |
EXPS-M043 |
|
|
EXPS-043P ( Transmitter ) |
EXPS-043S ( Receiver ) |
|
|
MAX. Resolution |
3840 x 2160@30Hz (4:4:4) |
|
|
Video Extension |
DisplayPort x 1 ( In ) |
DisplayPort x 1 ( Out ) |
|
USB 2.0 Extension |
USB-B x 1 |
USB-A x 4 |
|
Audio Extension |
3.5mm SPK Jack x 1 ( In ) |
3.5mm SPK Jack x 1 ( Out ) |
|
Microphone Extension |
3.5mm MIC Jack x 1 ( Out ) |
3.5mm MIC Jack x 1 ( In ) |
|
IR Extension |
3.5mm IR Jack x 1 ( Out ) |
3.5mm IR Jack x 1 (In ) |
|
Serial Extension |
DB-9 x 1 ( RS-232 DCE ) |
DB-9 x 1 ( RS-232 DTE ) |
|
Push Buttons |
OSD Menu / Bude Rate Switching x 2 |
N/A |
|
LED Indicator |
Power / Connection Status x 1 |
Power / Connection Status x 1 |
|
HDCP Compliance |
HDCP 1.4 |
|
|
Link Port |
RJ45 x 1 |
|
|
Maximum Distance |
MAX. 150M ( Point-to-Point ) |
|
|
Power Supply |
DC 12V~48V ( PoC ) |
DC 12V~48V ( PoC ) |
|
Operation Environment |
0~40°C, Humidity<80% |
|
|
Storage Temperature |
-20~60°C |
|
|
Enclosure |
Aluminum |
|
|

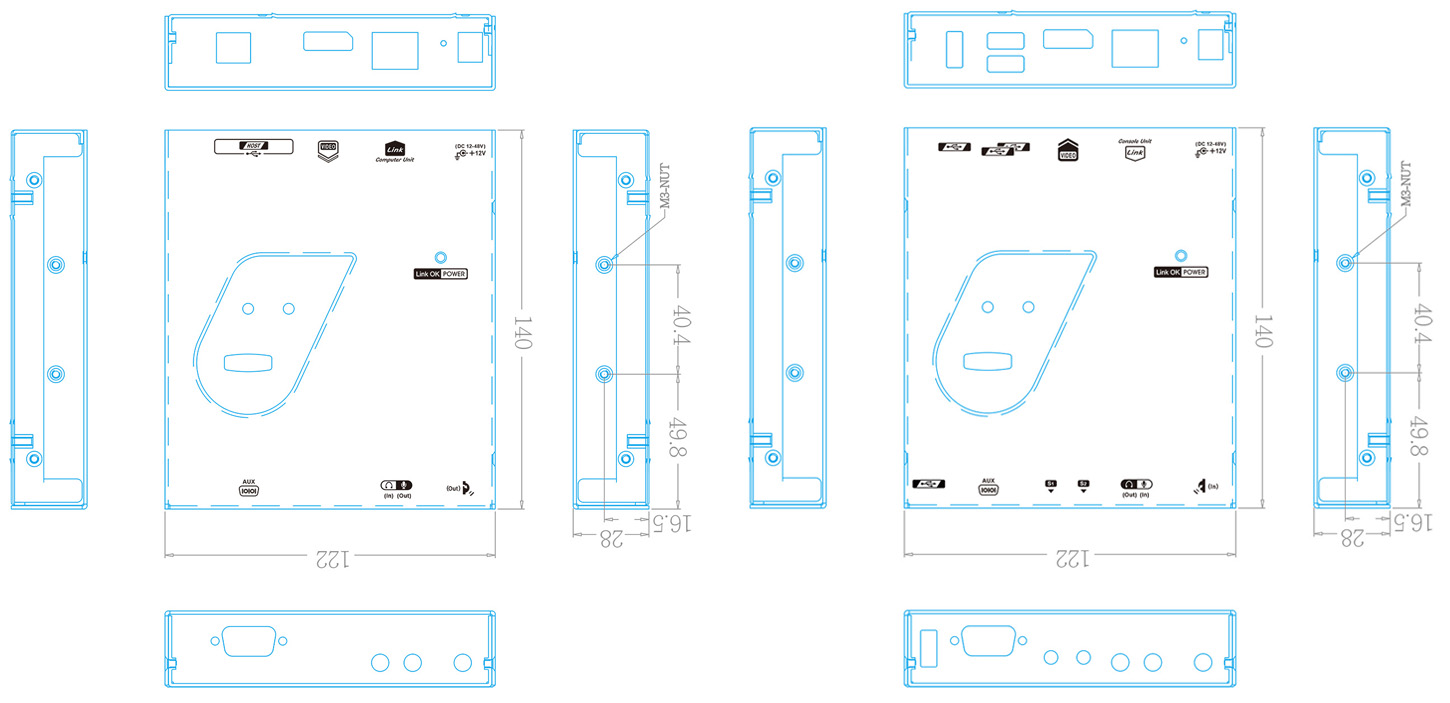

H x W x D (mm) |
27 x 121 x140 |
27 x 130 x 140 |
|
Weight (g) |
350 |
400 |
