VGA Video Extender Receiver over CATx with Audio, 165M
EVA-RCV010
HDB15 VGA Extender over CAT5, Receiver Unit, EQ, Gain, EVA-RCV010

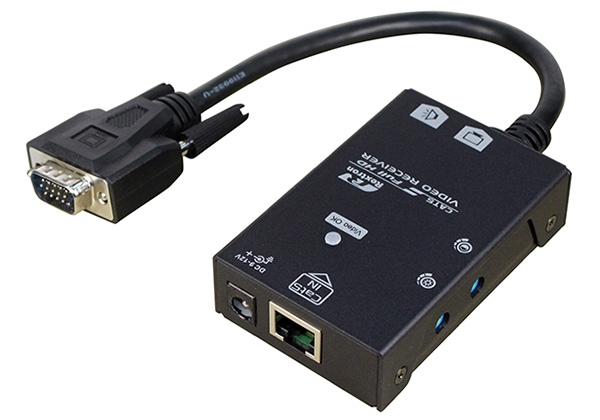

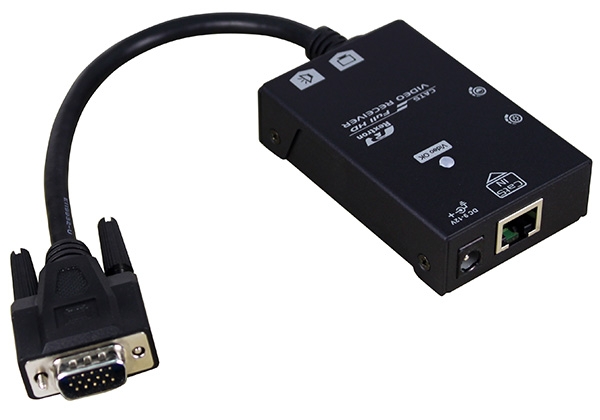

HDB15 VGA Extender, EVA-RCV010, Video Extender Receiver Unit allows you to extend VGA and Audio signals up to 165 meters (540 foot) over CATx Cabling (Rextron VGA Transmitter Units can be purchased separately). The VGA cable with HDB-15 Male connector is included easy for VGA monitor installation.
Video Adjustment

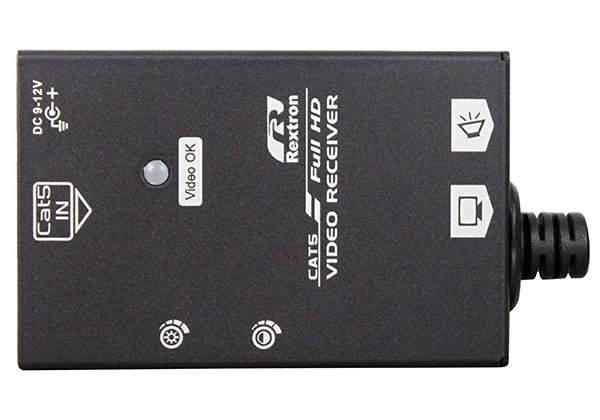

To adjust signal strength to compensate for the long distance CAT5 cable extension, 2 Rotary switches are designed for EQ and Gain video adjustment that ensure crisp, clear, bright, and optimum video signal.
EQ / Gain adjustment can be operated at random
● Gain (brightness) control selector
● EQ (sharpness) control selector
- Connect the Extender pair via Category 5 / 5e / 6 UTP cable
- No software or drivers required and easy to install
- Supports VGA, SVGA, and Multisync monitors
- Gain (brightness) / EQ (sharpness) control selector designed for optimum signal clarity
- Extends video signal up to 165m / 200m / 300m
- Ideal for public broadcasting, exhibits, retail stores, courtrooms, bus stations, etc.
- Support the resolution up to 1920 x 1200 with the high-quality CAT5 cable
Model Name |
EVA-RCV010 |
Video Resolution (max.) |
1920 X 1200 |
VGA Input / Output |
RJ-45 x1 / HDB15 x1 + Audio jack x1 |
Cable Between Units |
CAT5, CAT5e or CAT6 |
Max. Distance |
165 Meters |
Rotary Switch |
EQ Calibration x1, Gain Calibration x1 |
Power Supply |
DC 9-12V, 600mA |
H x W x D (mm) |
22 x 52 x 80 |
