Wallplate VGA Video Extender Transmitter with Audio
EVA-A20WL

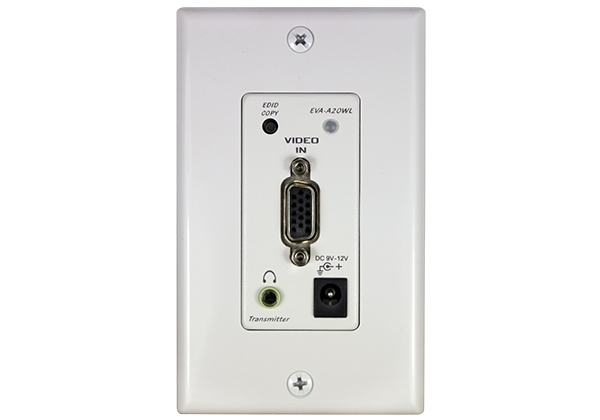

Single Gang Wall-Mount VGA Transmitter Unit with Audio, EDID, Phantom Power, EVA-A20WL
Wall-Mount VGA Transmitter, EVA-A20WL, extends VGA +Audio signals up to 165 meters away from a Video source by using only a single UTP CAT5/ 5e/ 6 cable increasing the space efficiency. Wall-Mount VGA Transmitter supports most of the popular Windows, Mac, Sun, and Linux operating system.
The Transmitter Unit “EDID Copy” feature allows the Unit to read the necessary EDID information from the attached video display and then provides it at all times to the attached computer. If no new EDID information is available from a display, a default profile in the Wall-Mount VGA Transmitter Unit is automatically provided instead.
EVA-A20WL, Wall-Mount VGA Transmitter, supports both DC Jack or Terminal Block power supply application, and with the Phantom Power feasibility, it is required to apply power of DC 12V to the Receiver side.
NOTE: Recommendation for the Remote Unit
Receiver Unit: EVA-A20WR
- Connect the Extender pair via CAT5 / 5e / 6 UTP cable
- Extend video (+Audio) signal up to 165M away from a Transmitter
- Support the video resolution up to 1920 x 1080 (Full HD), 1920 x 1200 (WUXGA)
- Plug-n-play enabled in Windows, Mac, Sun, and Linux platforms
- Support both DC jack or Terminal block power supply interface
- No driver needed or software required
- EDID Copy function makes the best resolution presenting for your application
- EQ (Sharpness) adjustment for optimal signal clarity
- Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA,…Full HD, WUXGA
- Wall-mount design for space-saving and easy installation
- Easy to get and install the CATx cable at lower cost
- Ideal for public broadcasting, exhibits, retail stores, courtrooms, stock tickers, etc.
Model Name |
EVA-E20WL + EVA-E20WR |
Video Resolution (max.) |
1920 X 1080 |
VGA Input / Output |
HDB15-M x1 + Audio jack x1 / HDB15-F x1 + Audio jack x1 |
Enclosure |
Plastic |
Max. Distance |
165 Meters |
LED |
Power / EDID Copy x 1 |
Power Supply |
DC 9-12V |
