Product Name : Wall-Plate HDBaseT 4K2K HDMI Transmitter over CATx with IR Extension, 70M ( PoC )
Product No : EVBMR-A107WL
Read More
Product Description
  • 1-Gang US Decora
  • Auto EDID Copy Function ensures the optimum video performance
  • HDTV, 3D HDTV compatible
  • HDCP compliant and Blu-ray ready
  • Support Phantom Power - single power supply at either one end of the two units (Tx or Rx)
  • Bi-directional IR control
  • Internal power terminal that keeps clutter out of sight
  • 4K 30
  • Bidirectional IR Extension
  • HDCP 1.4
Wall Plate HDMI Transmitter Unit over CAT.x, 70M with PoC, Bi-directional IR extension, EVBMR-A107WL

Wall Plate HDMI Transmitter Unit, EVBMR-A107WL, US Single Gang Decora Type 70M HDBaseT extender transmitter unit with Dual-IR, HDMI input port ,and RJ 45 HDBaseT output port supports Phantom Power and can connect and transmit AV signals from source devices up to 70M@1080P or 35M@4K over a single category cable.
Wall Plate HDMI Transmitter Unit-dimension

Wall Plate HDMI Transmitter Unit, EVBMR-A107WL is designed to be fitted into the wall or various installation environments and the exquisite and compact design provide an easy surface/wall mounting, allowing users to conceal the cable or other installed equipment and place the connected units easily. HDMI Transmitter supports most popular screen resolutions and is compatible with Box Type or Wallplate Type Receiver.

Power over Cable (PoC) enables the transfer of DC power over a single Ethernet cable to a distance of up to 70/100 meters. HDMI extender, EVBMR-A107LW, requires a single power supply at either end of the extender units, which is especially useful in the condition when there’s no available power socket at certain side.

Bi-directional IR extension feature supports full frequency IR signals from 38KHz to 56KHz. Furthermore, the pigtail design of the external IR extension unit with 1.4m cable (purchased separately) increasing the distance between the emitter/ receiver heads and the IR port on the extender unit gives users flexible and easier way in IR control system installation. That provides a unique strength which is often used in combination with home theater and system integration application.

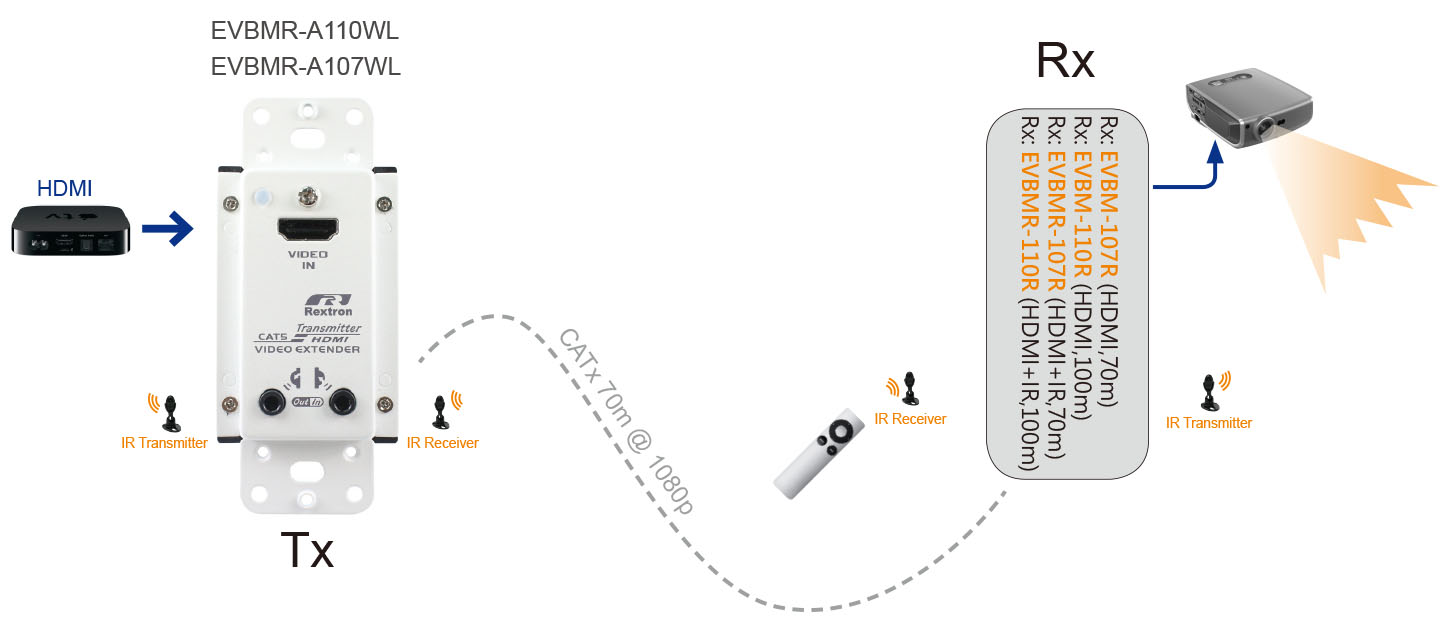

Wall Plate HDMI Transmitter Unit-app

HDMI 1.4 & HDCP compliant, built-in EDID Copy Function, and Bi-directional IR extension supported, Wall Plate HDMI Transmitter Unit EVBMR-A107WL is the ideal solution for the Conference Rooms, Offices, Smart Buildings or Class Rooms.
  • Deliver HDMI signal to multimedia displays over CAT5e/6/7 cable of up to 70M
  • HDBaseT technology
  • 1-Gang US Decora
  • Auto EDID Copy Function ensures the optimum video performance
  • HDTV, 3D HDTV compatible
  • HDCP compliant and Blu-ray ready
  • Support Phantom Power - single power supply at either one end of the two units (Tx or Rx)
  • Bi-directional IR control
  • HDMI up to 10.2Gps, including support for 1080p 60, Deep Color, HD-3D, 4K2K video, HD Audio Formats, and Audio Return Channel
  • Compatible with most of the popular screen resolutions, including XGA, SXGA, UXGA, WSXGA, Full HD, WUXGA, & UHD system
  • Internal power terminal that keeps clutter out of sight
  • Ideal for receiving guests (for hotels and conference rooms) or digital signage (for airports or shopping malls), surveillance   cameras, whole-home networking, or point-to-point applications

Model Name

Transmitter (Wallplate)

EVBMR-A107WL

  MAX.Resolution

UHD (3840 x 2160 @30Hz)

  Video Input

HDMI x 1

  Video Output

RJ-45 x 1

  IR Extension

  IR Transceiver x 1
  IR Receiver     x 1

  LED Indicator

Status LED x 1

  HDCP Compliance

HDCP 1.4

  HDBaseT Interface

RJ45 x 1 ( CAT.5e/6/7 )

  Extension Range

  70M (Full HD 1920 x 1080)
 35M (UHD 3840 x 2160)

  Power Supply

DC 12V ( PoC )

  Operation Environment

0~40°C, Humidity<80%

  Storage Temperature

-20~60°C

  Enclosure

Metal

  H x W x D (mm)

  104 x 46 x 44 (1-Gang US Decora)

  Weight (g)

100~110

Wall Plate HDMI Transmitter Unit - 1
