US Wall Plate VGA Video Extender with Audio, Decora Type
EVA-MA20WW
Single Gang Wall-Mount VGA Extender with Audio, EDID, EQ, Phantom Power, EVA-MA20WW
EVA-MA20WW= EVA-A20WL (Transmitter) + EVA-A20WR (Receiver)

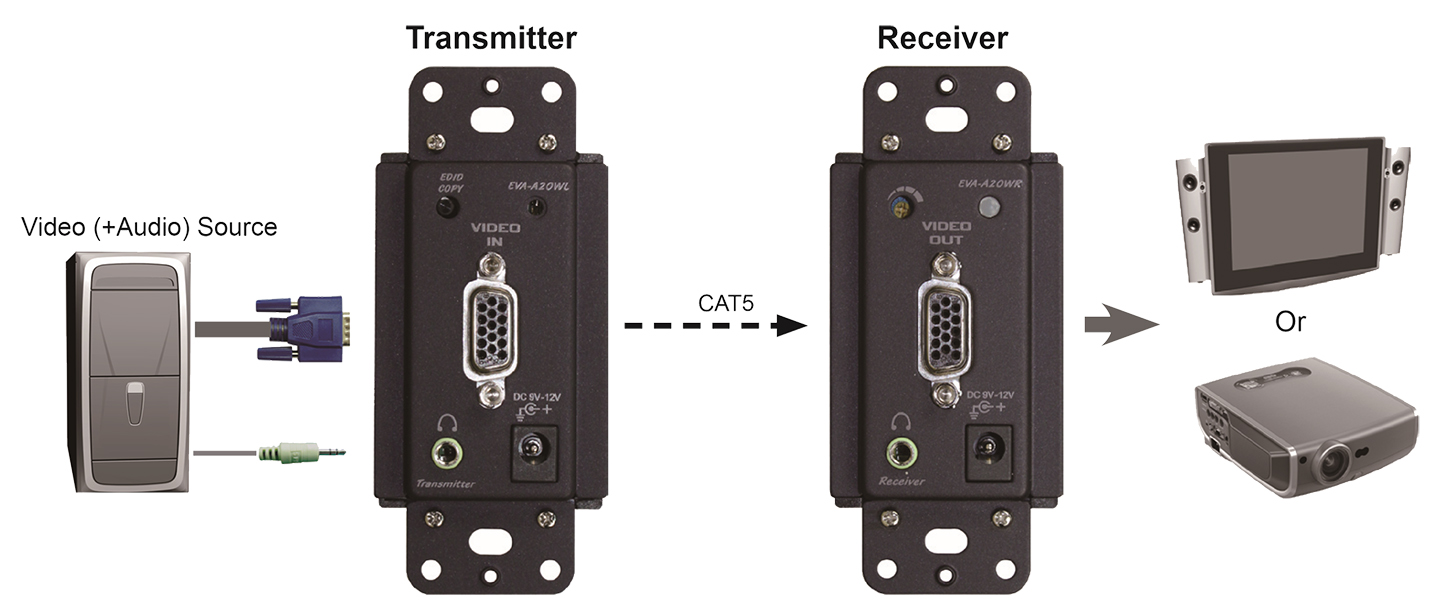

Wall-Mount VGA Extender, EVA-MA20WW, consists of a Transmitter and a Receiver unit that allows you to extend VGA +Audio signals up to 165 meters away from a Video source by using only a single UTP CAT5/ 5e/ 6 cable increasing the space efficiency. Wall-Mount VGA Extender supports most of the popular Windows, Mac, Sun, and Linux operating system.
The Transmitter Unit “EDID Copy” feature allows the Unit to read the necessary EDID information from the attached video display and then provides it at all times to the attached computer. If no new EDID information is available from a display, a default profile in the Transmitter Unit is automatically provided instead.
The EQ (Sharpness) adjustment feature on the Receiver Unit allows manually and intuitively adjusting video quality according to the length of CAT5 cable.
Wall-Mount VGA Extender, EVA-MA20WW, supports both DC Jack or Terminal Block power supply application, and with the Phantom Power feasibility, it is required to apply power of DC 12V to the Receiver side.
- Connect the Extender pair via CAT5 / 5e / 6 UTP cable
- Extend video (+Audio) signal up to 165M away from a Transmitter
- Support the video resolution up to 1920 x 1080 (Full HD), 1920 x 1200 (WUXGA)
- Plug-n-play enabled in Windows, Mac, Sun, and Linux platforms
- Support both DC jack or Terminal block power supply interface
- No driver needed or software required
- EDID Copy function makes the best resolution presenting for your application
- EQ (Sharpness) adjustment for optimal signal clarity
- Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA,…Full HD, WUXGA
- Wall-mount design for space-saving and easy installation
- Easy to get and install the CATx cable at lower cost
- Ideal for public broadcasting, exhibits, retail stores, courtrooms, stock tickers, etc.
|
Model Name |
EVA-MA20WW |
|
|
EVA-A20WL (Transmitter) |
EVA-A20WR (Receiver) |
|
|
Input |
HDB15 x 1+Audio jack x 1 |
RJ-45 |
|
Output |
RJ-45 |
HDB15 x 1+Audio jack x 1 |
|
LED |
Power / EDID Copy x 1 |
Power x 1 |
|
Video Resolution (Max.) |
1920 x 1080 (Full HD) |
|
|
Extension Distance |
165M |
|
|
EDID Copy Button |
x 1 |
x |
|
EQ Adjust Knob |
x |
x 1 |
|
Power Supply |
DC 9-12V |
|
|
Enclosure |
Plastic |
|
|
Weight (g) |
x |
x |
|
H x W x D (mm) |
x |
x |
