Product Name : US Wall Plate VGA Video Extender, Decora Type
Product No : EV-M11WW
Read More
Product Description
  • Extend video signal up to 165M away from a Transmitter
  • Plug-n-play enabled in Windows, Mac, Sun, and Linux platforms
  • No driver needed or software required
  • EDID Copy function
  • EQ (Sharpness) adjustment for optimal signal clarity
  • Wall-mount design for space-saving and easy installation
  • EDID Management
Single Gang Wall-Mount VGA Extender, EDID, EQ, Phantom Power, EV-M11WW
EV-M11WW= EV-10WL (Transmitter) + EV-01WR (Receiver)

Single Gang Wall-Mount VGA Extender, EV-M11WW, consists of a Transmitter and a Receiver unit that allows you to extend VGA signal up to 165 meters away from a Video source by using only a single UTP CAT5/ 5e/ 6 cable increasing the space efficiency. Wall-Mount VGA Extender supports most of the popular Windows, Mac, Sun, and Linux operating system.

The Transmitter Unit “EDID Copy” feature allows the Unit to read the necessary EDID information from the attached video display and then provides it at all times to the attached computer. If no new EDID information is available from a display, a default profile in the Transmitter Unit is automatically provided instead.

The EQ (Sharpness) adjustment feature on the Receiver Unit allows manually and intuitively adjusting video quality according to the length of CAT5 cable.

Single Gang Wall-Mount VGA Extender, EV-M11WW, supports both DC Jack (front panel) or Terminal Block (rear side of the unit) power supply application, and with the Phantom Power feasibility users may apply power to either end of two units, but it is suggested that users apply power of DC 12V to the Receiver side.
  • Connect the Extender pair via CAT5 / 5e / 6 UTP cable
  • Extend video signal up to 165M away from a Transmitter
  • Support the video resolution up to 1920 x 1080(Full HD), 1920 x 1200 (WUXGA)
  • Plug-n-play enabled in Windows, Mac, Sun, and Linux platforms
  • No driver needed or software required
  • EDID Copy function makes the best resolution presenting for your application
  • EQ (Sharpness) adjustment for optimal signal clarity
  • Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA,…Full HD, WUXGA
  • Wall-mount design for space-saving and easy installation
  • Easy to get and install the CATx cable at lower cost
  • Ideal for public broadcasting, exhibits, retail stores, courtrooms, stock tickers, etc.

Model Name

EV-M11WW

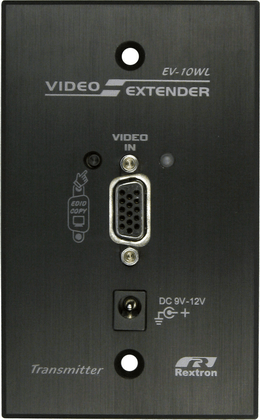

EV-10WL (Transmitter)

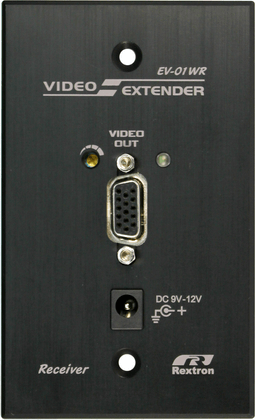

EV-01WR (Receiver)

  Input

  HDB15-F

  RJ-45

  Output

  RJ-45

  HDB15-M

  LED

  Power / EDID Copy x 1
  (Dual Color)

  Power x 1

  Video Resolution (Max.)

  1920 x 1080 (Full HD)

  Extension Distance

  165M

  Power Supply

  DC 9-12V

  Enclosure

  Aluminum

  Weight (g)

  x

  x

  H x W x D (mm)

  x

  x



proimages/Connection_/Table_Box_-_Wall_Plate/EV-10WL__01WR.jpg
