Product Name : German Wall Plate VGA Video Extender with Audio
Product No : EVA-MG20WW
Read More
Product Description
  • Connect the Extender pair via CAT5 / 5e / 6 UTP cable
  • Extend video signal up to 165M away from a Transmitter
  • Support the video resolution up to 1920 x 1080 (Full HD), 1920 x 1200 (WUXGA)
  • Plug-n-play enabled in Windows, Mac, Sun, and Linux platforms
  • No driver needed or software required
European Wallplate VGA Extender with Audio over CATx, EDID, EQ, Phantom Power, EVA-MG20WW

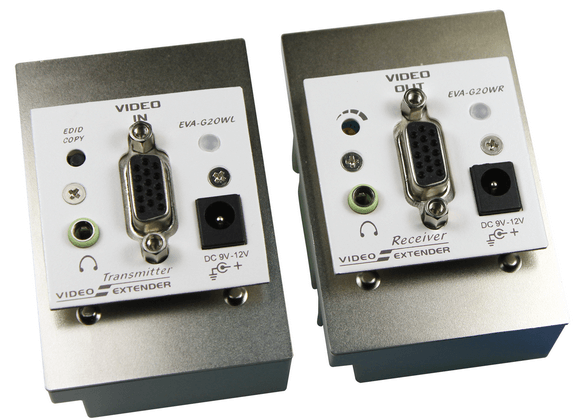

EVA-MG20WW = EVA-G20WL (Transmitter) + EVA-G20WR (Receiver)

European Wallplate VGA Extender, EVA-MG20WW, consists of a Transmitter and a Receiver unit that allows you to extend VGA +Audio signals up to 165 meters away from a Video source by using only a single UTP CAT5/ 5e/ 6 cable increasing the space efficiency. European Wallplate VGA Extender supports most of the popular Windows, Mac, Sun, and Linux operating system.

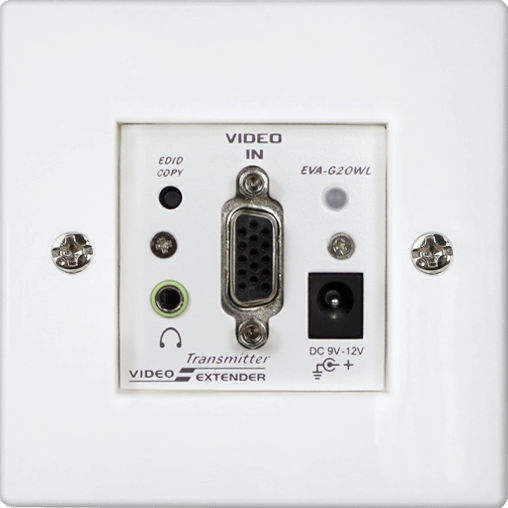

The Transmitter Unit “EDID Copy” feature allows the Unit to read the necessary EDID information from the attached video display and then provides it at all times to the attached computer. If no new EDID information is available from a display, a default profile in the Transmitter Unit is automatically provided instead.

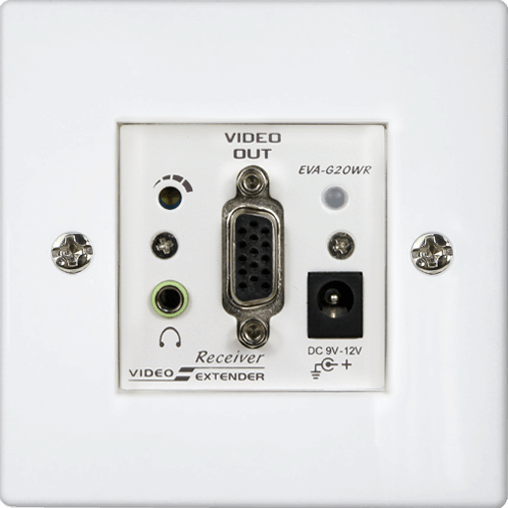

The EQ (Sharpness) adjustment feature on the Receiver Unit allows manually and intuitively adjusting video quality according to the length of CAT5 cable.

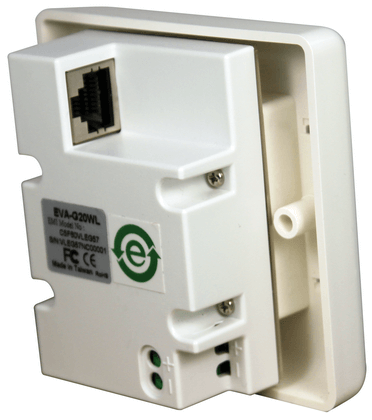

European Wallplate VGA Extender, EVA-MG20WW, supports both DC Jack (front panel) and Terminal Block (rear side of the unit) power supply application. The extender pair requires only a single power supply, which can be plugged in at either end of the link.

European Wallplate VGA Extender-dimension
  • Connect the Extender pair via CAT5 / 5e / 6 UTP cable
  • Extend video signal up to 165M away from a Transmitter
  • Support the video resolution up to 1920 x 1080 (Full HD), 1920 x 1200 (WUXGA)
  • Plug-n-play enabled in Windows, Mac, Sun, and Linux platforms
  • No driver needed or software required
  • EDID Copy function makes the best resolution presenting for your application
  • EQ (Sharpness) adjustment for optimal signal clarity
  • Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA,…Full HD, WUXGA
  • Wall-mount design for space-saving and easy installation
  • Easy to get and install the CATx cable at lower cost
  • Ideal for public broadcasting, exhibits, retail stores, courtrooms, stock tickers, etc.

Model Name

EVA-MG20WW

  Video Resolution (max.)

  1920 x 1080 (Full HD)

  Input / Output

  HDB15 x1, RJ-45 x1 + Audio jack x1 / HDB15 x1, RJ-45 x1

  LED

  Power / EDID Copy x1(Dual Color)

  Extension Distance

  165M

  Enclosure

  Plastic

  Power Supply

  DC 9-12V
