2 Ports HDMI KVM Switch with USB 2.0, Two-way audio, HDCP, MAAG-112
MAAG-112
MAAG-112 2 Ports HDMI KVM Switch supports two-way 3.5mm stereo analog audio, SPEAKER and MIC, as well as USB 2.0 ports to meet most requirements. And there is a buzzer sound effect built-in for operation confirmation. The 2 Ports HDMI KVM Switch is a pure Plug & Play hardware design, no software or driver required.
Rextron KVM switch with USB Hub supports keyboard-mouse operation as well as USB peripheral sharing without any software or driver installation. Dedicated USB 2.0 port design on the rear side of the KVM switch unit suitable for both long-term and temporary USB peripherals access allows users to attach or detach USB devices with ease.

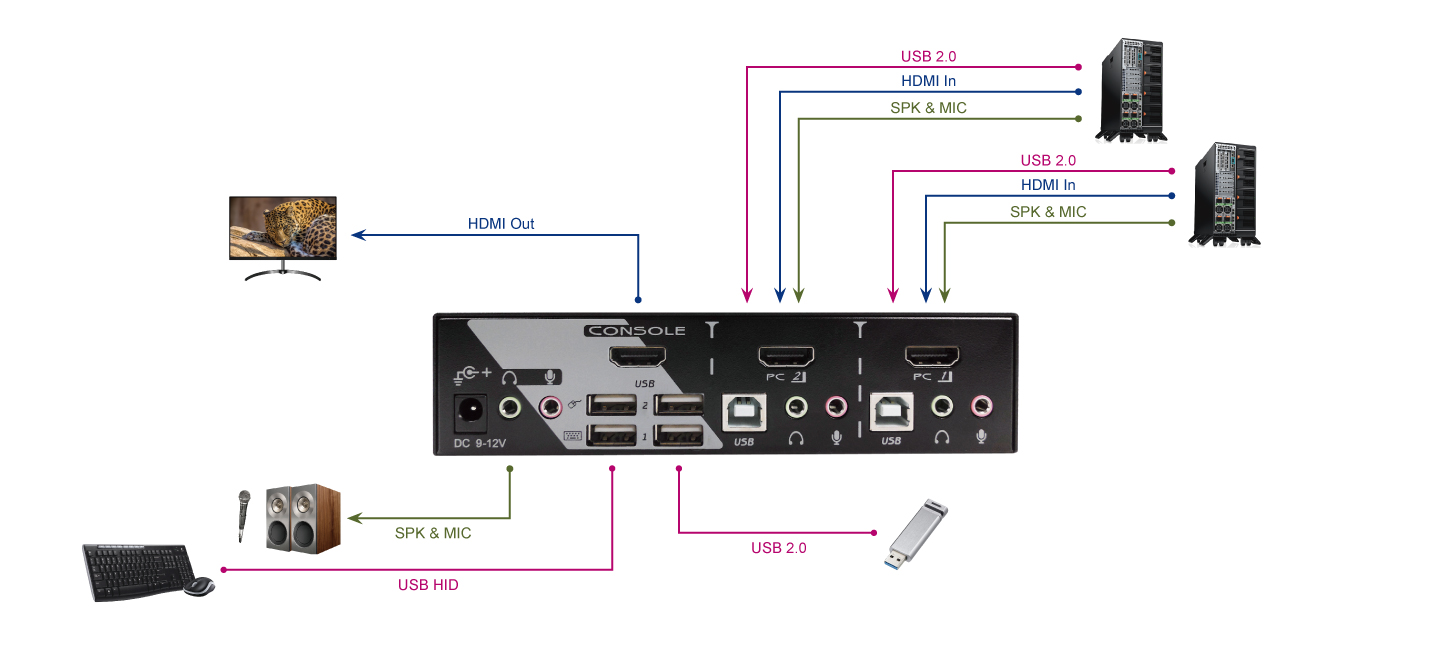

- 2 computers share 4 different USB peripherals ( KB + MS + USB 2.0 Devices)
- Support USB console
- Supports hot plug and un-plug detection and link status-failure detection
- HDCP compliant and Blu-ray ready

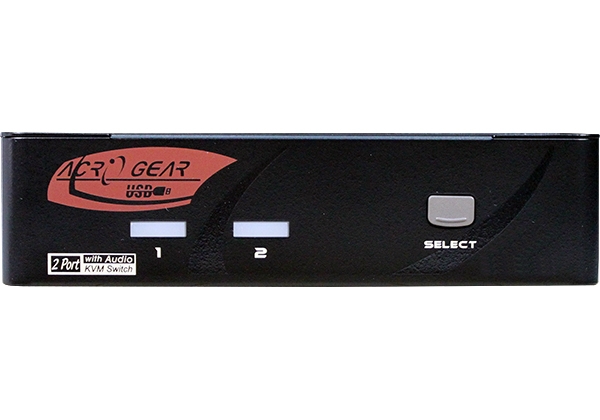

- Front panel pushbuttons for easy computer selection
- Buzzer sound for computer switching confirmation
- Hotkey functions allow easy computer access
- Supports existing VESA and Consumer Electronics Association (CEA) standards
- Screw-free design, the streamlined form factor for new all digital desktop monitors
- Complete interoperability
- Support Audio (Speaker + Mic); through HDMI Type A Female if CPU's audio sent with video over HDMI port
Model Name |
MAAG-112 |
Computer/Server Ports (input) |
HDMI x 4 ( Single Display x 4 PCs ) |
Console Ports (output) |
HDMI x 1 ( Single Display ) |
Video Resolution (Max.) |
1920x1200@60Hz (4:4:4) |
Push Buttons |
Port Selection x 1 |
HDCP Compliance |
HDCP 1.4 |
Control Methods |
Hotkey / Push Button |
LED Indicator (Power / Status) |
Computer Ready x 2 (Green) |
Automatic scan interval |
3, 8, 15, 30 seconds |
Power Supply |
DC 9~12V |
Operation Environment |
0~40°C, Humidity<80% |
Storage Temperature |
-20~60°C |
Enclosure |
Metal |
H x W x D (mm) |
40 x 160 x 100 |
Weight (g) |
580 |
