4-Port Dual-Link DVI Serial KVM Switch with EDID, USB, Two-way Audio
DAKGS-114

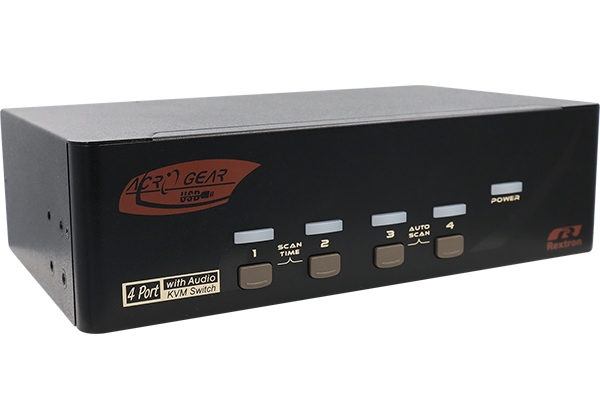

DAKGS-114 DVI Serial KVM Switch lets you control 4 DVI-DL 2560 x 1600 computers with one set of USB keyboard, mouse, and monitor. You can easily switch 4 computers using the user friendly hotkey control function or push button of the KVM switch. Real-time USB HID ports provide you amazing seamless HID switching experience.
Audio function Speaker and Mic allows DVI Serial KVM Switch users to decide whether or not the audio switching follows the computer switching. It is useful if you want to listen to a particular computer's audio signal while operating other computers and is also essential to keep open the two-way voice communication in real-time Streaming PC situation.
RS-232 serial switching function on Dual-Link DVI KVM Switch is especially designed for industrial control and communication purposes to enhance the functionality of KVM and serial devices management and eliminate the need to connect each device to an ASCII terminal or PC.
DVI Serial KVM Switch, DAKGS-114 USB Hub supports not only keyboard mouse operation but also USB 2.0 peripherals sharing without any software or driver installation. Users can either perform computers switching independently or switch computers with USB devices concurrently. Dedicated USB 2.0 ports designed on the rear side of the KVM switch unit suitable for both long-term and temporary USB peripherals access allows users to attach or detach USB devices with ease.
DAKGS-114, DVI Serial KVM Switch, EDID management function enables KVM switch to copy or automatically learn EDID from the connected monitor via EDID push button, which ensures the optimized video output without flickering or black screen issues. Independent 3.5mm stereo analog audio and serial ports are provided to meet the demanding requirements. For your convenience, there is also a buzzer sound effect for operation confirmation.
- Allows 4 Computers Share 1 Set of KVM Console
- DVI-Dual-Link Video Supports Most Popular Resolutions Up to 2560x1600, 2048x2048
- HDCP Pass Through Ensures Uninterrupted Video Playback
- EDID Management, Including EDID Copy / Auto EDID, Ensures Display Compatibility
- Serial RS232 Allows Extensive Data Communication
- USB 2.0 Supports Most USB Devices
- 3.5mm Stereo Audio Ports to Connect with Speaker, Headphone, and Microphone
- Manual-Scan and Auto-Scan Functions
- Support Windows, Mac, Linux, Chrome O.S
- - Front Push Buttons
- - Hotkey Control
Model Name |
DAKGS-114 |
Computer/Server Ports (input) |
DVI x 4 (Single-Display x 4 PCs) |
Console Ports (output) |
DVI x 1 (Single-Display) |
Video Resolution (Max.) |
2560x1600@60Hz ( 4:4:4 ) |
Serial Switch |
RS232 |
Push Buttons |
Port Selection x 4 |
Control Methods |
Hotkey / Push Button |
LED Indicator (Power / Status) |
Computer Ready x 4 (Green) |
HDCP Compliance |
HDCP 1.4 ( Pass Through ) |
Power Supply |
DC 9~12V |
Operation Environment |
0~40°C, Humidity<80% |
Storage Temperature |
-20~60°C |
Enclosure |
Metal |
H x W x D (mm) |
60 x 220 x 130 |
Weight (g) |
1235 |
