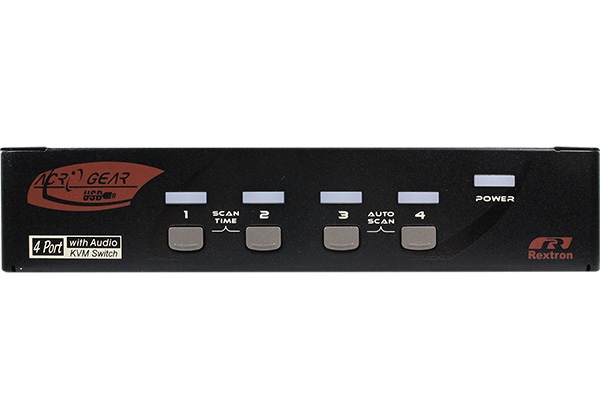

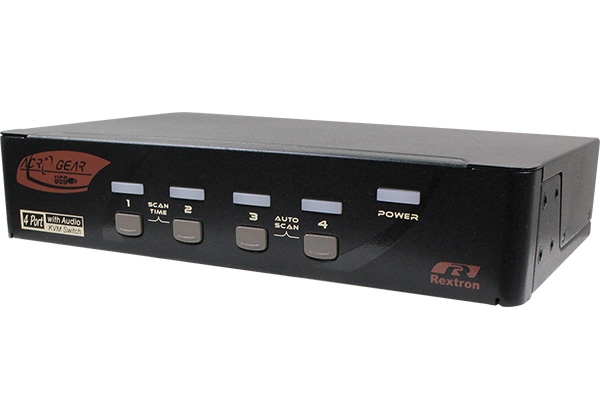

4 Ports Dual-Link DVI KVM Switch with USB 2.0, Two-way Audio, DAKG-114
DAKG-114
DAKG-114, 4 Ports Dual-Link DVI KVM Switch with USB 2.0, Two-way Audio, lets you control four DVI-DL 2560 x 1600 computers with one set of USB Keyboard, Mouse, monitor, and USB Devices. You can easily switch 4 computers using the user friendly hotkey control function or push buttons of the KVM switch. Real-time USB HID ports provide you amazing seamless HID switching experience.
Rextron 4 Ports Dual-Link DVI KVM Switch with USB Hub supports not only keyboard mouse operation but also USB 2.0 peripherals sharing without any software or driver installation. Dedicated USB 2.0 ports designed on the rear side of the KVM switch unit suitable for both long-term and temporary USB peripherals access allows users to attach or detach USB devices with ease.
- 4 computers share up to 4 different USB peripherals ( KB + MS + USB 2.0 Devices)
- Support Video Dual Link with the resolution up to 2560 x 1600
- Unique Tracking System enables the USB devices to operate independently
- USB 2.0 peripheral sharing eliminates the expense of duplicate devices
- Front panel push buttons for easy computer selection
- Rear panel EDID Copy button ensure continuous video playback
- No drivers needed for keyboard and mouse operation
- Support keyboard and mouse plug-n-play
- Buzzer sound for computer switching confirmation
- Hotkey functions allow easy computer access
- Activate Auto Scan by front buttons pressing
- Support Windows and Mac host systems
- No software required
- Support Audio function
- Support USB console
Model Name |
DAKG-114 |
Input Port |
DVI x 4 |
Output Port |
DVI x 1 |
Video Resolution (Max.) |
2560 x 1600 |
Push Buttons |
Port Selection x 1 |
LED Indicator (Power / Status) |
Computer Ready x 4 (Green) |
Automatic scan interval |
3, 8, 15, 30 seconds |
Enclosure |
Metal |
Power Supply |
DC 9~12V |
H x W x D (mm) |
44 x 220 x 130 |
Weight (g) |
X |
