Product Name : 2 Ports Quad Monitor DVI KVM Switch with USB 2.0, Two-way Audio, DAKG-142
Product No : DAKG-142
Read More
Product Description
  • Support USB Console
  • Support high-resolution video up to WQXGA (2560 x 1600)
  • 2 computers share the different USB peripherals (KB + MS + USB Devices)
  • Unique Tracking System enables the USB (or Audio) devices to operate independently
  • Support keyboard and mouse plug-n-play
  • No software required
  • Support Windows and Mac host systems
  • Quad View
  • USB2.0
  • EDID Management
  • HDCP 1.4

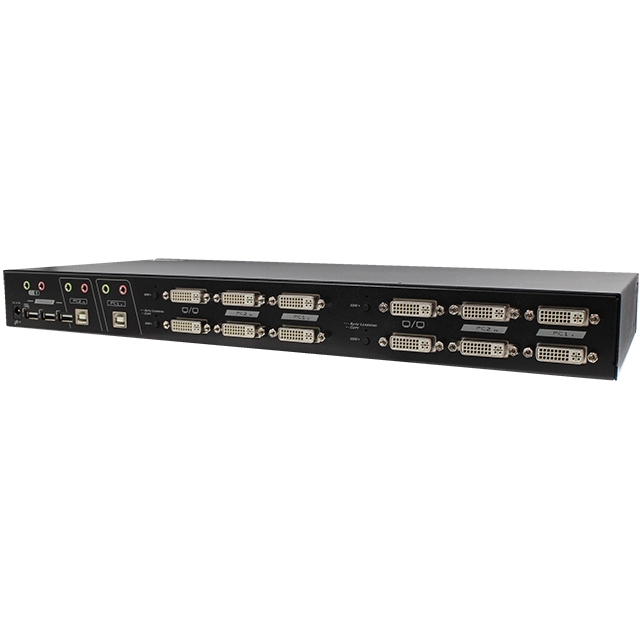

DAKG-142, Quad Monitor DVI KVM Switch, allows users to control two DVI computers with one set of keyboard, mouse, and 4 DVI monitors. This DVI-DL KVM Switch supports resolutions up to 2560 x 1600, features an 3.5mm audio ports and USB 2.0 port. The Real-time USB HID ports give you an amazing seamless HID switching experience.

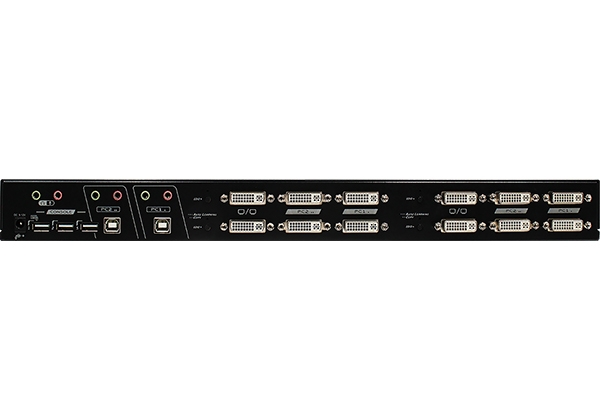

Rextron Quad Monitor DVI KVM switch with USB Hub supports keyboard-mouse operation as well as USB 2.0 peripheral sharing without any software or driver installation. Dedicated USB ports design on the rear side of the quad monitor KVM switch unit suitable for both long-term and temporary USB peripherals access allows users to attach or detach USB device with ease.

Rextron KVM switch Quad Monitor function supports not only the mainstream but also the latest PC graphics cards for multiple monitor setups to extend your desktop and expand the work area across displays, which help enhance productivity and is ideal for content creators, graphic designers, CAD and CAM designers, and users in educational and financial institutions to work efficiently. It allows every user to complete his projects, enjoy home entertainment, or playing video games with vivid visuals, accurate color, and sharp details. Moreover, users can connect it with quad high-definition monitors and decide to duplicate or extend the desktop to the other monitors.
  • Support 4 monitor displays excellent for Gamers and CAD/CAM designers
  • Support USB Console
  • Support high resolution video up to UXGA (1600 x 1200) / Full HD (1920 x 1080) / WUXGA (1920 x 1200)
  • Support high-resolution video up to WQXGA (2560 x 1600)
  • 2 computers share the different USB peripherals (KB + MS + USB Devices)
  • Unique Tracking System enables the USB (or Audio) devices to operate independently

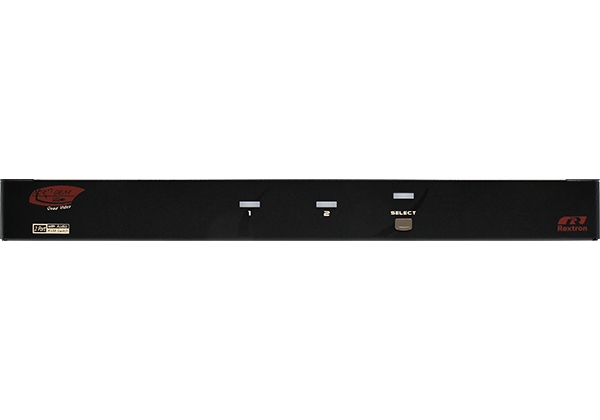

  • Front panel pushbuttons and hotkey functions for easy computer selection
  • Support keyboard and mouse plug-n-play
  • Buzzer sound for computer switching confirmation
  • Selectable Scan Time interval
  • No software required
  • Support Windows and Mac host systems
  • Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, Full HD, WQXGA system

Model Name

DAKG-142

  Input Port

  DVI x 8 (Quad-View x 2 PCs)
  USB 2.0 Type B x 2
  Audio Jack in x 2
  Audio Jack out x 2

  Output Port

  DVI x 4 (Quad-View)
  USB Type A x 4
  Audio Jack in x 1
  Audio Jack out x 1

  Video Resolution (Max.)

  2560 x 1600

  Push Button

  Port Selection x 1

  LED Indicator (Power / Status)

  Computer Ready x 2 (Green)
  Computer Selected x 2 (Red)

  Automatic scan interval

  3, 8, 15, 30 seconds

  Enclosure

  Metal

  Power Supply

  DC 9~12V

  H x W x D (mm)

 44 x 438 x 180

  Weight (g)

  x
