2 Ports Dual-Link DVI KVM Switch with USB 2.0, Two-way Audio, DAKG-112
DAKG-112

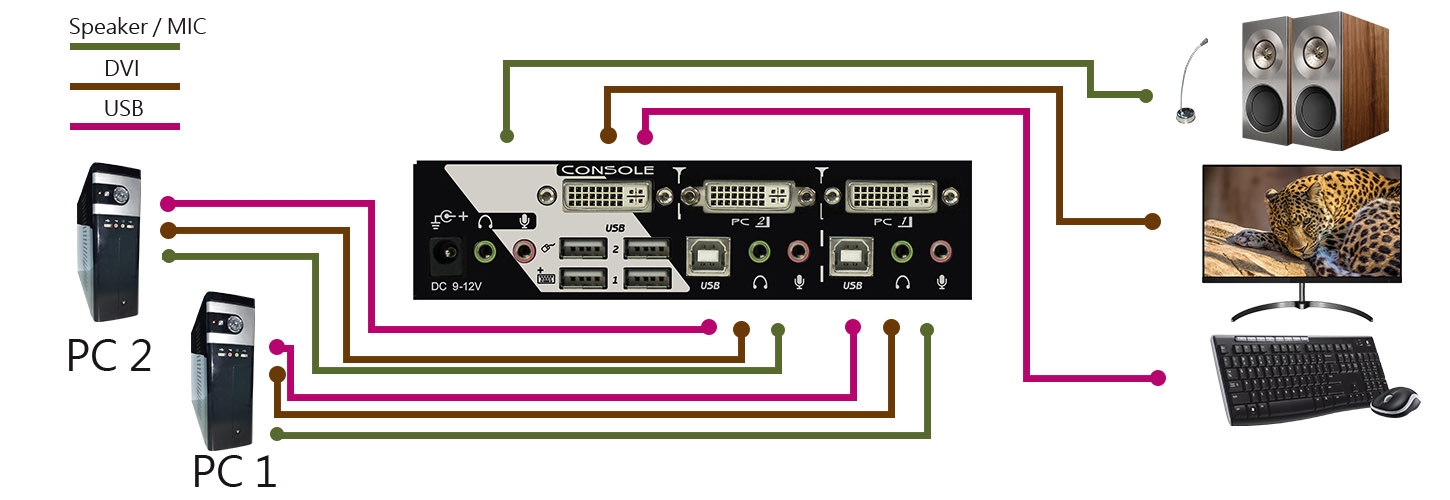

DAKG-112, 2 Ports Dual-Link DVI KVM Switch with USB 2.0, Two-way Audio, lets you control 2 DVI-DL 2560 x 1600 computers with one set of USB Keyboard, Mouse, monitor, and USB Devices. You can easily switch 2 computers using the user friendly hotkey control function or push buttons of the KVM switch. Real-time USB HID ports provide you amazing seamless HID switching experience.
Rextron 2 Ports Dual-Link DVI KVM Switch with USB Hub supports not only keyboard mouse operation but also USB 2.0 peripherals sharing without any software or driver installation. Dedicated USB 2.0 ports designed on the rear side of the KVM switch unit suitable for both long-term and temporary USB peripherals access allows users to attach or detach USB devices with ease.
- 2 computers share up to 4 different USB peripherals ( KB + MS + USB 2.0 Devices)
- Support Video Single Link with the resolution up to 2560 x 1600
- Unique Tracking System enables the USB devices to operate independently
- USB 2.0 peripheral sharing eliminates the expense of duplicate devices
- Rear panel EDID Copy button ensure continuous video playback

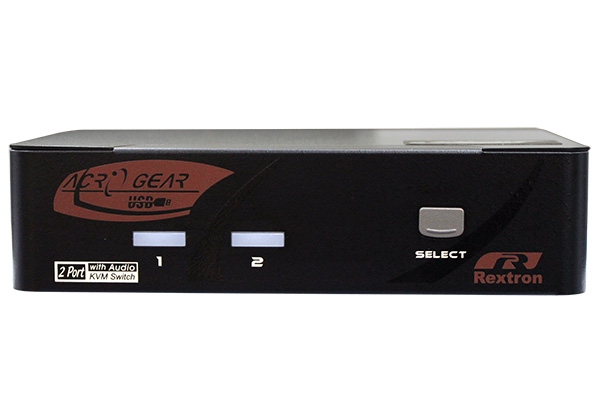

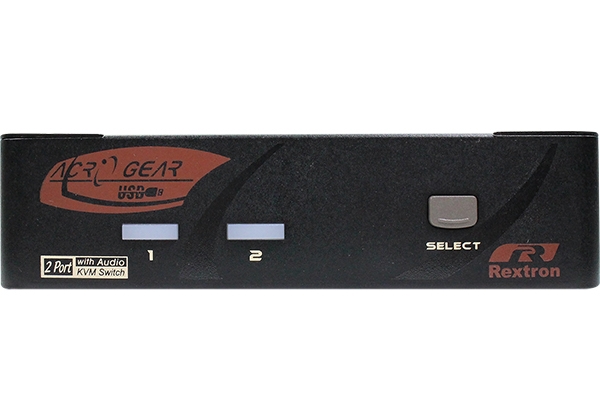

- Front panel pushbuttons for easy computer selection
- No drivers needed for keyboard and mouse operation
- Support keyboard and mouse plug-n-play
- Buzzer sound for computer switching confirmation
- Hotkey functions allow easy computer access
- Support Windows and Mac host systems
- No software required
- Support Audio function
- Support USB console
|
Model Name |
DAKG-112 |
|
Computer/Server Ports (input) |
DVI x 2 ( Single Display x 2 PCs ) |
|
Console Ports (output) |
DVI x 1 ( Single Display ) |
|
Video Resolution (Max.) |
2560 x 1600 @ 60Hz (4:4:4) |
|
Push Buttons |
Port Selection x 1 |
|
HDCP Compliance |
HDCP 1.4 |
|
Control Methods |
Hotkey / Push Button |
|
LED Indicator (Power / Status) |
Power x 1 |
|
Automatic scan interval |
3, 8, 15, 30 seconds |
|
Power Supply |
DC 9~12V |
|
Operation Environment |
0~40°C, Humidity<80% |
|
Storage Temperature |
-20~60°C |
|
Enclosure |
Metal |
|
H x W x D (mm) |
44 x 160 x 130 |
|
Weight (g) |
670 |
