VGA KVM Extender over CAT.x with USB, 200M
EXC-2011
VGA CAT5 KVM Extender, 1080p@200M, RGB Skew Correction, Mask Hotkey Unit Cascading, EXC-2011

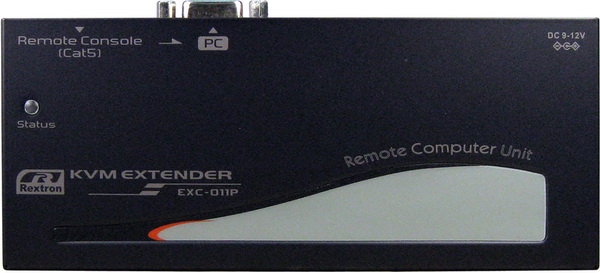

EXC-2011 = EXC-201S (Console) + EXC-011P (PC)

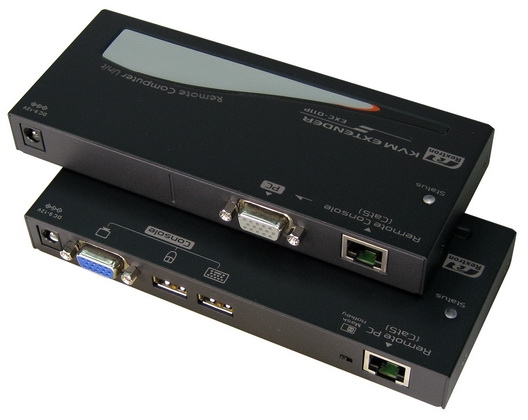

VGA CAT5 KVM Extender, EXC-2011, consists of a Console and a Computer unit that allows you to extend VGA and USB signals up to 200 meters (656 feet) over CATx Cabling. Unique design for RGB skew/ Equalizer (sharpness) / gain (brightness) adjustment via hotkeys are applicable for the best video quality.
Video Adjustment
EXC-2011 = EXC-201S (Console) + EXC-011P (PC)
VGA CAT5 KVM Extender, EXC-2011, consists of a Console and a Computer unit that allows you to extend VGA and USB signals up to 200 meters (656 feet) over CATx Cabling. Unique design for RGB skew/ Equalizer (sharpness) / gain (brightness) adjustment via hotkeys are applicable for the best video quality.
Video Adjustment
To compensate the lengths of CAT 5 cable, there 16 levels on coarse tune and up to 128/256 scales on fine tune are available for adjustment on the equalizer and gain. And, there are 8 levels on coarse tune and 16/32 scales on fine tune are available for skew adjustment on blue, green and red.
Cascade Configuration: The dedicated Mask Hotkey function
Cascade Configuration: The dedicated Mask Hotkey function

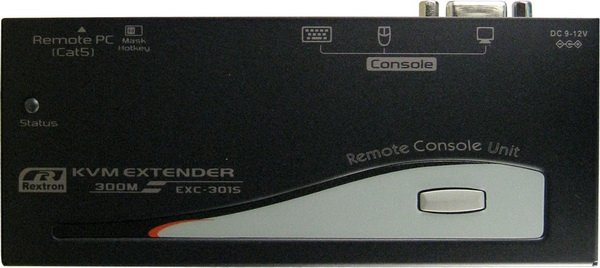

VGA CAT5 KVM Extender, EXC-2011 Mask Hotkey Switch located at the rear panel of Console Unit can be slid OFF/ON to switch hotkey control between the Computer (Default setting) and KVM Switch (Cascading) accordingly.
The hotkey commands of KVM Switches vary among models, which may cause hotkey errors, unwanted configurations between the Extender Unit and the mixed types of KVM Switches that connect to each other. To prevent from any conflict via hotkey commands in the cascade configuration, Hotkey Mask feature eliminates or simplifies all the hotkey control barriers caused by mixed combinations of KVM Extender and KVM Switch in cascading architecture; through the mask ON, users can bypass the Extender Unit and directly apply the KVM Switch’s built-in hotkey commands to access and configure the KVM Switch. You can easily expand the computers control by adding the Extender with KVM Switch.
The hotkey commands of KVM Switches vary among models, which may cause hotkey errors, unwanted configurations between the Extender Unit and the mixed types of KVM Switches that connect to each other. To prevent from any conflict via hotkey commands in the cascade configuration, Hotkey Mask feature eliminates or simplifies all the hotkey control barriers caused by mixed combinations of KVM Extender and KVM Switch in cascading architecture; through the mask ON, users can bypass the Extender Unit and directly apply the KVM Switch’s built-in hotkey commands to access and configure the KVM Switch. You can easily expand the computers control by adding the Extender with KVM Switch.
- Connect the KVM Extender pair via Category 5 / 5e / 6 UTP cable
- Remotely locate the keyboard, mouse and monitor up to 300 meters away from a computer
- Support high-resolution video up to 1920 x 1200 (WUXGA), 1920 x 1080 (Full HD)
- Support USB console
- Support the surge protection
- Support the HID standard keys
- Equalizer (sharpness) / gain (brightness) adjustment via hotkeys for optimal video quality
- Unique design for convenient RGB skew adjustment via hotkeys for the best video quality
- Synchronize the video resolution between the attached computers via hotkeys
- Dedicated Mask Hotkey function enables the direct control in cascading
- Simple LED indication makes operation userfriendly
- Locate the computer away from your desk and work area, saving you valuable space
- Allow two users to share one or two computers both in local and remote areas
- Applicable for one console to manage two computers locally and remotely (varied depending on models)
- Beep confirmation for key control makes the operation easier and cross-checked
- Support most of the mice such as M/S IntelliMouse (Pro), Explorer, Optical, etc.
- Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA….WUXGA system
|
Model Name |
EXC-2011 |
|
Max. Video Resolution |
WUXGA (1920 x 1200) / UXGA (1600 x 1200) |
|
Extension Distance |
200M |
|
Unit Connection |
CAT5-RJ45 Female |
|
Console Unit Connectors |
Console Side |
|
Computer Unit Connectors |
Console Side |
|
Push Button |
Control Status Selection |
|
Hotkey Control |
Yes |
|
Weight (g) |
305 - 315 |
|
Power Consumption (Max.) |
External Power Adapter DC 9~12V, 600mA |
|
Dimensions H x W x D (mm) |
20 x 156 x 65 |
