Product Name : 4 Ports 4K HDMI Full-Screen Split View KVM Switch with Seamless Switch, PIP, Quad-View
Product No : QSKEM-2014
Read More
Product Description
  • Allows 4 Computers Sharing 1 Set of KVM Console
  • 4K Video Supports Most Popular Resolution Up to 4K and 16:9 / 21:9 / 32:9 Aspect Ratios
  • Multi-View Modes Allows 4 Computers Shown on the Monitor at the Same Time
  • Unique Full-Frame Multi-View Technology Ensures Uncut, Undistorted, Pixel-to-Pixel Matched Views
  • 1+3 & 3+1 Modes with 21:9 Monitor Empowers Four 16:9 Views ( Undistorted / Uncut )
  • Mouse Roaming Allows the User to Switch Ports by Moving Mouse Cursor across Screen Borders
  • Unique Linear Tracking Mouse Roaming Ensures Predictable Mouse Location
  • Seamless Switch among 4 Computer Ports ( < 1 Second )
  • HDCP 1.4 Compliance Ensures Uninterrupted Video Playback
  • Supports Windows, Linux, Chrome O.S
Flexible Display Modes ( Layouts ) for Various Scenarios
  • Single-View ( Full-Screen )
  • Quad-View ( Linear Tracking Mouse Roaming )
  • PiP Mode ( Adjustable View Size / Transparency )
  • 1+3 Mode ( Linear Tracking Mouse Roaming )
  • 3+1 Mode ( Linear Tracking Mouse Roaming )
  • Quad View
  • 4K Scaler
  • USB2.0
  • USB HID
  • Hotkey Control
  • Roaming Mouse
  • EDID Management
  • HDCP 1.4
4 Ports Full-Screen Split View KVM Switch with PiP, PbP, Roaming Mouse, Seamless Switching, QSKEM-2014

QSKEM-2014, Split View KVM, lets you control 4 HDMI computers with one set of USB Keyboard, Mouse, and Monitor. You can easily switch 4 computers via front panel push buttons, hotkey control, and roaming mouse functionalities. Split View KVM Switch offers unique split screen of variable display patterns that include PiP, Full-View, Quad-View, and PbP (1+3/ 3+1) windows.
Split View KVM-PiP/PbP

Rextron Split View KVM Switch|Quad View and Mouse Roaming Function



Full-Screen Split View KVM Switch supports not only keyboard mouse operation but also USB 2.0 peripherals sharing without any software or driver installation. QSKEM-2014 supports two-way 3.5mm stereo analog audio, SPEAKER and MIC. A unique tracking system enables the Audio devices to be operated independently or concurrently. It is useful if you want to listen to audio signal from one particular computer while operating another computer.
Split View KVM-PiP/PbP-IO

QSKEM-2014, Split View KVM, allows users to operate 4 computers and select 1/ 2/ 4 PC video source(s) to be displayed on one monitor. The built-in PIP/ PBP video processor can form PIP/ PBP image with any kind of display and provide various video layouts and controls. Rextron PIP/PBP KVM switch with scaling function provides multi-window setups with adjustable size, position, and transparency layout on 16:9/ 21:9/ 32:9 monitors. QSKEM-2014 allows split screen presentation from four different video sources, supports fast switching, forms undistorted uncut image, and keeps the aspect ratio in multi-window setups.

Rextron Split View KVM Switch|PbP and Mouse Roaming Function


Rextron Split View KVM Switch|PiP with Instant Switching Function
>

Full-Frame PBP function
The Full-Frame PBP function means the video sources can be simultaneously displayed on one monitor in full screen (taking up your entire screen) without any distortion, black borders or downgrading the resolution. The major defect of the KVM PBP function is the picture compression or the black stripes constantly showing on the LCD screen, which greatly affects the visual experience. Manufacturers usually change the aspect ratio or compress the images to fix such issues. Rextron unique Pixel-to-Pixel technology ensures multi-view with full-screen features on 16:9/ 21:9/ 32:9 monitors.

Split View KVM-mouse roaming

Mouse Roaming Functionality
When PCs are connected to the KVM Switch, users can easily switch the PCs by moving the mouse cursor crossing the screen border smoothly and seamlessly among 4 computers, which allows users to switch the Keyboard, Mouse, and USB devices to another PC without hotkey or button pressing.
  • Allows 4 Computers Sharing 1 Set of KVM Console
  • 4K Video Supports Most Popular Resolution Up to 4K and 16:9 / 21:9 / 32:9 Aspect Ratios
  • Multi-View Modes Allows 4 Computers Shown on the Monitor at the Same Time
  • Unique Full-Frame Multi-View Technology Ensures Uncut, Undistorted, Pixel-to-Pixel Matched Views
  • 1+3 & 3+1 Modes with 21:9 Monitor Empowers Four 16:9 Views ( Undistorted / Uncut )
  • Mouse Roaming Allows the User to Switch Ports by Moving Mouse Cursor across Screen Borders
  • Unique Linear Tracking Mouse Roaming Ensures Predictable Mouse Location
  • Display Modes Easy Configurations via Front Push Buttons
  • Seamless Switch among 4 Computer Ports ( < 1 Second )
  • Dual-Interface ( HDMI+DP ) & DP Models Available
  • 3.5mm Speaker and Microphone Switching Covers Most Audio Applications
  • HDCP 1.4 Compliance Ensures Uninterrupted Video Playback
  • Supports Windows, Linux, Chrome O.S
Flexible Display Modes ( Layouts ) for Various Scenarios
  • Single-View ( Full-Screen )
  • Quad-View ( Linear Tracking Mouse Roaming )
  • PiP Mode ( Adjustable View Size / Transparency )
  • 1+3 Mode ( Linear Tracking Mouse Roaming )
  • 3+1 Mode ( Linear Tracking Mouse Roaming )

Model Name

QSKEM-2014

  Computer/Server Ports (input)

HDMI x 4 (Single Video x 4 PCs)
USB 2.0 Type B x 4
3.5mm Speaker Jack x 4 (In)
3.5mm Microphone Jack x 4 ( Out )

  Console Ports (output)

HDMI x 1
USB 2.0 Type A x 2 (Rear)
USB HID Type A x 2 (Rear)
3.5mm Speaker Jack x 1 (Out)
3.5mm Microphone Jack x 1 ( In )

  Video Resolution (Max.)

3840 x 2160@30Hz ( 4:4:4 ) ( 16:9 )
2560 x 1440@60Hz ( 4:4:4 ) ( 16:9 )
1920 x 1080@60Hz ( 4:4:4 ) ( 16:9 )

2560 x 1080@60Hz ( 4:4:4 ) ( 21:9 )
3440x1440@50Hz ( 4:4:4 ) ( 21:9 )
3840x1600@30Hz ( 4:4:4 ) ( 21:9 )

3840x1080@60Hz (4:4:4 ) ( 32:9 )

  Serial Control

RJ11 x 1

  Push Buttons

Port Selection x 4
Status Function x 1
Swap/Size x 1
Multiview/Monitor x 1
Flip(Mirror)/Layout  x 1

  Control Methods

Mouse Roaming / Hotkey / Push Button / Serial

  LED Indicator (Power / Status)

PC-Ready / PC- Select x 4
System Status x 1

  Display Modes ( Layouts )

Single-View / Quad-View / PiP Mode
/ 1+3 Mode / 3+1 Mode

  Unique Functions

Full-Frame Multiview
Seamless Switch ( less than 1s )
Support 16:9, 21:9, 32:9 Displays

  HDCP Compliance

HDCP 1.4

  HDCP Engine

Yes

  Power Supply

DC 9~12V

  Operation Environment

0~40°C, Humidity<80%

  Storage Temperature

-20~60°C

  Enclosure

Metal

  H x W x D (mm)

40 x 220 x 130

  Weight (g)

1083

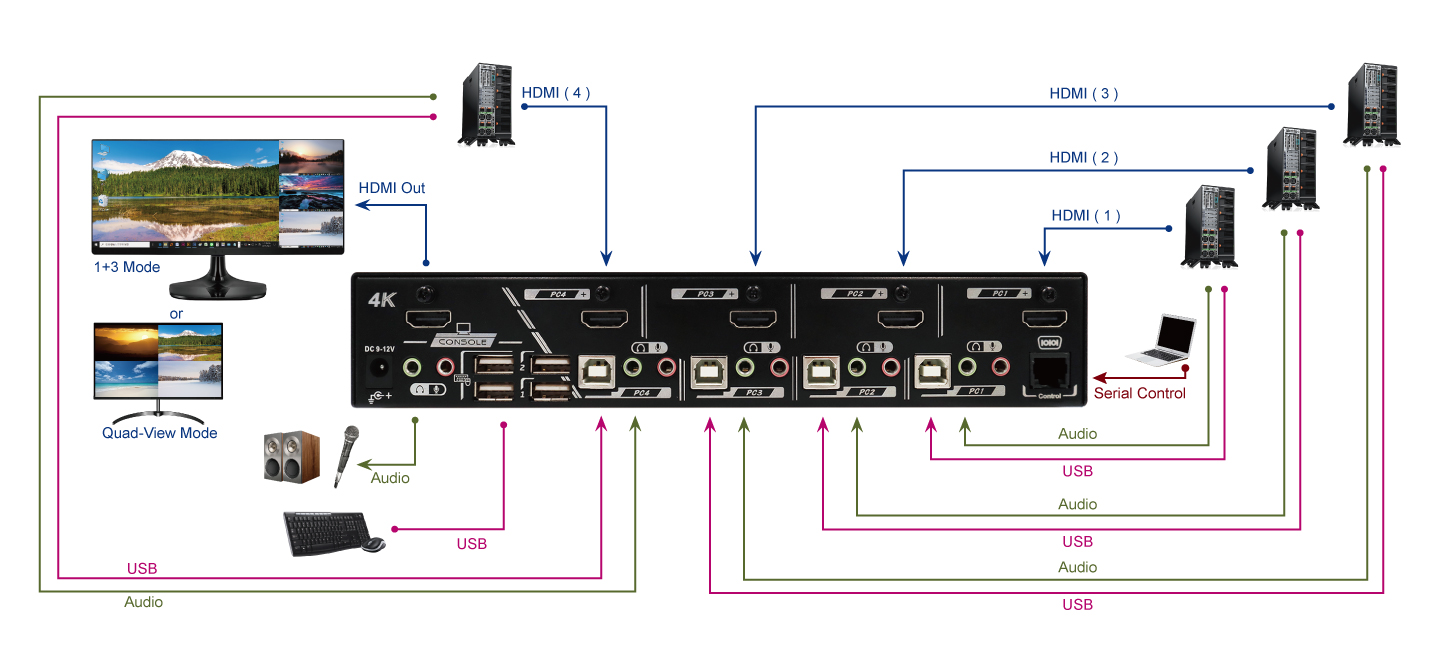

4 Ports Full-Screen Split View KVM Switch with PiP and PbP - 1
